2-10
GV3000/SE 230 VAC 30-100 HP Drive, Hardware Reference Version 6.04

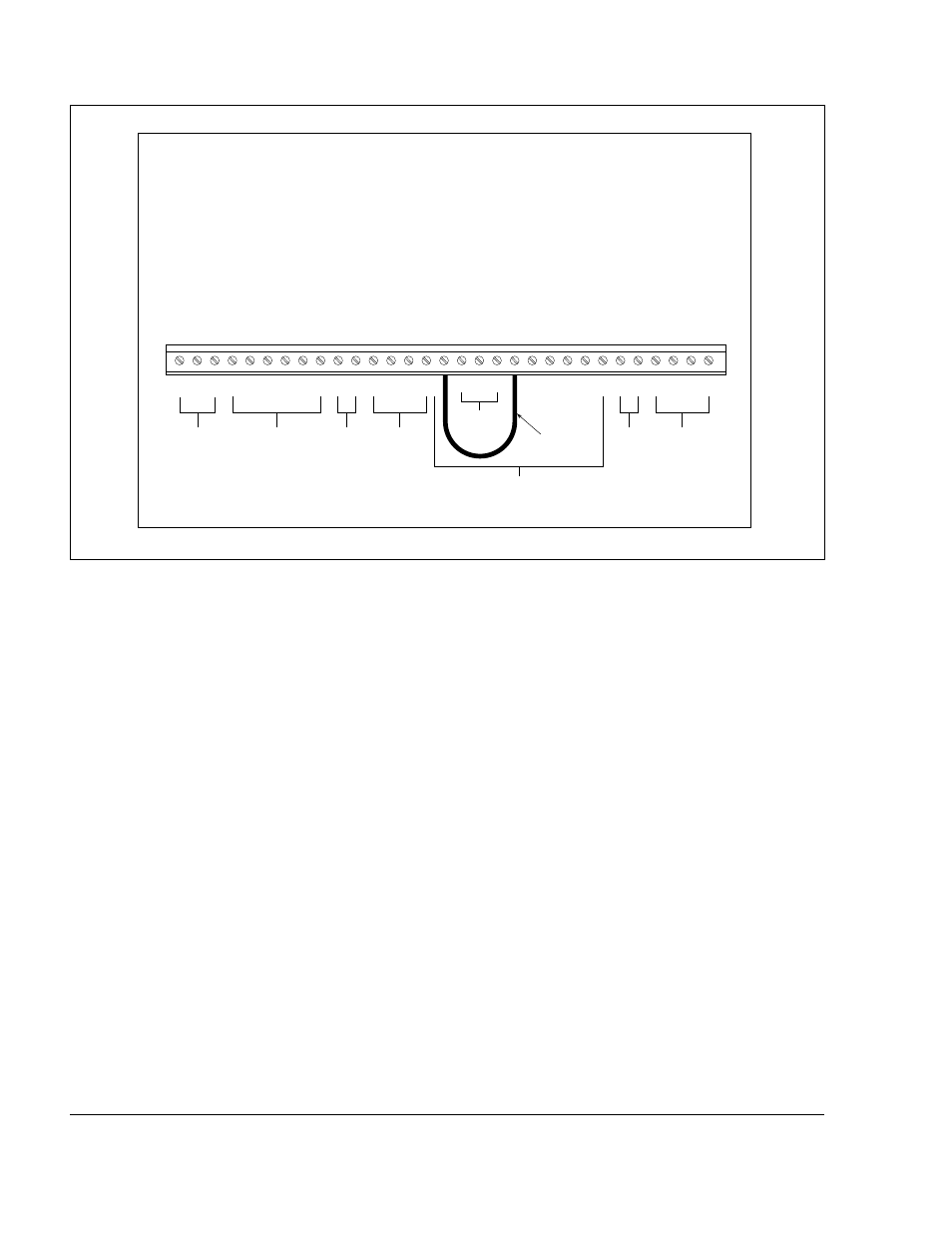

Figure 2.7 - Typical Terminal Strip Connections
2.4.3 RS-232 Communication Port
The Regulator board contains a 9-pin D-shell RS-232 communication port (J8). This
port provides RS-232 communication between the GV3000/SE drive and a personal
computer running the Control and Configuration (CS3000) software. See figure 2.4.
Refer to instruction manual D2-3348, for more information about the CS3000
software.
2.4.4 Option Board Connector
The flat-ribbon cable connector (J3) on the left side of the Regulator board is a
parallel bus connection port that provides a means of attaching optional boards
such as the DeviceNet Option board, the RMI board, or the AutoMax Network
Option board, or similar boards to the GV3000/SE drive. See figure 2.4. The option
board is mounted below the Regulator board inside the drive. Refer to the appropriate
board instruction for more information. Refer to section 2.5 of this manual for more
information on optional drive kits.
2.4.5 Operator Interface Module Connector
The flat-ribbon connector J7 provides a means of attaching the optional Operator
Interface Module (OIM). The OIM is available for use as a remote keypad for the
GV3000/SE drive.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 17 18 19 21 22 23 24 25 26 27 28 29 30 31
16 20
TX RX REGULATOR COMMON +15 VDC PHASE A PHASE A NOT PHASE B PHASE B NOT REGULATOR COMMON ANALOG METER OUTPUT REGULATOR COMMON ISOLATED REFERENCE VOLTAGE VDC SPEED REFERENCE mA SPEED REFERENCE ISOLATED REFERENCE GND +24 VDC DIGITAL INPUT 8 (REMOTE/LOCAL) DIGITAL INPUT 7 (RAMP 1/RAMP 2) DIGITAL INPUT 6 (FORWARD/REVERSE) FUNCTION LOSS RUN/JOG RESET STOP START +24 VDC COMMON SNUBBER RESISTOR BRAKING SIGNAL +24 VDC COMMON N.C. RELAY CONTACT N.C. RELAY COMMON N.O. RELAY CONTACT N.O. RELAY COMMON
RS-232
CONNECTIONS
ENCODER
CONNECTIONS
ANALOG
OUTPUT ANALOG
SPEED
REFERENCE
SNUBBER
BRAKING
STATUS
RELAYS
DIGITAL INPUTS
(ISOLATED 24 VDC)
CONFIGURABLE
Factory Installed
