About the drive – Rockwell Automation GV3000/SE AC Drive 30-100HP, 230VAC V6.04 Hardware Ref, Install, Troubleshooting User Manual
Page 17
2-3
About the Drive
▲
▲
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
ENTER
STOP
RESET
START
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
.
2
3
4
6
5
1
7
2.3 30-100 HP GV3000/SE Drive Components and Locations
The 30-100 HP GV3000/SE drives have the following main components. The
identification numbers provided correspond to the number used in figures 2.2 and
2.3. Replacement parts are listed in chapter 9.
1. Fan Assembly
2. Membrane Switch (Keypad/Bracket)
3. Regulator Printed Circuit Board
4. Base Board (PISC Board)
5. Bus Capacitor
6. Internal Fan Assembly.
7. Cover

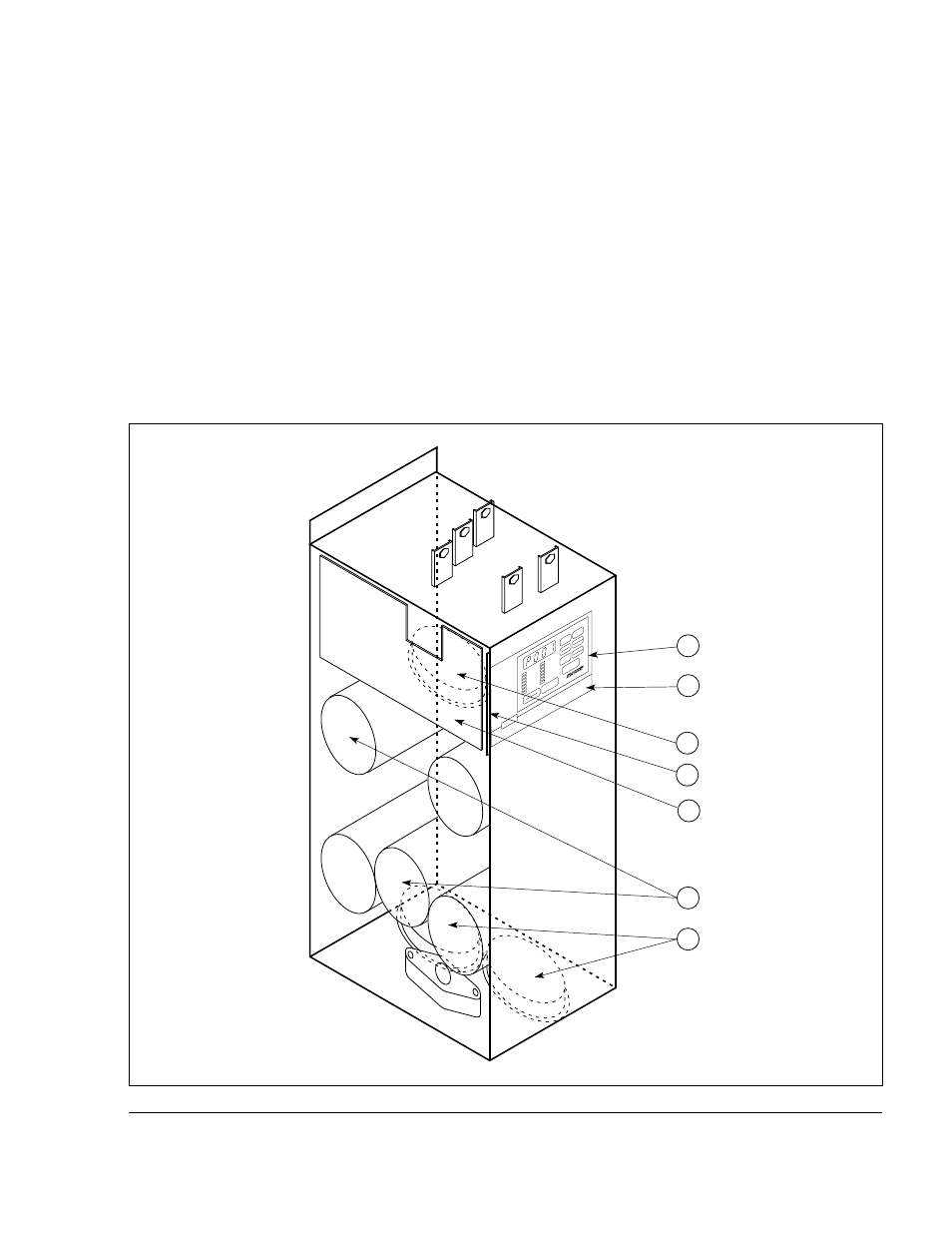

Figure 2.2 - 30 to 50 HP Drive Components and Locations
