Use the following steps to install the terminal base on a wall or panel.

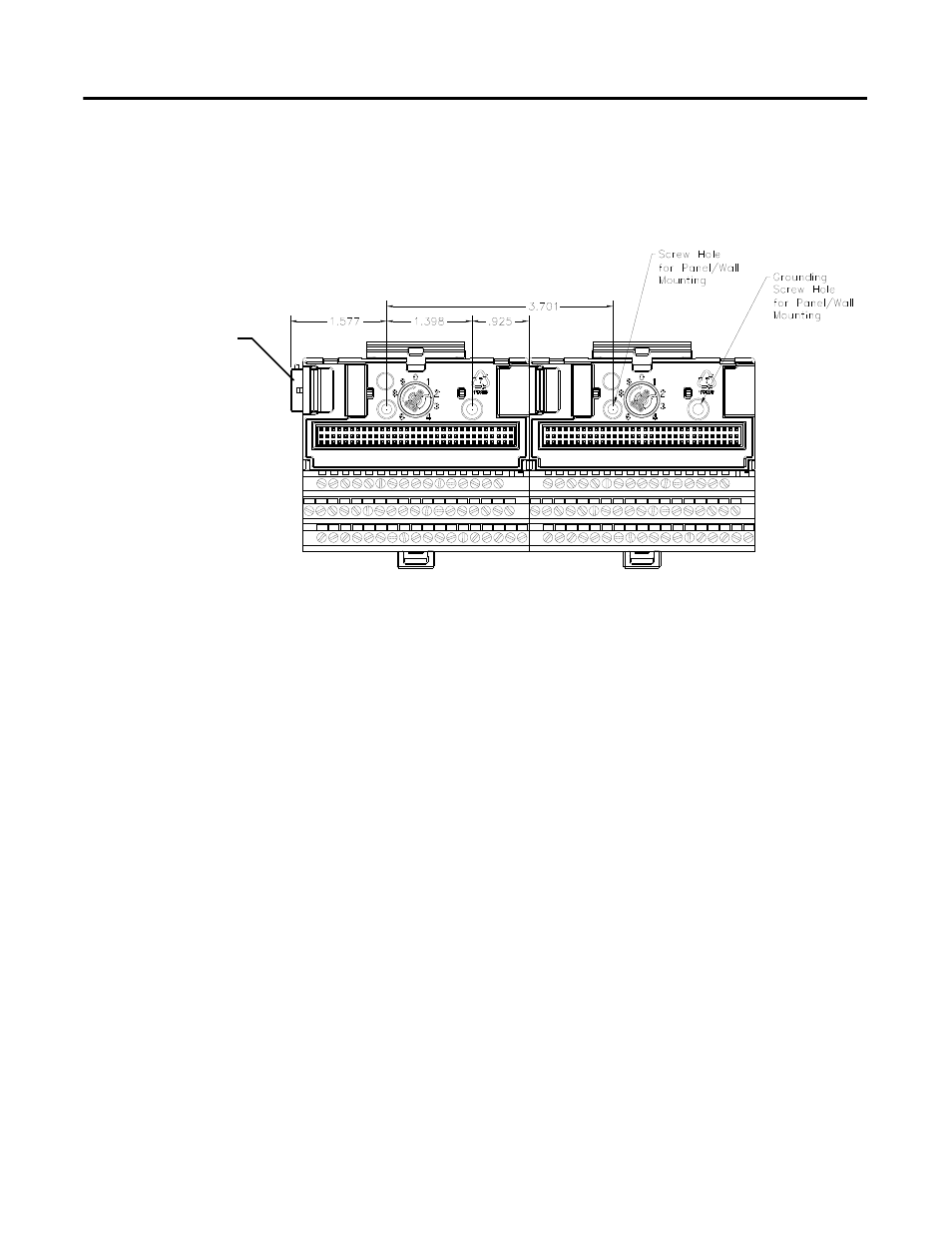

1. Lay out the required points on the wall/panel as shown in the drilling
dimension drawing below.
2. Drill the necessary holes for the #6 self-tapping mounting screws.
3. Secure the terminal base unit using two #6 self-tapping screws.
4. To install another terminal base unit, retract the side connector into the
base unit. Make sure it is fully retracted.
5. Position the terminal base unit up tight against the neighboring terminal
base. Make sure the hook on the terminal base slides under the edge of
the terminal base unit.
6. Gently push the side connector into the side of the neighboring terminal
base to complete the backplane connection.
7. Secure the terminal base to the wall with two #6 self-tapping screws.
Connecting Wiring for Your
Module
Wiring to the module is made through the terminal base unit on which the
module mounts. The XM-361 and XM-362 modules are compatible only with
the XM-944 terminal base unit, Cat. No. 1440-TB-E.
Side Connector
