XM-361 and XM-362
Module Components
The XM-361 and XM-362 consist of a terminal base unit and an instrument
module. The XM-361 and XM-362 Temperature modules and the XM-944
Temperature Terminal Base are shown below.

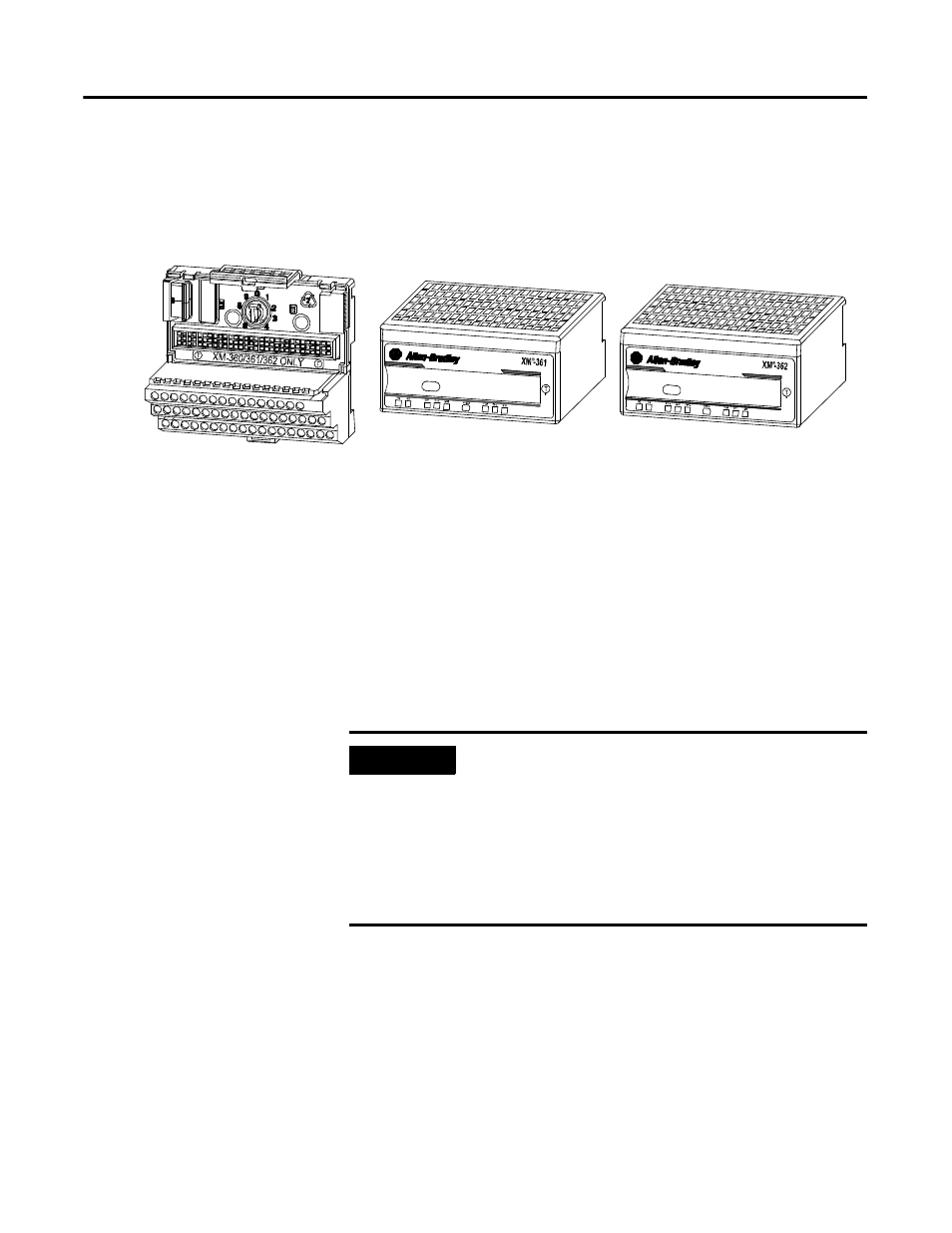

Figure 1.1 XM-361/362 Module Components
• XM-944 Temperature Module Terminal Base - A DIN rail mounted
base unit that provides terminations for all field wiring required by XM
Temperature modules, including the XM-361 and XM-362.
• XM-361/362 Temperature Module - The module mounts on the
XM-944 terminal base via a keyswitch and a 96-pin connector. The
module contains the measurement electronics, processors, and serial
interface port for local configuration.
TEMPERATURE
1440-TUN06-00RE
ISOLATED TEMPERATURE
1440-TTC06-00RE
XM-944 Temperature Module Terminal Base Unit
Cat. No. 1440-TB-E
XM-361 Universal Temperature Module
Cat. No. 1440-TUN06-00RE
XM-362 Isolated Thermocouple Temperature Module
Cat. No. 1440-TTC06-00RE
IMPORTANT
Up to two XM-441 Expansion Relay modules may be
connected to the XM-361 or XM-362 module via the
XM-944 terminal base.
When connected to the module, the Expansion Relay
modules simply "expand" the capability of the XM-361 or
XM-362 by providing a total of up to eight relays. The
Temperature module controls the operation of the
Expansion Relay modules.
