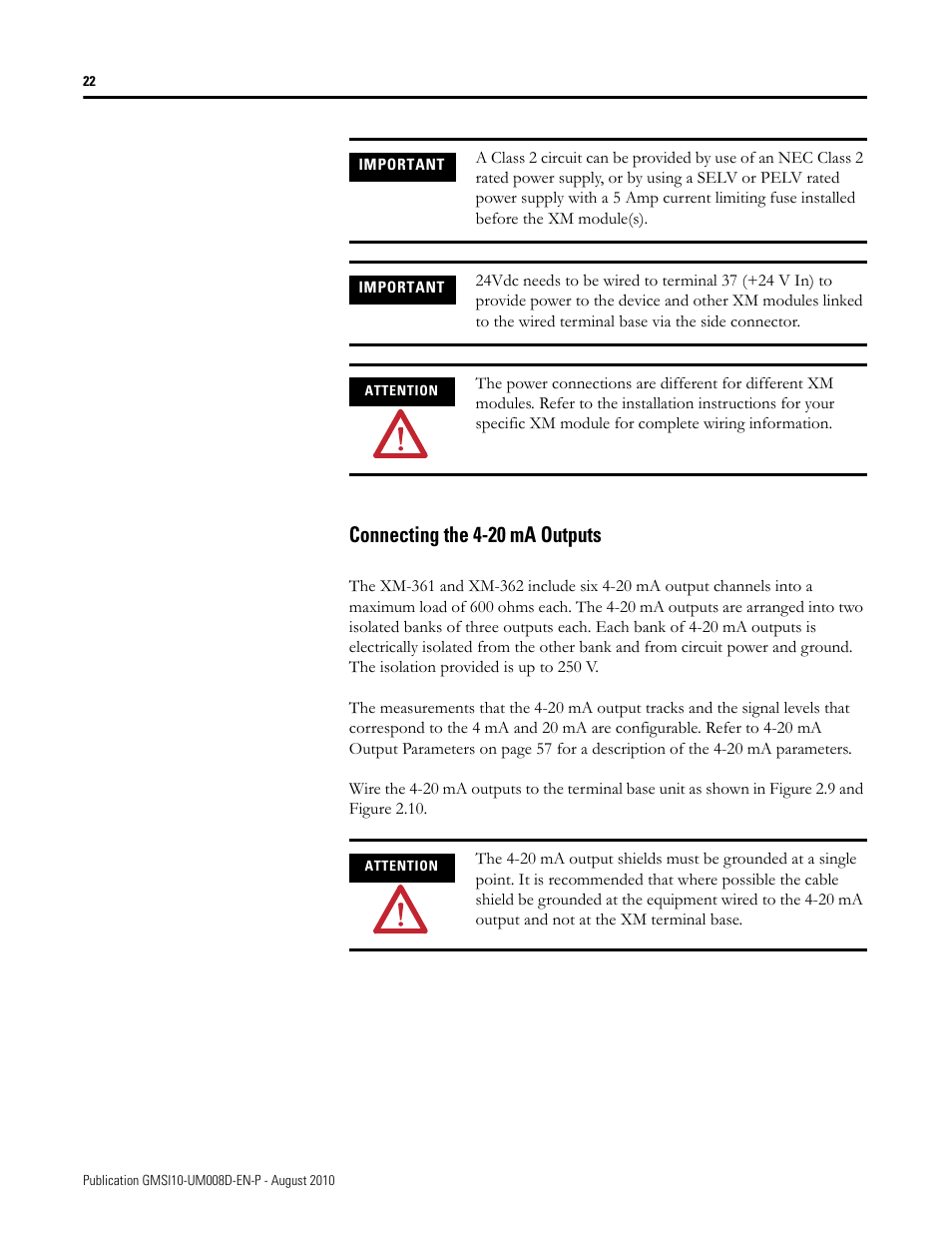

Connecting the 4-20 ma outputs – Rockwell Automation 1440-TTC06-00RE XM-362 Temperature Module User Manual
Page 30
