Press to clear the fault or alarm message. If multiple faults or alarms occurred,
they are displayed after you press .
If the fault or alarm log is full, a message is displayed. To log future faults and alarms,
you must clear the log (section 7.2.2). Each log holds up to ten entries.
To identify the problem when a fault or alarm occurs, use the Fault or Alarm Menu or
the tables in the hardware manual. They give the probable cause and corrective action
to take when a fault or alarm occurs.
When a fault is corrected, you must reset the faults before restarting the drive. When
an alarm is corrected, the alarm is automatically reset, but the indicator does not turn
off until you reset the alarm indicator.
7.2 Reviewing and Resetting Faults and Alarms
Use the Fault or Alarm Menu to review and reset faults and alarms and clear the logs.
To access the Fault Menu, press . The key indicator displays FAULT and the
Fault Menu in figure 7.3 is displayed.
To access the Alarm Menu, press until the key indicator displays ALARM . The
Alarm Menu is displayed, as shown in figure 7.4.

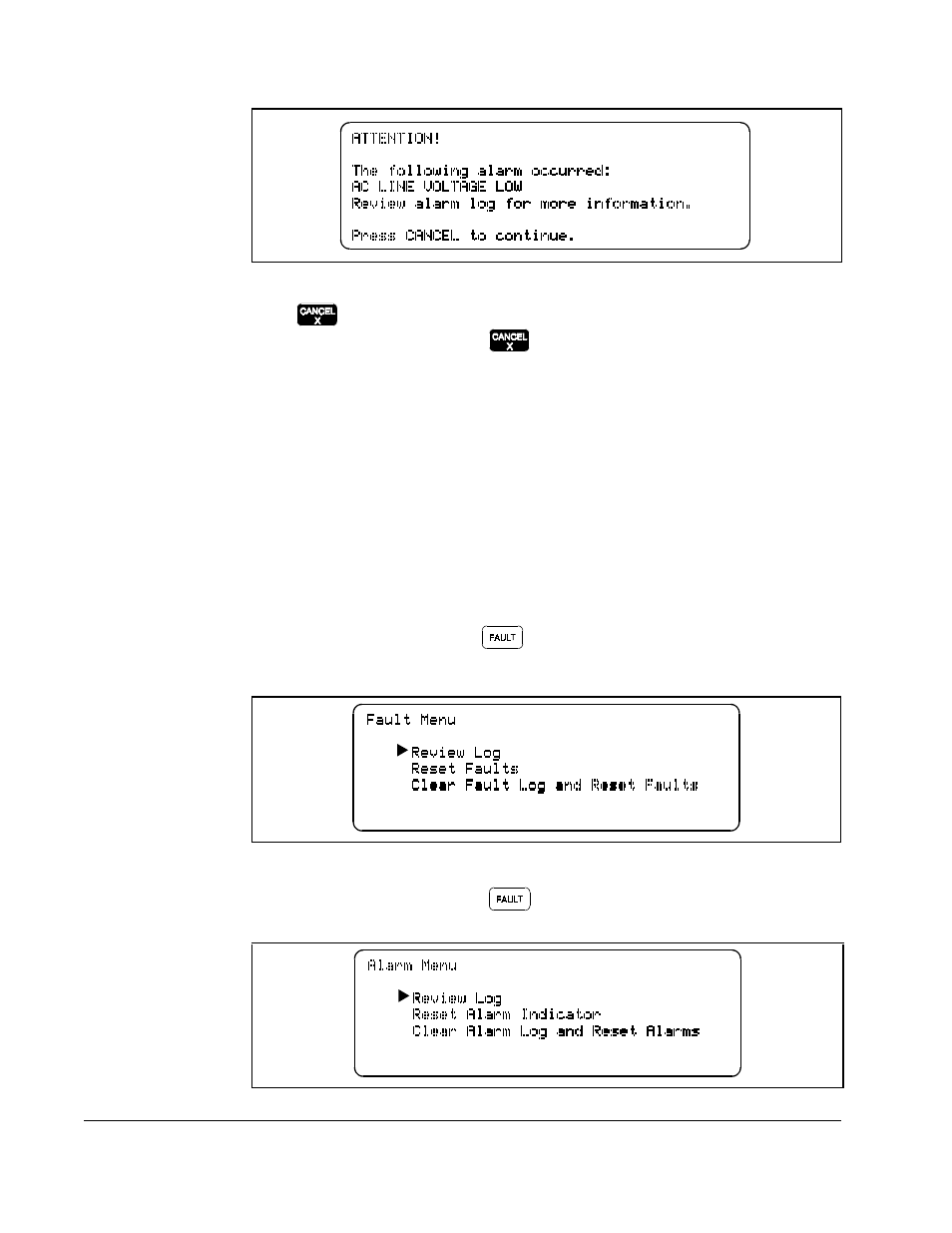

Figure 7.2 – Example of an Alarm Screen
Figure 7.3 – Fault Menu
Figure 7.4 – Alarm Menu
