6.2.2 Setting the Control Source

To select the control source:

Step 1. Stop the drive if it is running.

Step 2. Press

. The screen shown in figure 6.3 is displayed.

Step 3. Press

to move the cursor to the control source you want.

Step 4. Press

to accept the option and return to the previous screen. The

option you accepted is displayed in the key indicator.

6.3

Using the OIM to Control the Drive

When

is set to

KEYPAD

, you can use the

OIM

to control the drive. This includes

running, jogging, and stopping the drive.

6.3.1 Starting the Drive

From the

OIM

, you can run or jog the motor when

is set to

KEYPAD

and the Drive

Ready indicator is on.

To Run the Drive:

Press

to start the motor and allow it to accelerate to the drive

reference.

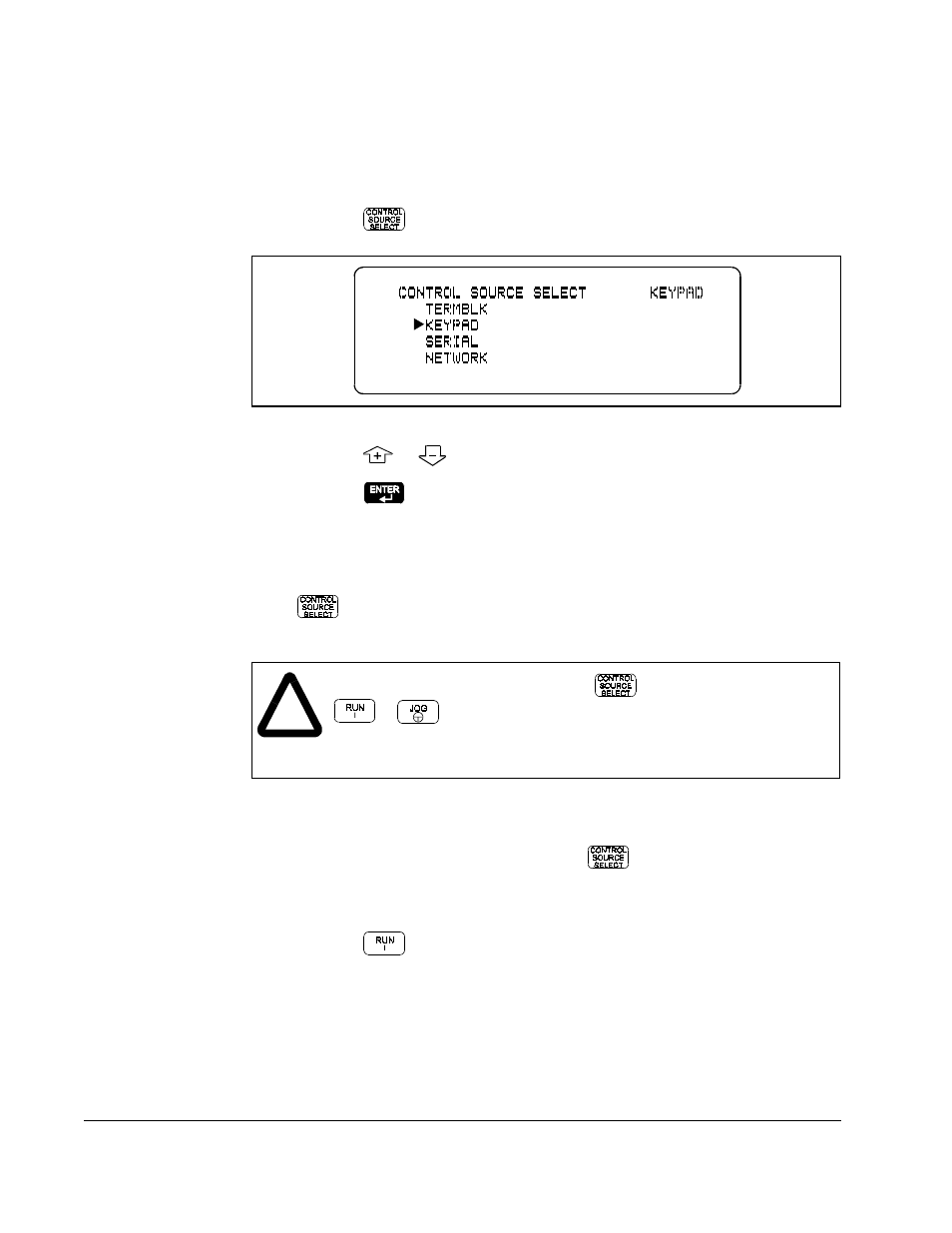

Figure 6.3 – CONTROL SOURCE SELECT Screen

ATTENTION: If the drive is ready and

is set to

KEYPAD

, pressing

on the

OIM

immediately starts the motor. Make sure the

motor and driven machinery are safe to start before pressing either of
these keys. Failure to observe this precaution could result in severe bodily
injury or loss of life.
