Español – Rockwell Automation SP120 ACDrive 115VAC, 1Ph, 230VAC, 1Ph/3Ph, 1/4-5.0HP User Manual
Page 100
3-2
Instalación y Operación del Variador de CA SP120
Español
Tabla 3.2 – Funciones de las Luces Indicadoras
Luz Indicadora
Se encenderá cuando:
POWER
la potencia está aplicada al variador (la fuente de
alimentación por la red está conectada).
Importante: Los condensadores y las terminales de bus de
CC están energizados aún cuando la fuente de
alimentación por la red esté desconectada.
RUN
el variador está en operación. Por ejemplo, si se ha dado un
comando de arranque.
PRG
el variador se está programando.
Hz
la velocidad de salida se está visualizando.
A
la corriente de salida se está visualizando.
Tecla Start
se ha oprimido la tecla Start.
Speed Pot
el potenciómetro de velocidad está activo.

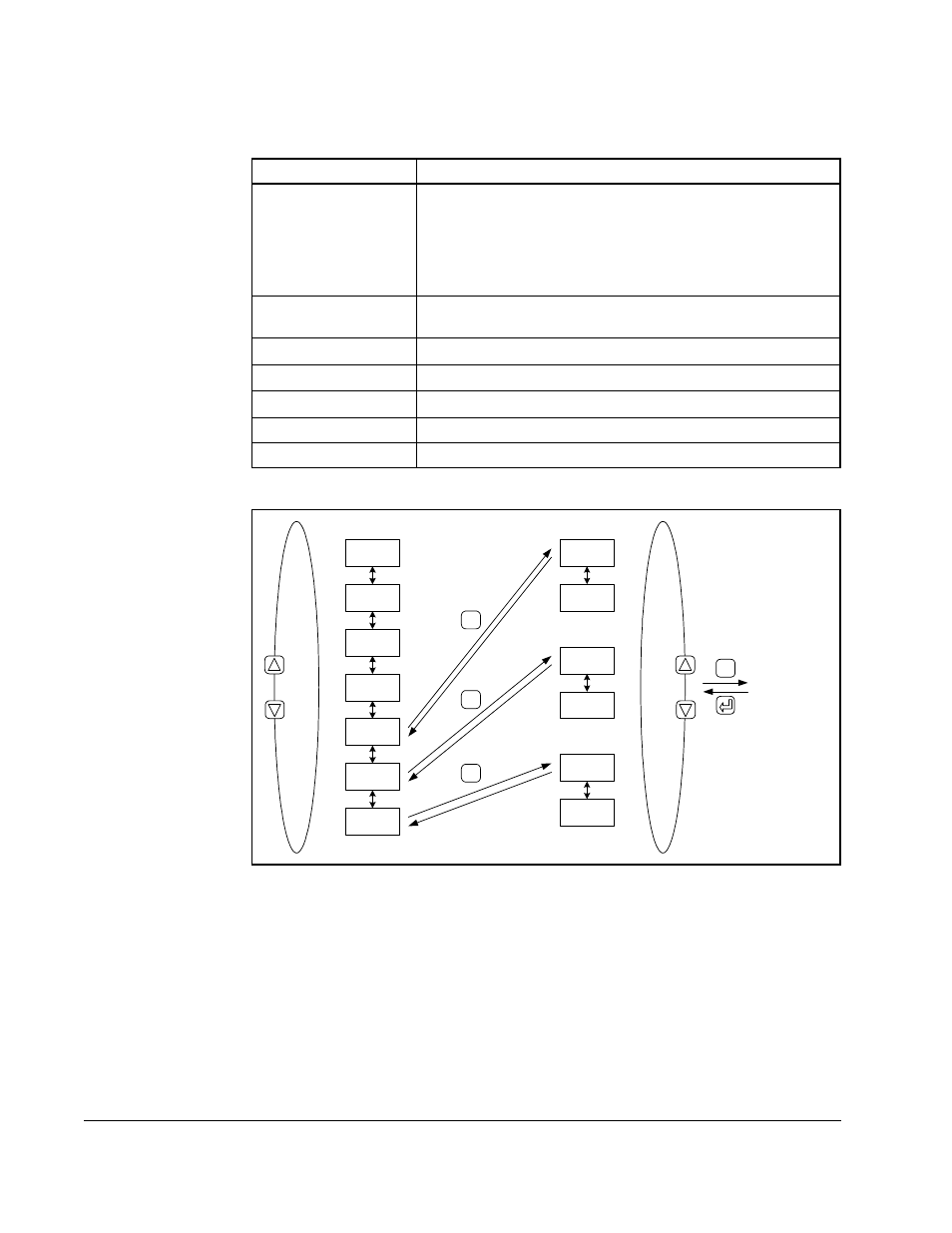

Figura 3.1 – Descripción general de la programación
Parameter
Entry
Saving entered
Parameters
d01
d01
d01
d01
d01
F04
C ..
A ..
F01
b ..
d09
A01
A98
b01
b89
C01
C91
PROG
PROG
PROG
PROG
Parameter Entry =
Entrada de Parámetro
Saving Entered
Parameters = Salvado
de los Parámetros
Introducidos
