Chapter 2
Install Terminal
After a restart, the terminal performs a series of start-up tests then takes one of
these actions:
• Launches an HMI application that is configured to run at startup.
• Launches FactoryTalk Machine Edition Configuration mode.
• Launches the Windows Explorer desktop.
The action that occurs depends on the start-up options configured for your
terminal. Refer to
for details.
Start-up Messages and Codes on page 164
for a list of start-up
information and error messages.
Follow these steps to restart the system by using the Reset switch.
1. Insert a thin, nonconductive probe into the Reset area.
2. Press the switch.

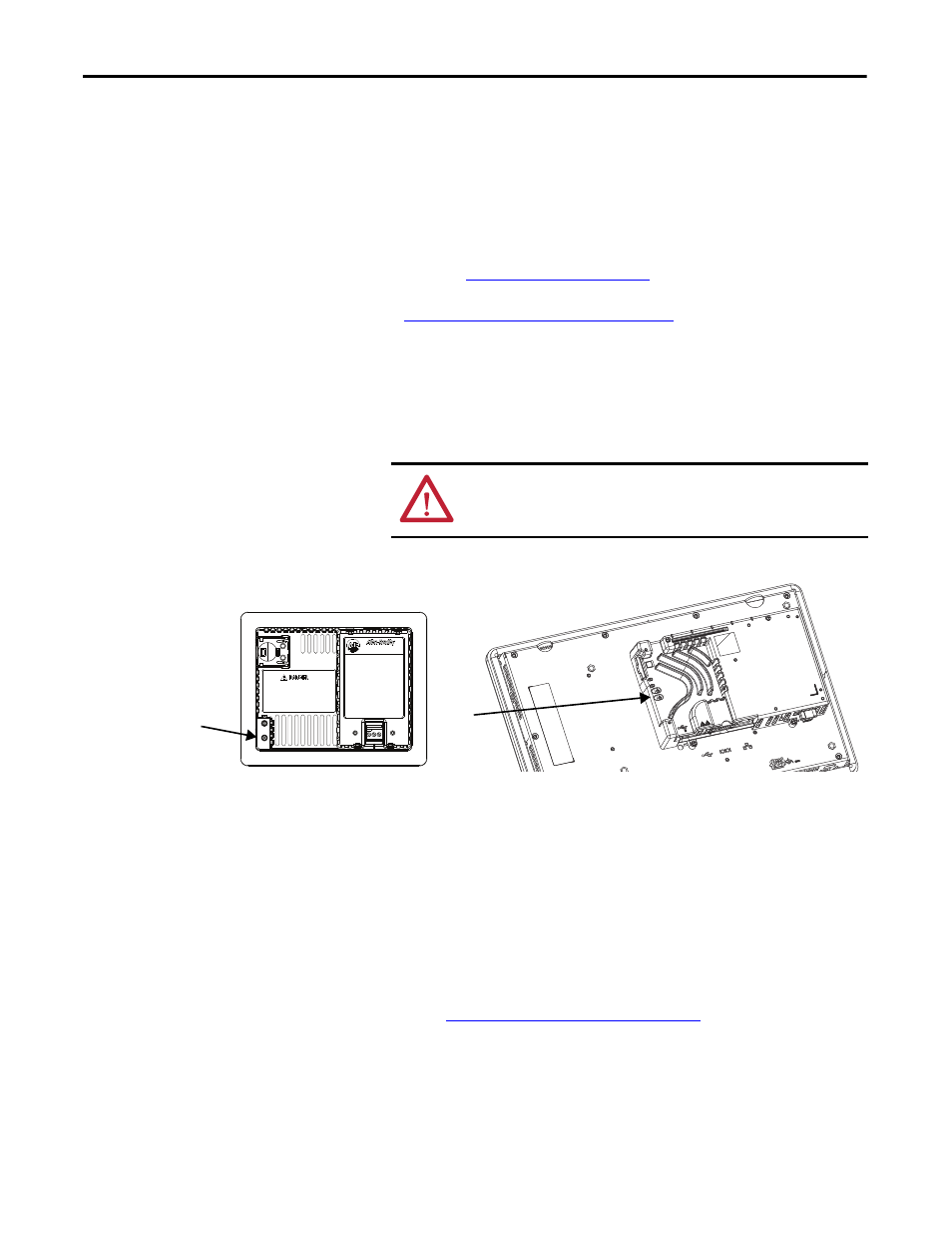

Figure 9 - Reset Switch
Follow these steps to restart the system from the Windows desktop.
1. From the Start menu, choose Programs>Restart System.
You are asked to confirm the restart.
2. Click Yes to restart the terminal or No to cancel.
Follow these steps to restart the system from FactoryTalk View ME Station
software.
1. Access Configuration Mode.
Access Configuration Mode on page 45
for ways to launch
FactoryTalk View ME Station Configuration mode.
2. Press Reset [F7].
ATTENTION: Use a nonconductive object to press the reset switch.
Don’t use a conducting object such as a paper clip or the tip of a pencil.
Either of these can damage the terminal.
COMM
FAULT
DEFAUL
T
RESET
DEFAULT
RESET
FAULT
COMM
