Install and Replace Components
Chapter 5
700 to 1500 Terminals

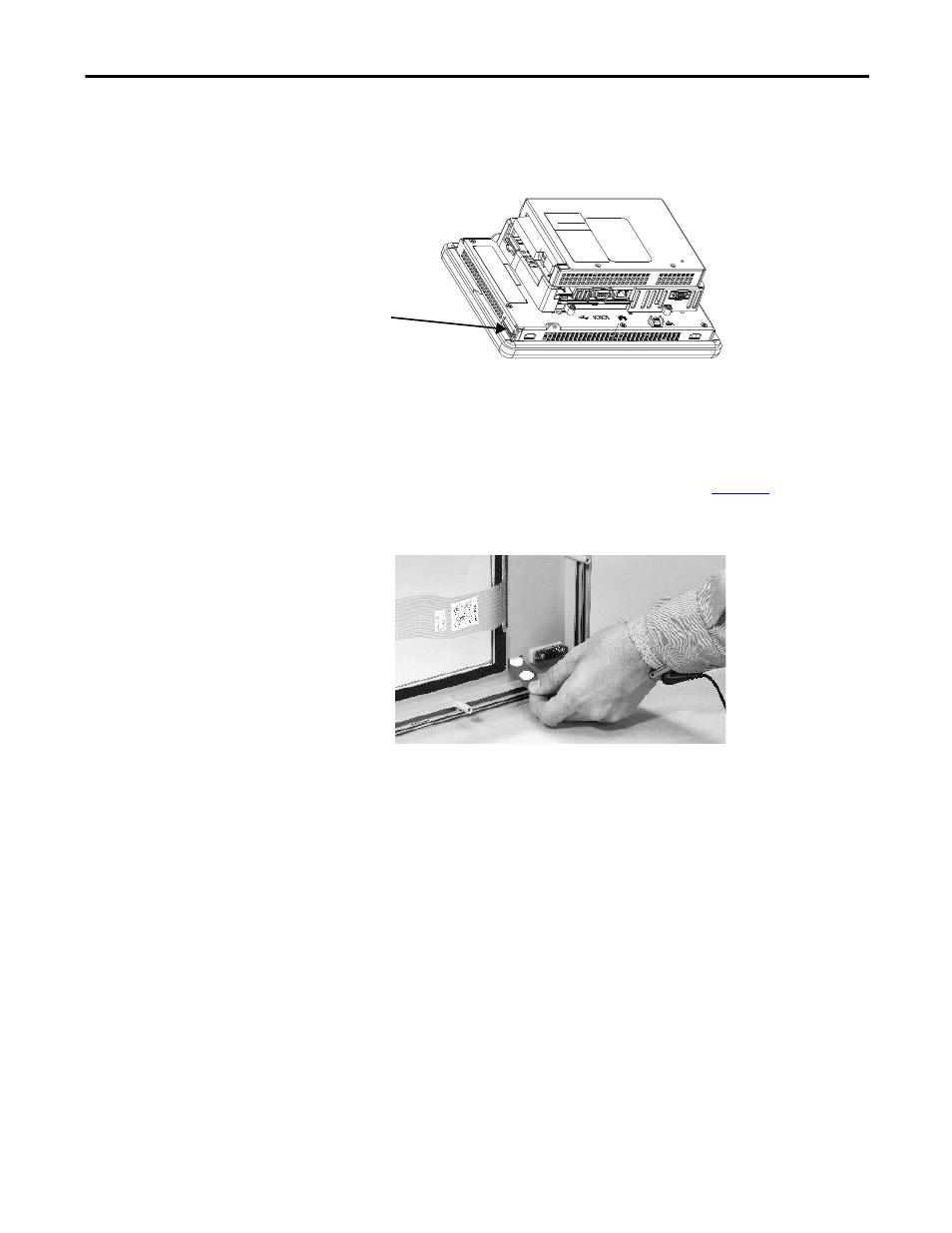

On the 700 to 1500 terminals, the F1-Fxx legend strips are accessible from the
back of the unit.
The K1-K
xx legend inserts are accessible when the display bezel is removed.
Follow these steps to replace the K1-K
xx key legend inserts.
1. Remove power from the terminal.
2. Remove the display module bezel as described on
3. Pull the legend inserts out from the slots on the bezel.
4. Slide the new legend strips into the slots until only the end tab is visible.
5. Replace the display module bezel.
Load an SD Card
A Secure Digital (SD) card provides extra storage when inserted into the SD card
slot. Supported cards include catalog number 1784-SDx. The SD cards are
hot-swappable; they can be inserted and removed while the terminal is operating.
The SD card slot is accessible from the inside or back of the panel in which the
terminal is installed.
