Chapter 2
Installation
2-14
You can connect COM1 or COM2 from the programming terminal directly
to channel 0 on the PLC-5/VME processor. This serial port supports
RS-232C only.
You can configure channel 0 to either:
user mode—Configure channel 0 to user mode when you are connecting
it to RS-232 devices such as bar code readers, weigh scales, and
message displays. You can then communicate and manipulate
instructions through the ladder-logic ASCII read and write.
system mode—This is the default. Use this configuration when
connecting to programming operators interfaces (such as 6200 series
software and ControlView) using a built-in point-to-point protocol.
Although the communication is much like DH+ link, there is no access
to DH+ through Channel 0; therefore, the channel does not require a
DH+ station address. The default baud rate is 2400.

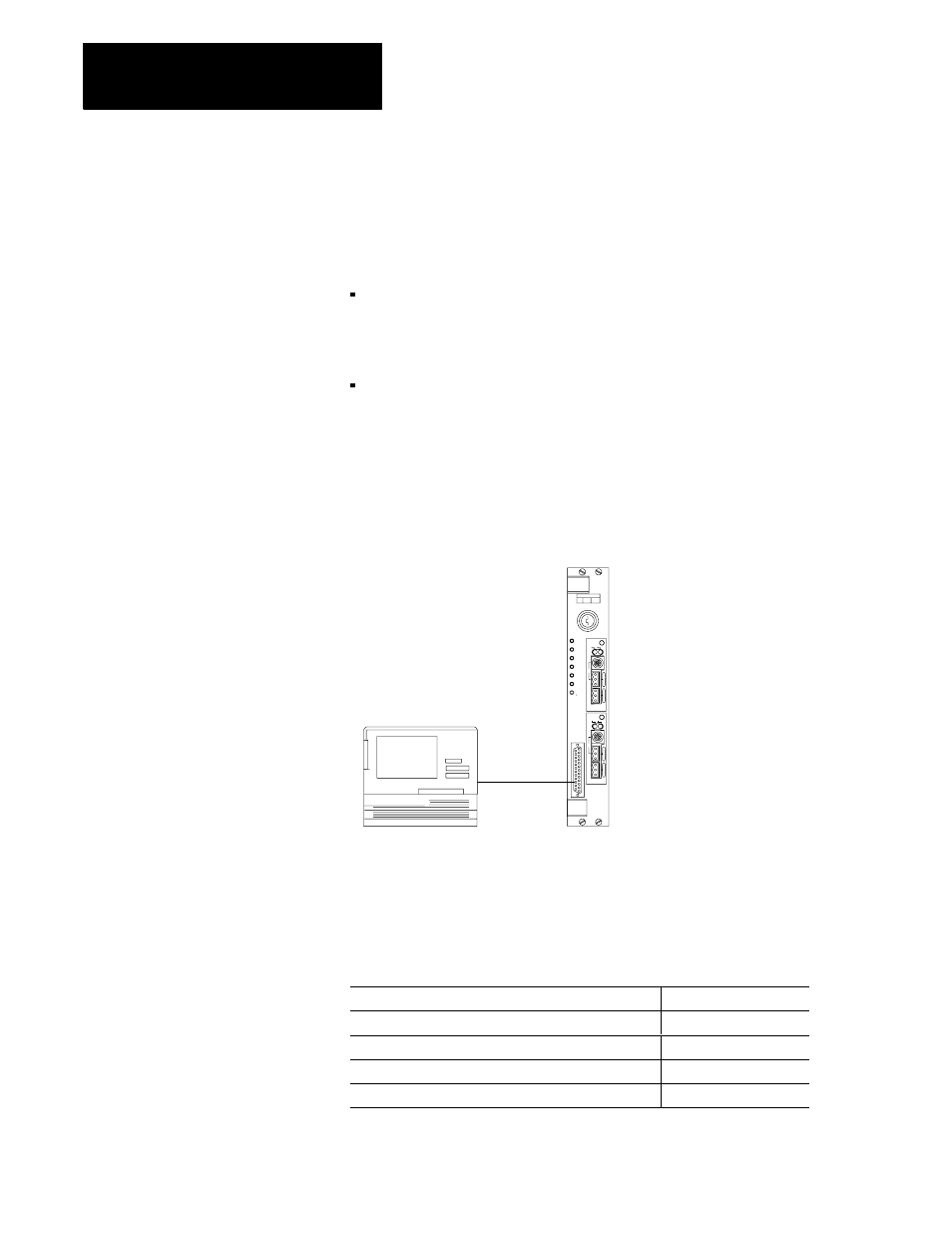

Figure 2.4
Programming Terminal to Channel 0 of a PLC-5/VME Processor
PLC-5/V40B 1784-T47 with 1784-KL/B
or IBM compatible
19541
You can use the following cables to connect to channel 0:
Table 2.C
Programming Terminal to Channel 0 Interconnect Cables
If you want to connect: Use:
1784-T53 or IBM AT to channel 0 1784-CP10 or Cable #1
1784-T53 or IBM AT to channel 0 through a modem Cable #6
1784-T47 or IBM XT to channel 0 1784-CP11 or Cable #2
1784-T47 or IBM AT to channel 0 through a modem Cable #6
See Appendix E for more information on cable connections.
Connecting a Programming
Terminal to Channel 0
