Rockwell Automation 1772-L8_LW_LWP_LX_LXP,D17726.5.8 User Manual User Manual
Page 51
Installing Your
Programmable Controller
Chapter 4
4-12

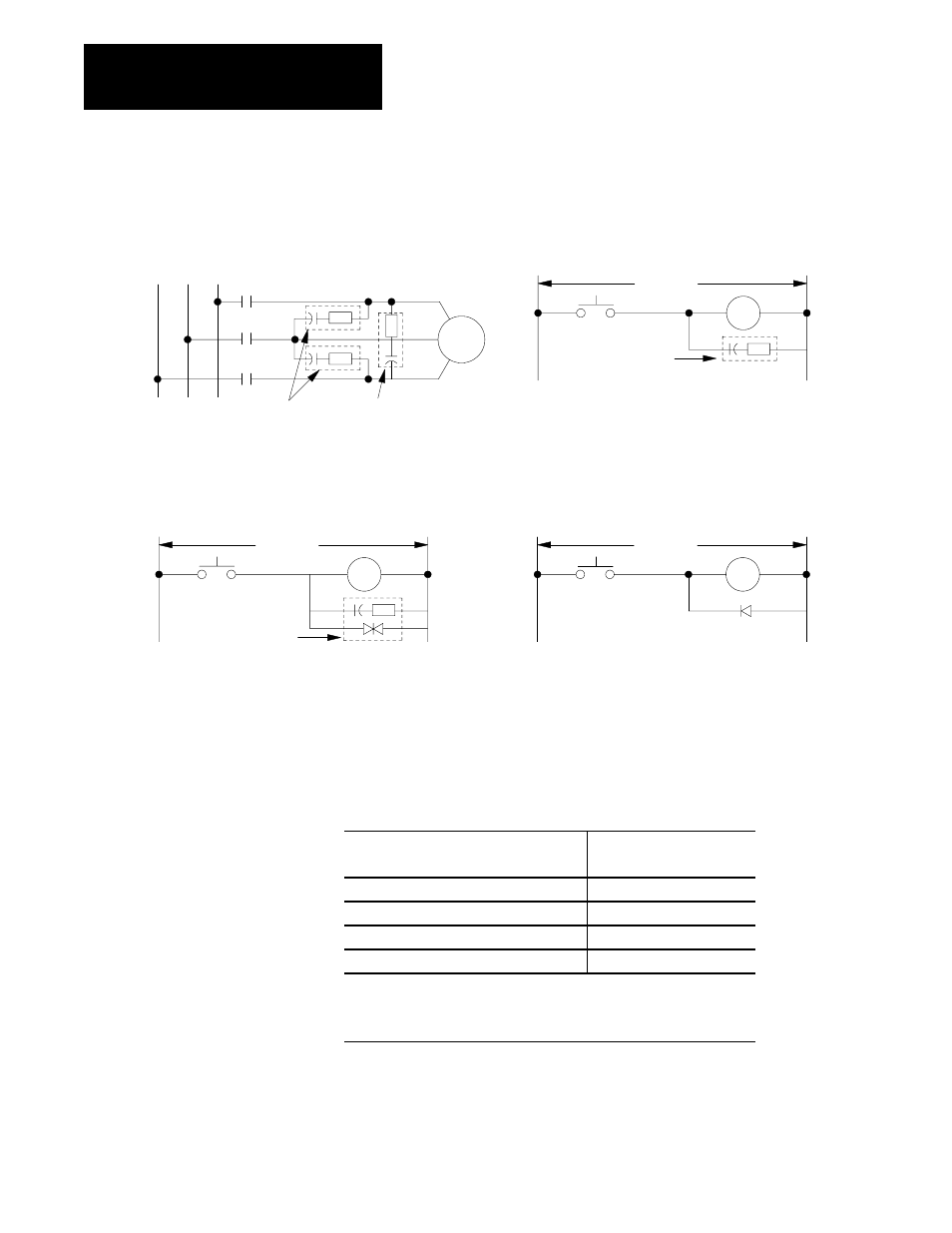

Figure 4.4
Typical Suppression Networks
+
–
12057-I
Electro Cube Inc.
Part No. RG 1676Ć13
3Ćphase motor
AllenĆBradley
Catalog No. 1691ĆN2
120V ac
230V/460V ac
Electro Cube Inc.
Part No. RG 1676Ć14
120V ac
V dc
Suppressor for 3Ćphase apparatus
Suppressor for small apparatus
Suppressor for 3Ćphase apparatus
Suppressor for small apparatus
Suppressor for large apparatus
Suppressor for dc relays
Table 4.B
AllenĆBradley Suppressors
AllenĆBradley Equipment
Suppressor Catalog
Number
Motor Starter Bulletin 509
599ĆK04
1
Relay Bulletin 700 Type N or P
700ĆN24
2
Motor Starter Bulletin 709
1401ĆN10
1
Miscellaneous
700ĆN24
3
1
For starters with 120V ac coils.
2
Maximum coil voltage 150V ac or dc.
3
The Bulletin 700ĆN24 is a universal surge suppressor. It can be used on
electromagnetic devices with the limitation of 35 sealed VA, 150V.
