Module Block and Output
Circuit Diagrams

The graphics in this section show the 1756-OF8I module’s block diagrams and
input circuit diagrams.

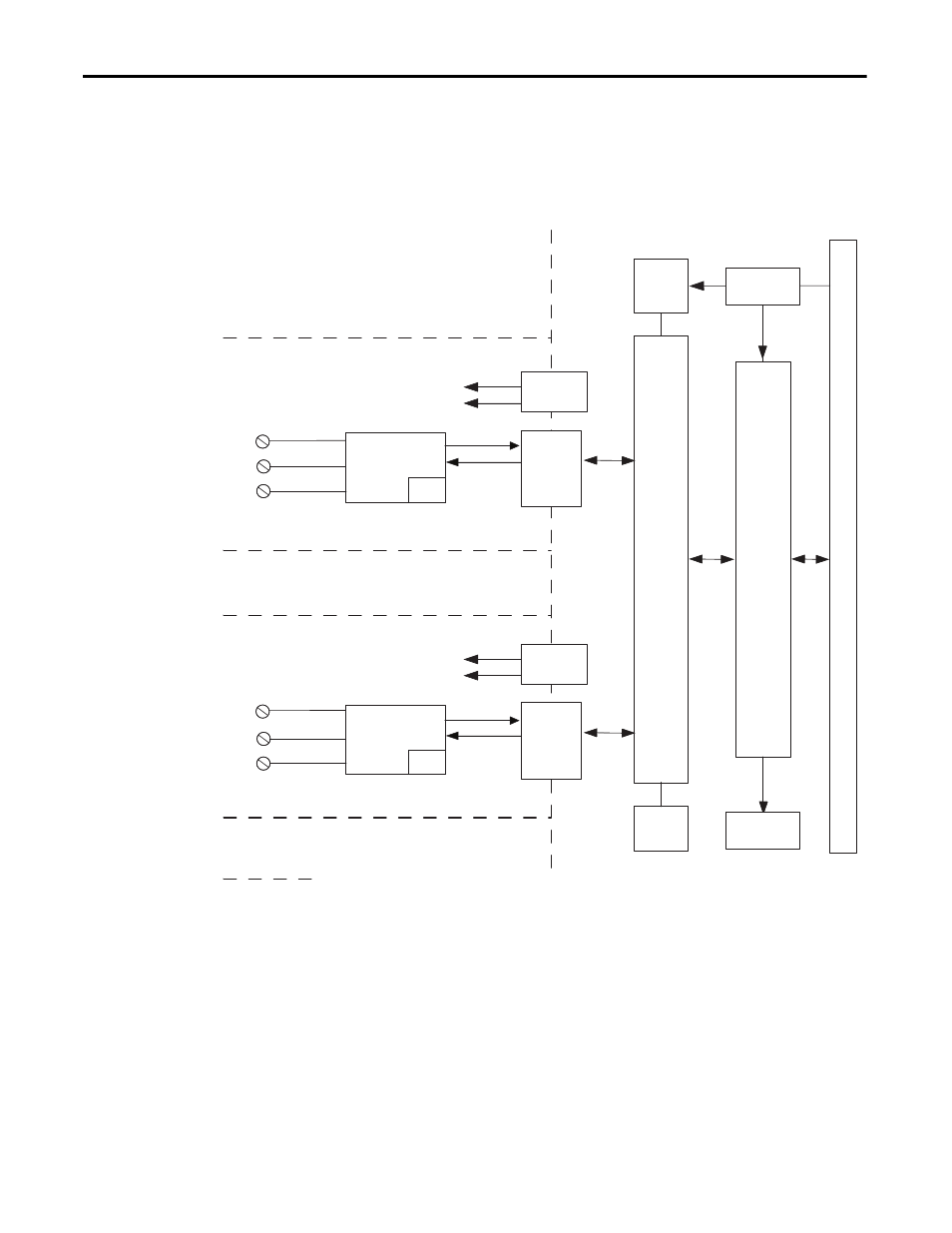

Figure 20 - 1756-OF8I Module Block Diagram

RIUP

Circuit

DSP

Field Side

Backplane Side

1
7
5
6
B
A
C
K
P
L
A

N

E

Channels 1…6 (not shown)

Backplane

ASIC

DC-DC

Shutdown

Circuit

System
+5V

Isolator

DC-DC

Converter

Vref

D/A Converter and

Output Stage

Channel 0

Channel 7

OUT_0/V

OUT_0/I

RTN_0

Isolator

DC-DC

Converter

Vref

D/A Converter and

Output Stage

Isolated Power

Nonvolatile

Memory

Status

Indicators

OUT_7/V

OUT_7/I

RTN_7

Isolated Power

Represents Channel Isolation
