C-4
Wireless Flash Updating DSI Peripherals
5. Establish wireless communication between the WIM and Pocket PC.
For this procedure, refer to
Using Pocket DriveExplorer for Pocket
6. With the StatusMonitor screen (
Figure C.5
) for the drive displayed,
select Port > and then the appropriate port number (for this example,
Port 1) to display the StatusMonitor screen (
Figure C.6
) for the
peripheral device being flashed (for this example, the 22-COMM-D).
7. Select Tasks > Flash Update to open the DeviceFlash screen
). In the Available Updates list, select the appropriate
firmware version (for this example, 1.007.01 Full). Then tap Next ->
to continue. The DeviceFlash update warning screen (
)
appears.

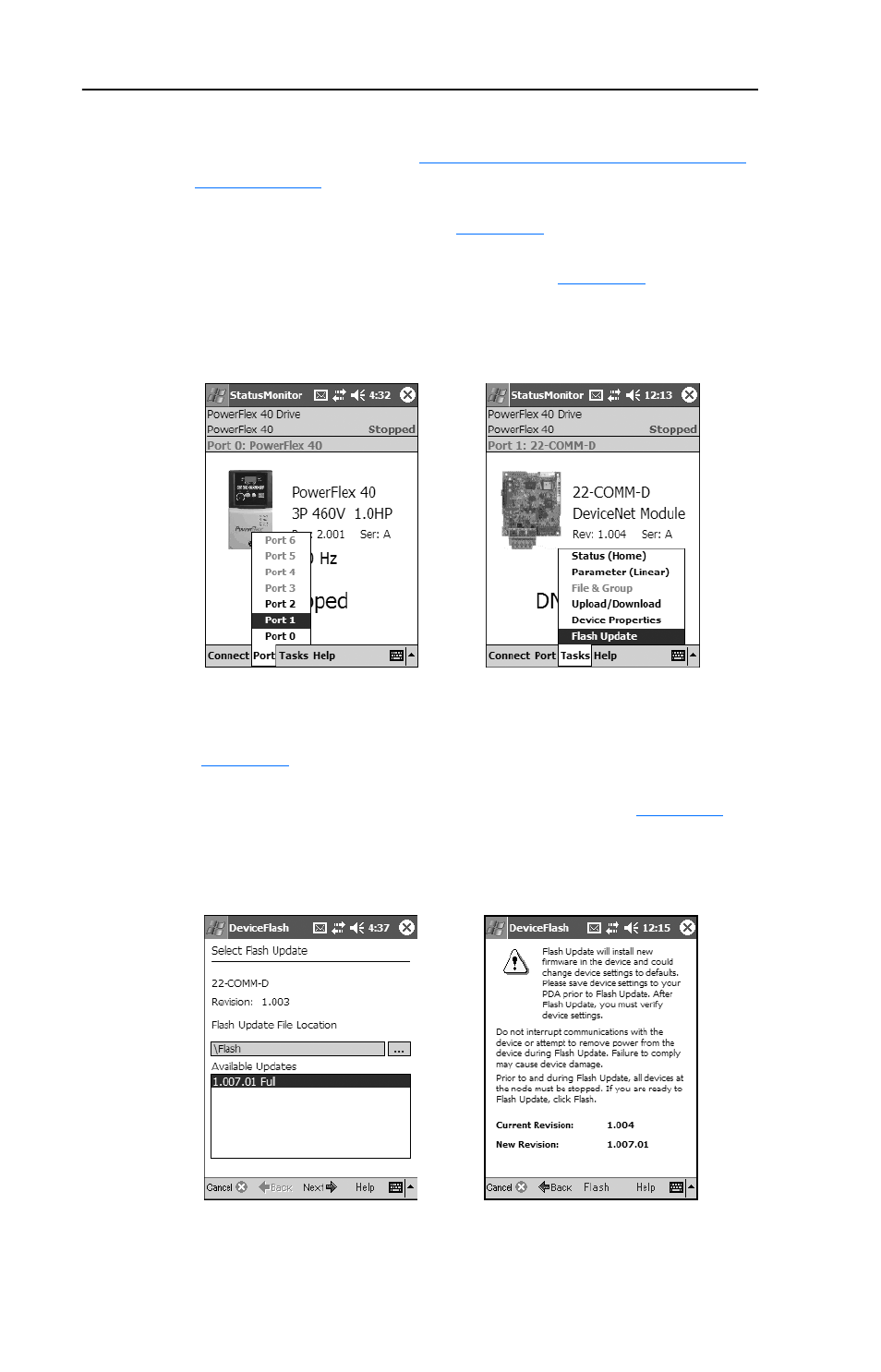

Figure C.5 Port Selection Screen
Figure C.6 StatusMonitor Screen for
22-COMM-D
Figure C.7 DeviceFlash Screen
Figure C.8 DeviceFlash Update
Warning Screen
