1-6 Getting Started
The WIM reports its operating status using a tri-color status indicator
(
Figure 1.3 ).

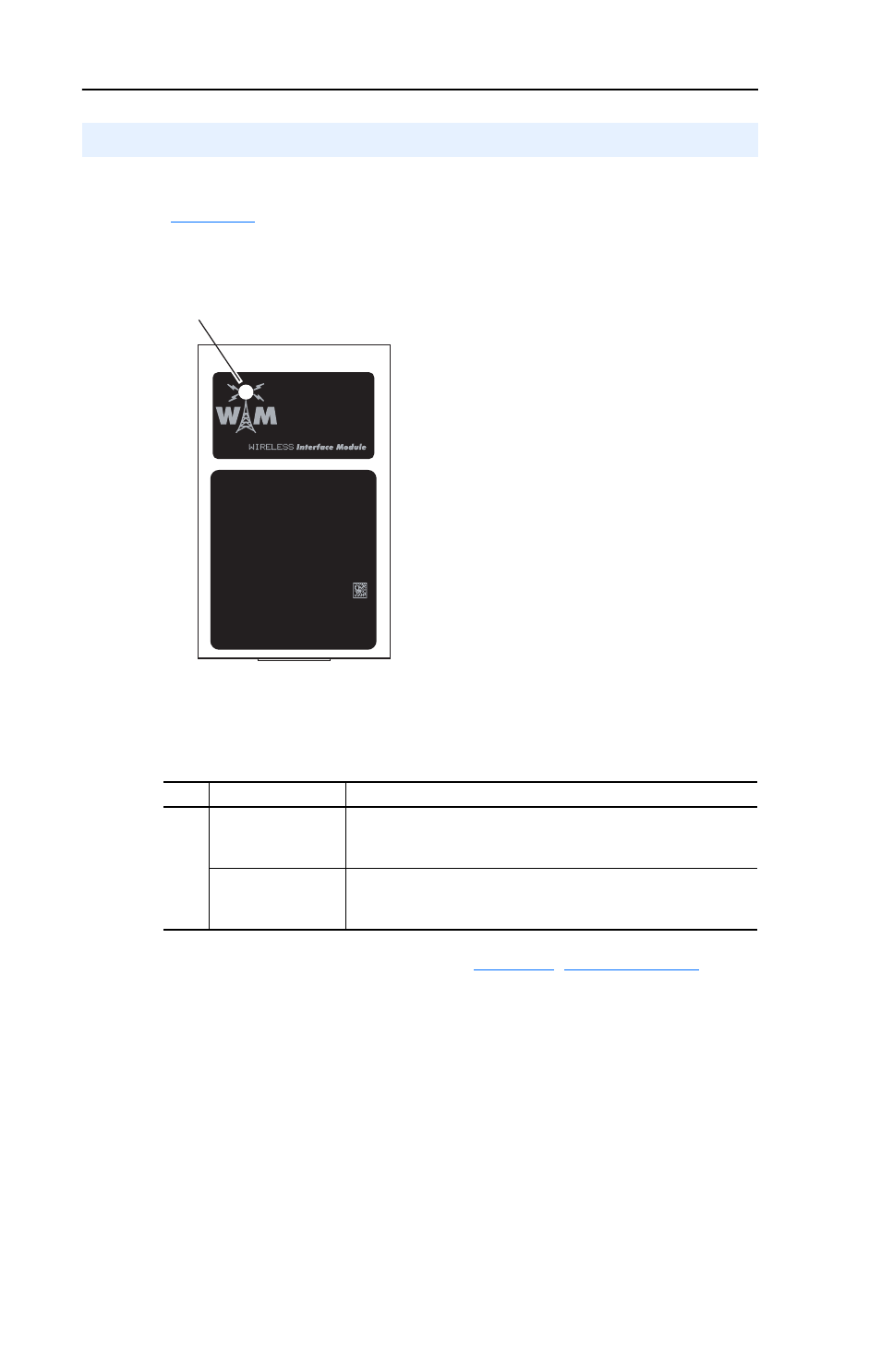

Figure 1.3 Status Indications of the WIM
Status indications under normal operation are described below:
If any other conditions occur, refer to Chapter 4 , Troubleshooting .
Status Indicator
Item Status Indication Description
➊
Solid Blue The WIM is receiving data from the Bluetooth wireless
technology enabled Pocket PC or computer, or transmitting
data to the Pocket PC or computer.
Flashing Green The WIM is operating, but has not established wireless
communication with the Bluetooth wireless technology
enabled Pocket PC or computer.
Contains FCC ID: SNT-2XWIMNX
IC: 5450A-2XWIMNX
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received,
including interference that may cause undesired operation
➊
(NEMA 1 WIM shown)
