Getting Started
1-5
This section is designed to help experienced users quickly start using the
WIM. If you are unsure how to complete a step, refer to the referenced
chapter.

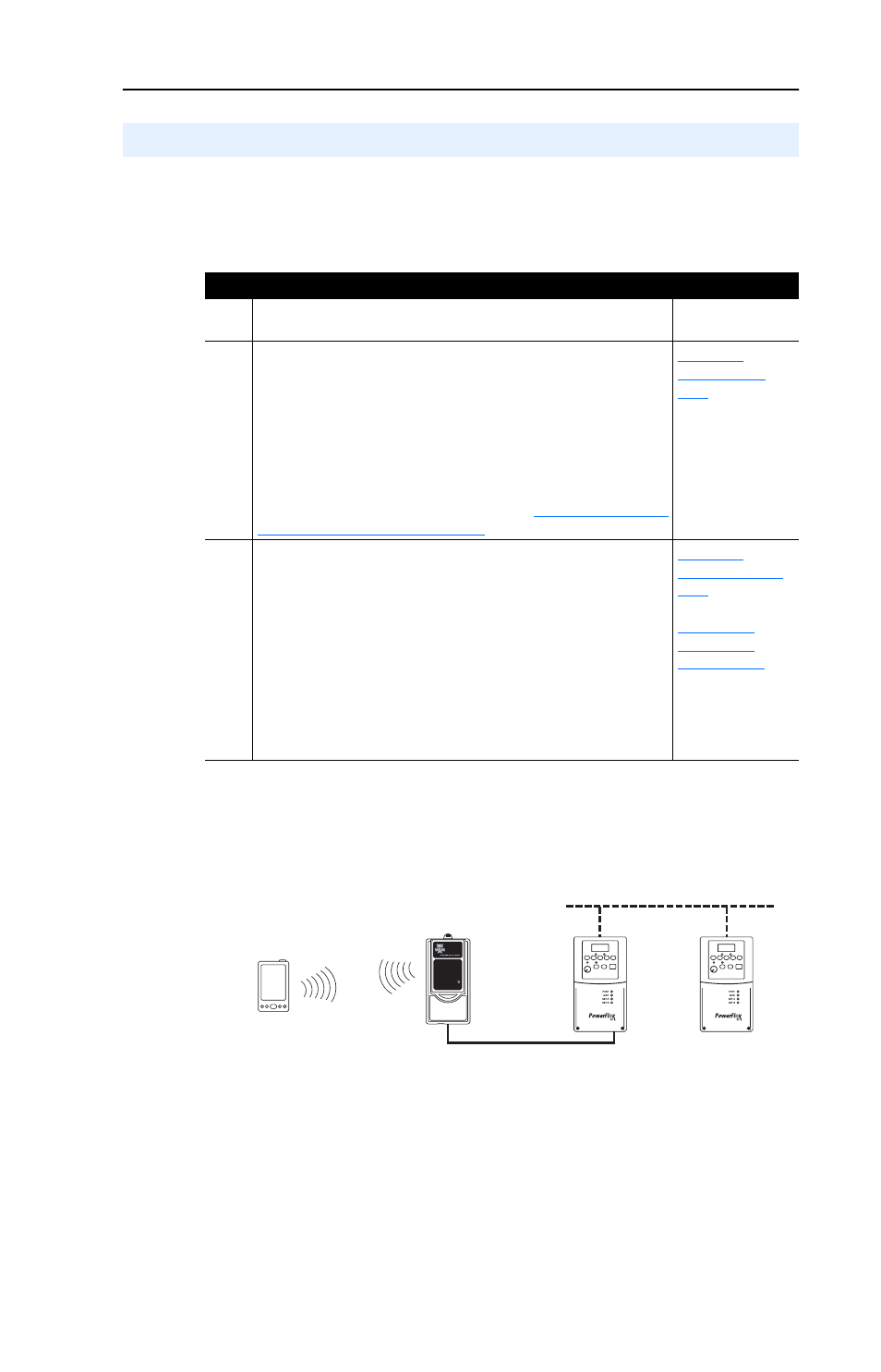

Figure 1.2 NEMA 1 WIM (22-WIM-N1) Installed in a HIM Bezel (22-HIM-B1)
Quick Start
Step Action
Refer to…
1
Review the safety precautions for the WIM.
Throughout this
manual
2
Install the WIM.
To install the NEMA 1 WIM (22-WIM-N1) in a remote-mounted
HIM bezel (22-HIM-B1), first install the bezel (see HIM Bezel
Installation Instructions Publication No. 22HIM-IN002…). Make
sure the HIM bezel is connected to the drive port using the 2 m
(6.6 ft.) bezel cable. Then place the WIM in the bezel cradle.
Apply power to the drive.
For the NEMA 4 WIM (22-WIM-N4S), see
4 WIM (22-WIM-N4S) on page 2-2
for installation instructions.
3
Configure the WIM parameters.
The WIM is provided ready for use. It is only necessary to
configure the WIM if you want to:
• Change the default setting (0 = Fault) for Parameter 07 -
[Comm Flt Action]
• Enable the WIM security mode using Parameters 05 -
[Security Mode] and 06 - [Security PIN]
• Use the RTU Master mode to monitor, configure, and
control up to 32 PowerFlex 4-Class drives on a network
,
PowerFlex 4/40/400 Drives
(with 22-COMM-* Adapter)
DeviceNet/ControlNet Network
HIM Bezel with
Installed WIM
Contains FCC ID: SNT-2XWIMNX
IC: 5450A-2XWIMNX
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received,
including interference that may cause undesired operation
Pocket PC,
Laptop or Desktop
Computer
