I/O Terminals
Terminal blocks TB1 and TB2 contain connection points for all inputs, outputs
and standard encoder connections. When installed, both terminal blocks reside
on the main control board. These components are provided with the drive but are
not factory installed.
Make the terminal block wire connections.
When wiring is complete, install the connector plug.
Table 24 - Control & Encoder Terminal Block Specifications

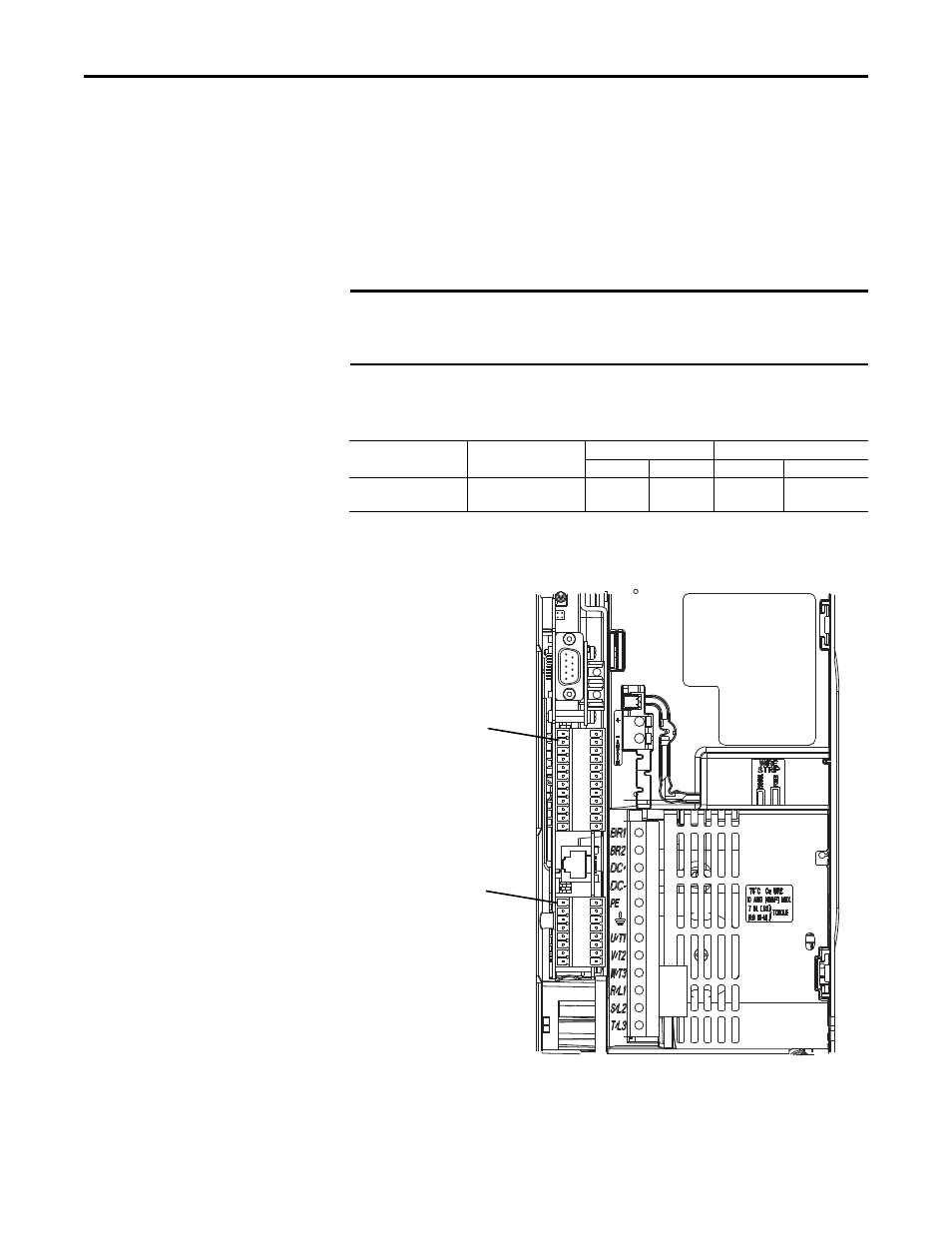

Figure 18 - Main Control Board I/O Terminal Locations
IMPORTANT For NEMA/UL Type 1 applications, all wiring must be routed through the
conduit plate on the drive. Route any wires from the expanded cassette to the
base cassette and out of the drive.
Name Description Wires Size Range (1)
(1) Maximum/minimum sizes the terminal block accepts - these are not recommendations.
Torque
Maximum Minimum Maximum Recommended
I/O Terminal Blocks Signal & Encoder power
connections 1.5 mm
2
(16 AWG)
0.14 mm
2
(28 AWG)
0.25 N•m
(2.2 lb•in) 0.22 N•m
(1.9 lb•in)
TB1 Terminals
TB2 Terminals
