PowerFlex 700S Adjustable Frequency AC Drive - Phase II Control
To connect or disconnect these devices, refer to pages 29 through 32.
In addition, on an ungrounded distribution system where the line-to-ground
voltages on any phase could exceed 125% of the nominal line-to-line voltage, an
isolation transformer should be installed. See Wiring and Grounding Guidelines
for PWM AC Drives, publication
for more information on
impedance grounded and ungrounded systems.
Jumper Installation, Removal and Storage
PowerFlex 700S drives utilize plug-in style jumpers and jumper wires. Most drives
will have a jumper storage area inside the front cover. Extra jumpers or jumpers
that have been removed should be stored in this location for use at a later time.

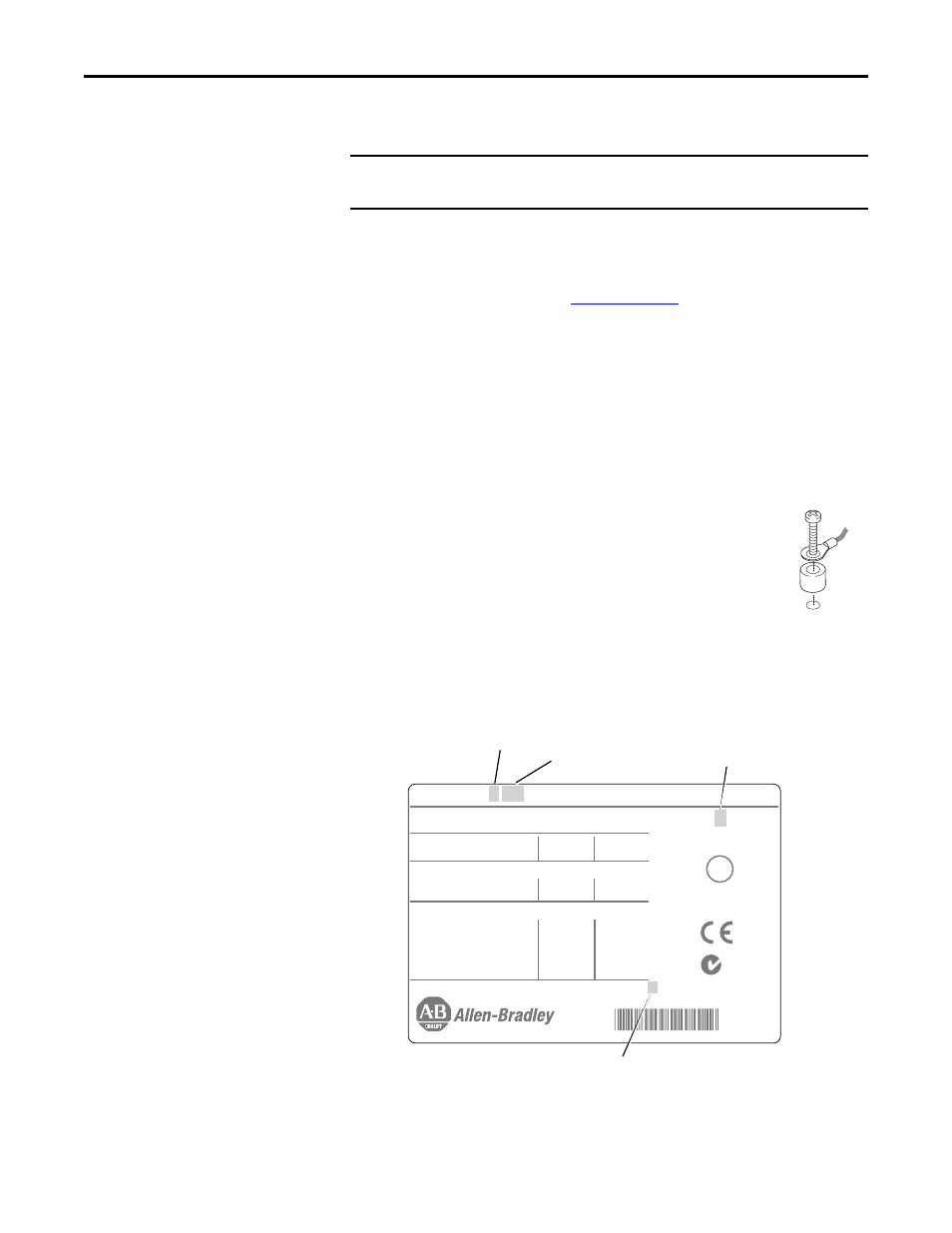

Insulating Jumper Wires
Some drives utilize nylon screws and spacers to insulate jumper
wires from ground and secure them to the chassis. The
components must be installed as shown.
Drive Identification
Refer to the drive nameplate and locate the “Voltage Code,” “Current Rating,”
“Frame,” and “Series”. Use this information to locate the proper procedure in the
following tables.
IMPORTANT
Common mode capacitors are required to conform with the EMC directive.
Removing these devices will withdraw the associated directive.
