PowerFlex 700S Adjustable Frequency AC Drive - Phase II Control
Fr
am
e
Vo
lt
ag
e
Co
de
Current
Ra
ti
ng
Factory Default Jumper Settings
Power Source Type
MOV/Input Filter
Caps
(1) (2)
DC Bus Common
Mode Caps
6
B
C
D
H
J
N
P
R
All
Two green/yellow
wires connected to
Power Terminal
Block “PE”
Green/yellow wire to
CM Cap Board is
connected to Power
Terminal Block “PE”
Solid Ground
1. The green/yellow CM Cap jumper wire should
be connected to “PE.”
2. The MOV/Input Filter Cap jumper wires should
be connected to “PE.”
Non-Solid Ground
1. The green/yellow CM Cap jumper wire should
be insulated from ground. If necessary, remove
the jumper wire from “PE” and insulate/secure
it to guard against unintentional contact with
chassis or components. Important: Do Not
Remove/Disconnect the larger green/
yellow wire.
2. MOV/Input Filter Cap jumper wires should be
insulated from ground. If necessary, remove
the jumper wires from “PE” and individually
insulate/ secure each jumper wire to guard
against unintentional contact with chassis or
components.
E
F
T
W
All
Two green/yellow
wires connected to
Power Terminal
Block “PE” and
chassis
Green/yellow wire to
CM Cap Board is
connected to Power
Terminal Block “PE”
Solid Ground
1. The green/yellow CM Cap and MOV jumper
wires should be connected to “PE.”
2. The Input Filter Cap jumper wire (top right)
should be connected to chassis ground with a
metal screw. Verify. If necessary, remove the
nylon screw/spacer and insert a metal M5 x 10
screw. Torque to 3.2 N•m (28 lb•in).
Non-Solid Ground
1. The green/yellow CM Cap and MOV jumper
wires should be insulated from ground. If
necessary, remove them from “PE” and
individually insulate/secure each jumper wire
to guard against unintentional contact with
chassis or components. Important: Do Not
Remove/Disconnect the larger green/
yellow wire.
2. The Input Filter Cap jumper wire (top right)
should be insulated from ground with a nylon
screw/spacer. Verify. If necessary, remove the
metal screw and insert a M5 x 15 nylon screw/
spacer.
(1) AC input drives only. MOV’s and input filter caps do not exist on DC input drives.
(2) When removing MOV’s, the input filter capacitor must also be removed.
DC–
DC+
BR1
BR2
USE 75 C COPPER WIRE ONLY, TORQUE 52 IN-LB (6 N-M)
22-10
AWG
5.3 IN-LB
(0.6 N-M)
WIRE STRIP
PS+
PS–
USE 75 C
COPPER WIRE
ONLY
TORQUE
52 IN-LB
(6 N-M)
U
T1
V
T2
W
T3
R
L1
S
L2
INPUT
OUTPUT
T
L3
PE
PE
Optional
Communications
Module
PE
PE

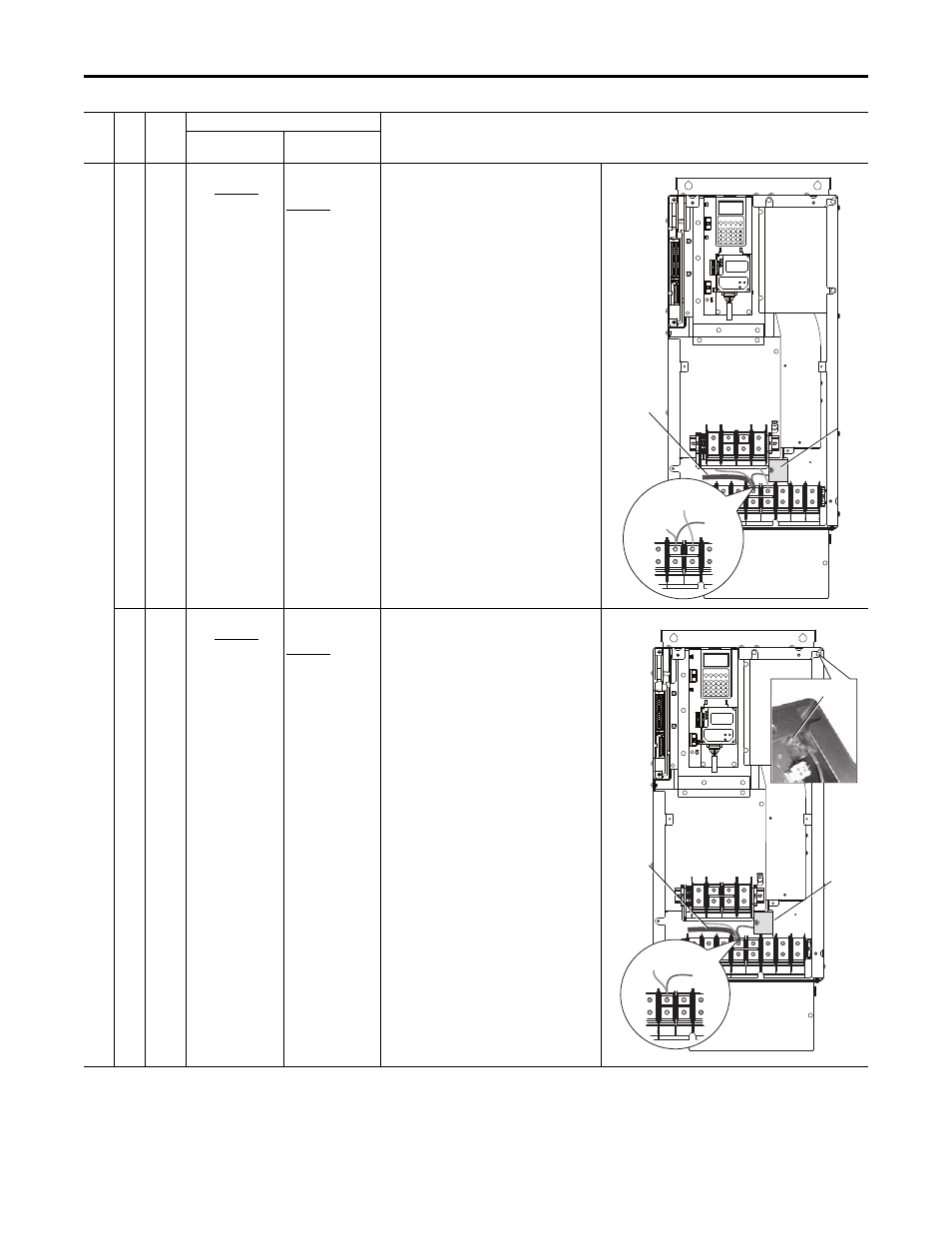

MOV
Input Filter Cap
CM Cap
DO NOT
REMOVE
MOV
DC–
DC+
BR1
BR2
USE 75 C COPPER WIRE ONLY, TORQUE 52 IN-LB (6 N-M)
22-10
AWG
5.3 IN-LB
(0.6 N-M)
WIRE STRIP
PS+
PS–
USE 75 C
COPPER WIRE
ONLY
TORQUE
52 IN-LB
(6 N-M)
U
T1
V
T2
W
T3
R
L1
S
L2
INPUT
OUTPUT
T
L3
PE
PE
Optional
Communications
Module
Input Filter Cap
PE
PE
MOV
CM Cap
DO NOT
REMOVE
MOV
