PowerFlex 700S Adjustable Frequency AC Drive - Phase II Control
Fr
am
e
Vo
lt
ag
e
Co
de
Current
Ra
ti
ng

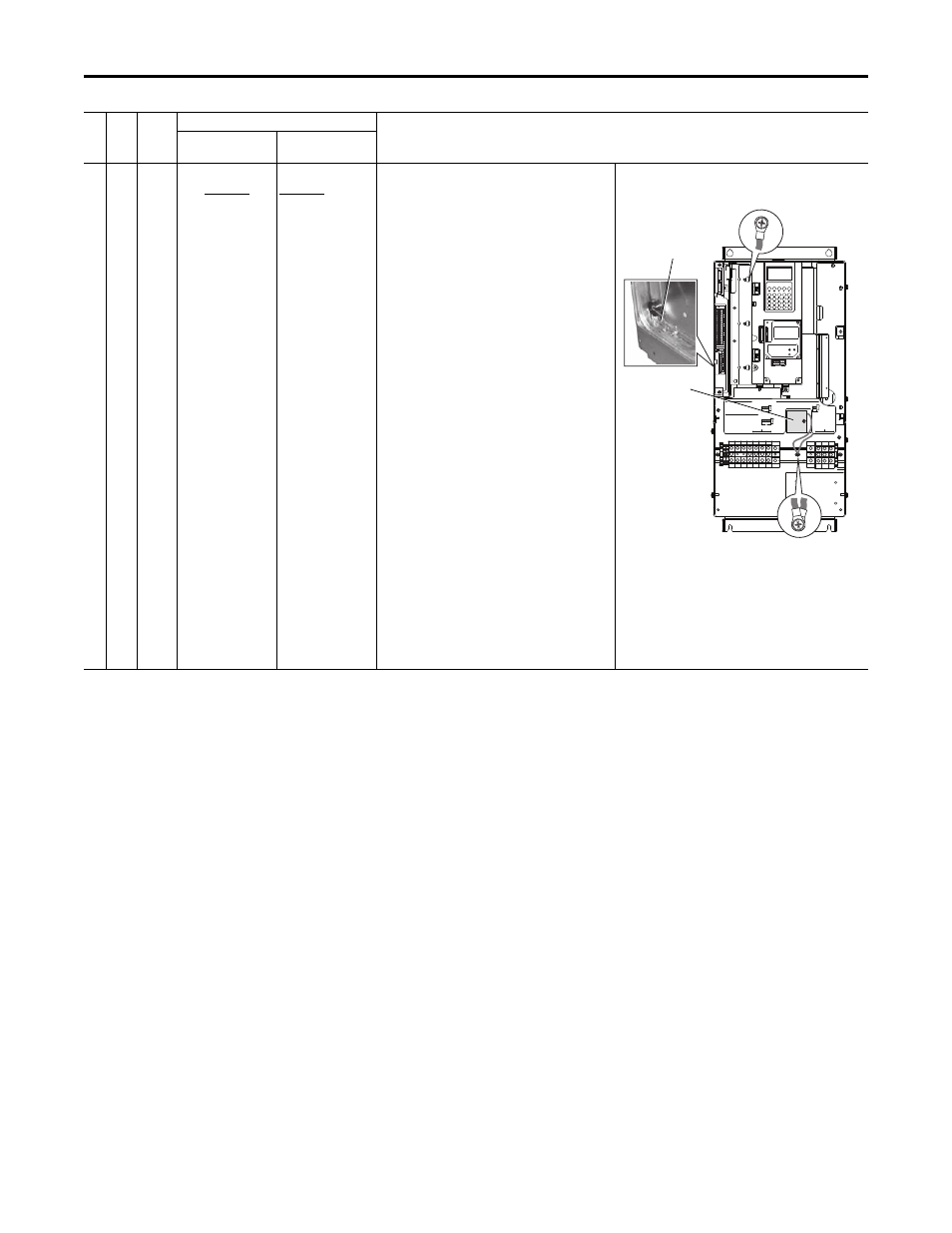

Factory Default Jumper Settings
Power Source Type
MOV/Input Filter
Caps
(1) (2)
DC Bus Common
Mode Caps
5
B
C
D
H
J
N
P
R
All,
except
C140
(see
next
page)
Two green/yellow
wires connected to
the Power Terminal
Block rail
Green/yellow wire is
connected to ground
Solid Ground
1. CM Cap jumper wire should be connected to
ground with a metal screw. Verify.
• Newer Drives - If necessary, remove the nylon
screw/spacer and insert a metal M5 x 8 screw.
Torque to 3.2 N•m (28 lb•in).
• Older Drives - Remove the I/O Cassette (see
Installation Instructions for details). The green/
yellow CM Cap jumper wire is located on the
back of chassis and should be connected to
ground with a metal screw. If necessary, remove
the insulation from the wire terminal and
connect to chassis with a metal M5 x 12 screw.
Torque screw to 3.2 N•m (28 lb•in).
2. MOV/Input Filter Cap jumper wires should be
connected to ground with a metal screw. Verify. If
necessary, remove the nylon screw/spacer and
insert a metal M5 x 12 screw.
Non-Solid Ground
1. CM Cap jumper wire should be insulated from
ground. Verify.
• Newer Drives - If necessary, remove the metal
screw and insert a M5 x 15 nylon screw/spacer.
• Older Drives - Remove the I/O Cassette (see
Installation Instructions for details). If
necessary, insulate/secure jumper wire to guard
against unintentional contact with chassis or
components.
2. MOV/Input Filter Cap jumper wires should be
insulated from ground with a nylon screw/spacer.
Verify. If necessary, remove the metal screw and
insert a M5 x 20 nylon screw/spacer.
(1) AC input drives only. MOV’s and input filter caps do not exist on DC input drives.
(2) When removing MOV’s, the input filter capacitor must also be removed.
WIRE RANGE: 14-1/0 AWG (2.5-35 MM2)
TORQUE: 32 IN-LB (3.6 N-M)
STRIP LENGTH: 0.67 IN (17 MM)
USE 75 C CU WIRE ONLY
POWER TERMINAL RATINGS
WIRE RANGE: 6-1/0 AWG (16-35 MM2)
TORQUE: 44 IN-LB (5 N-M)
STRIP LENGTH: 0.83 IN (21 MM)
GROUND TERMINAL RATINGS (PE)
300 VDC EXT PWR SPLY TERM (PS+, PS-)
WIRE RANGE: 22-10 AWG (0.5-4 MM2)
TORQUE: 5.3 IN-LB (0.6 N-M)
STRIP LENGTH: 0.35 IN (9 MM)
17
21
INPUT AC
OUTPUT
Optional
Communications
Module
9
CM Cap -
Older Drives
MOV / Input Filter Cap
MOV
CM Cap - Newer Drives
