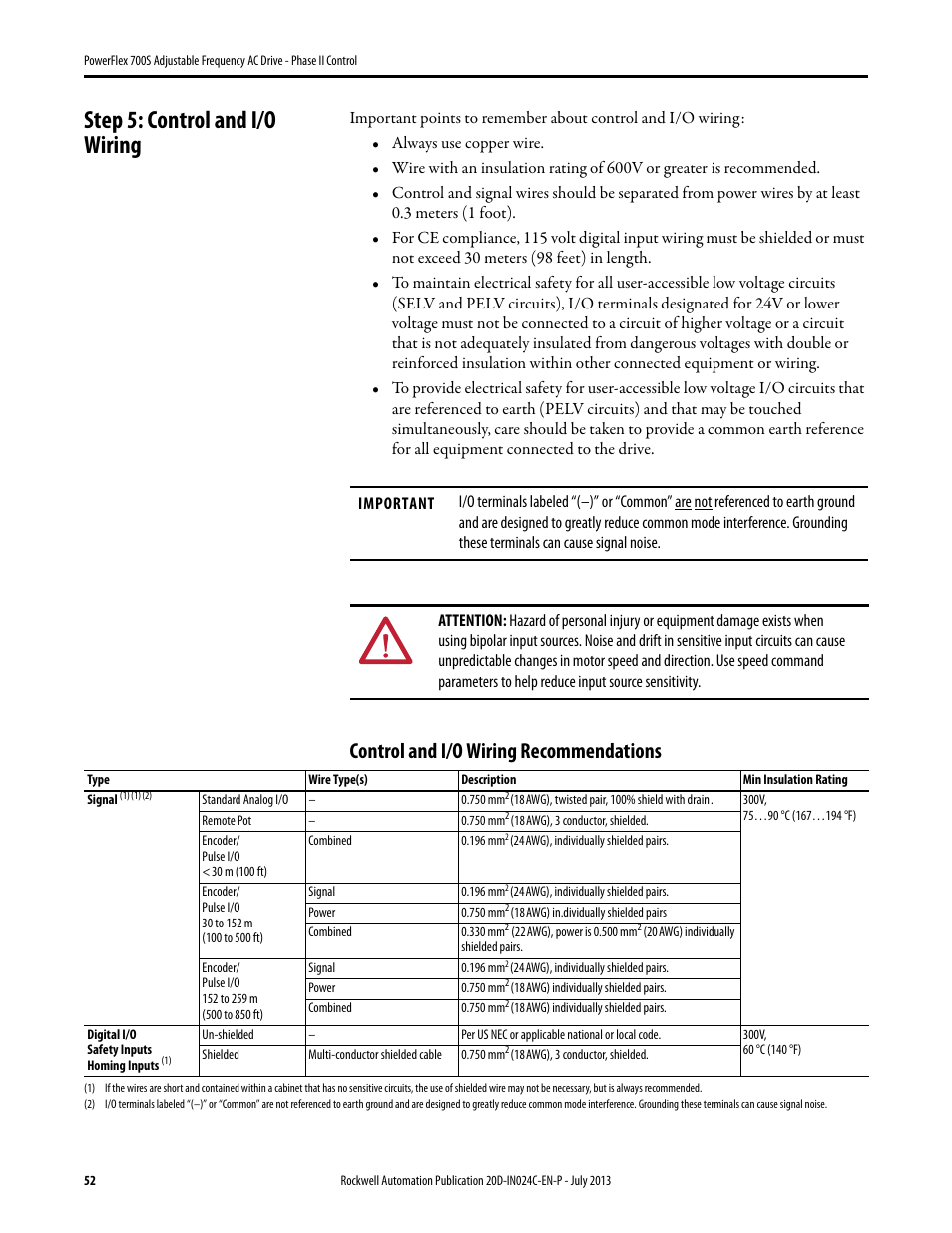

Step 5: control and i/o wiring, Control and i/o wiring recommendations – Rockwell Automation 20D PowerFlex 700S Phase II Drive Frames 1...6 Installation Instructions User Manual
Page 52
