Power terminal, Blocks on, For t – Rockwell Automation 20D PowerFlex 700S Phase II Drive Frames 1...6 Installation Instructions User Manual

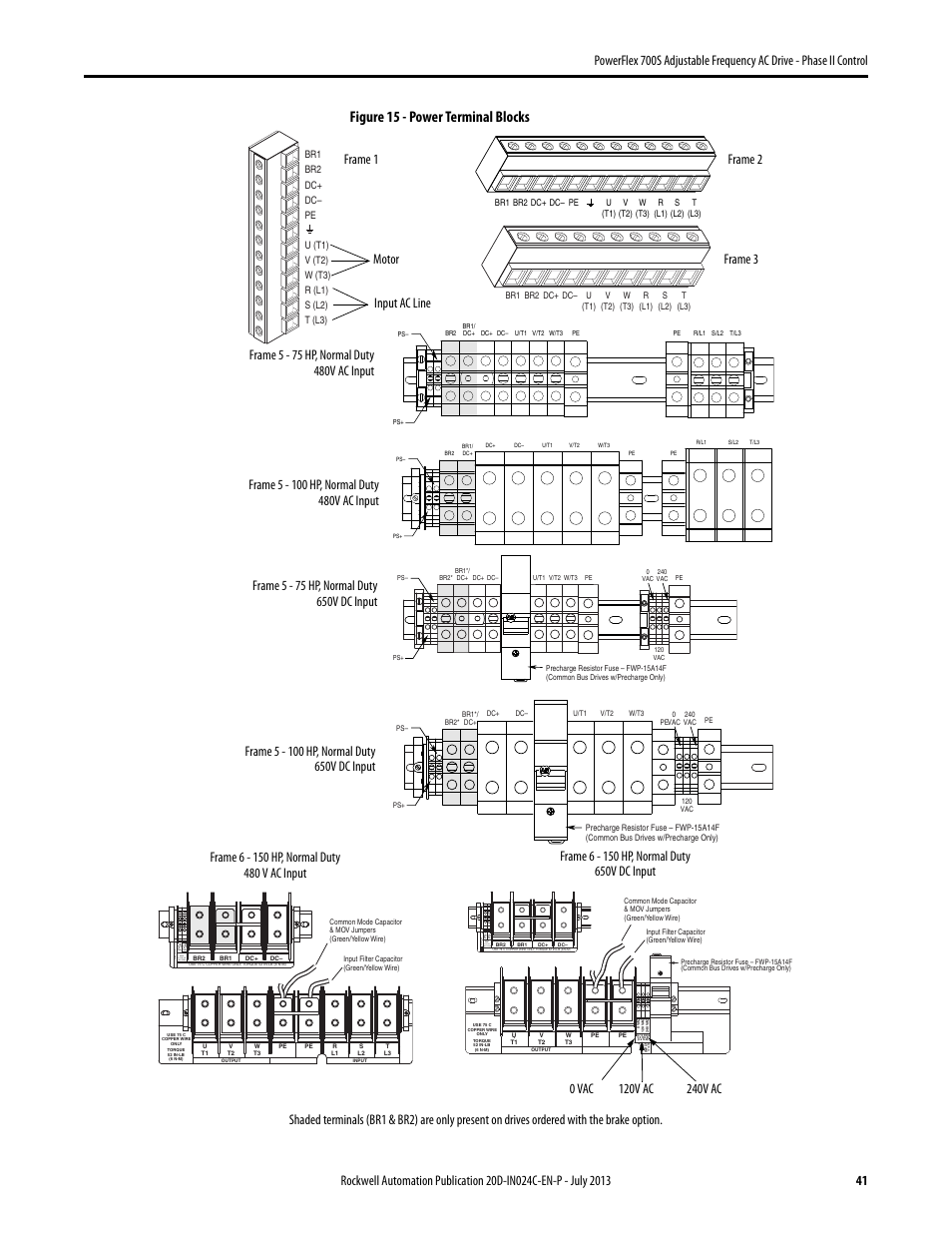

Page 41: Figure 15 - power terminal blocks
This manual is related to the following products:
