TRANSPORTING THE MOWER CONDITIONER

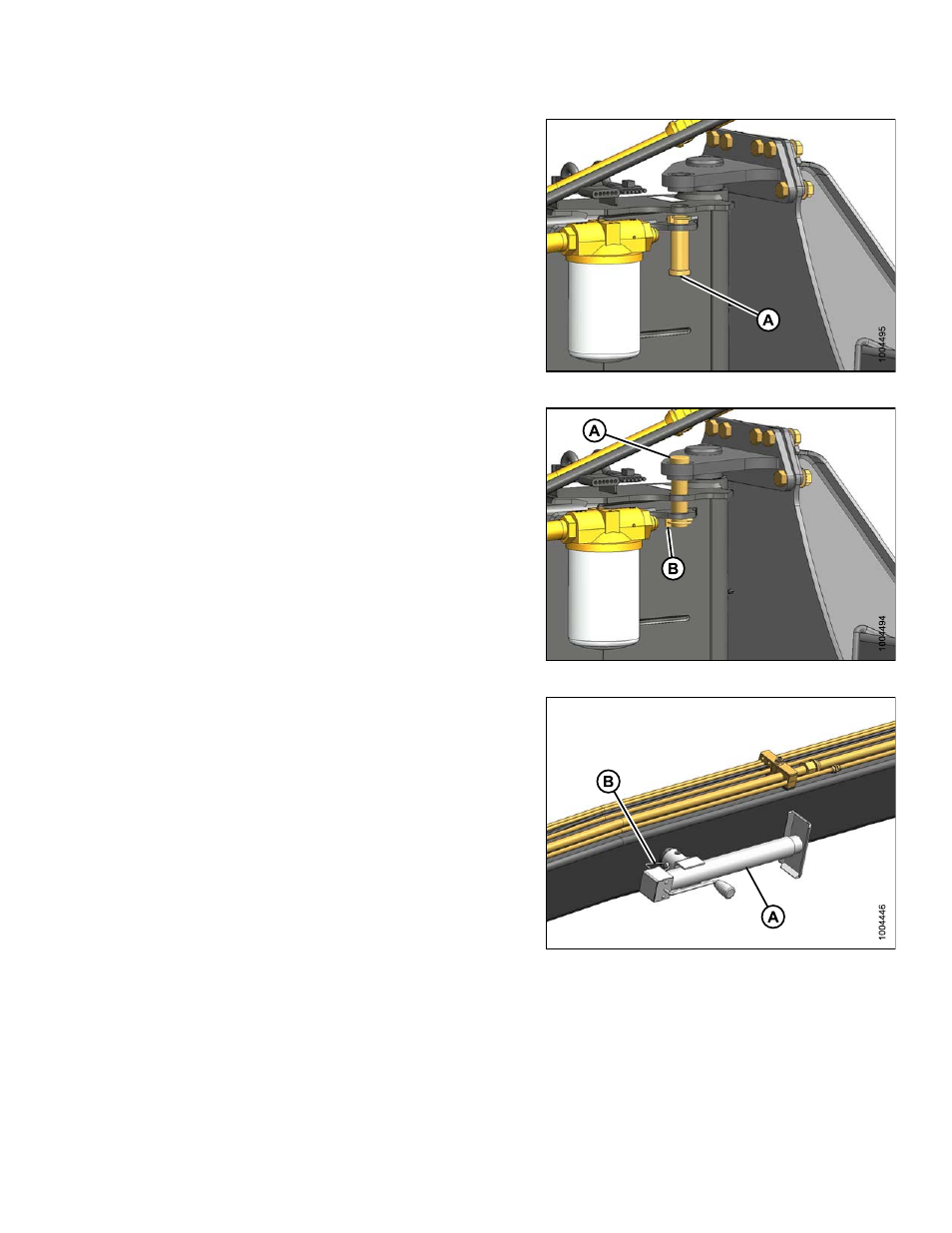

6. Remove transport lock pin from storage at the aft end
of the hitch.
Figure 6.13
7. Line up holes in hitch and frame and install transport
lock pin (A).
8. Secure with lynch pin (B).
Figure 6.14
9. Check that jack (A) is properly attached in storage
position on hitch and secured with pin (B).
10. Ensure tires are properly inflated.
11. Keep slow moving vehicle (SMV) sign, reflectors, and
lights clean and visible at rear of mower conditioner.
Figure 6.15
169456
75
Rev. D
