Page 197
3. Reconnect hoses EXCEPT at fitting (A) to pump.
4. Fill pump case with clean hydraulic oil at fitting (A).
5. Attach case drain hose to fitting (A) and tighten.
6. Install hose straps.
7. Reinstall driveline.
Refer to section
.
8. Check reservoir oil level and add oil if required. See
Section
8.9.2 Hydraulic Oil Reservoir, page 199
.

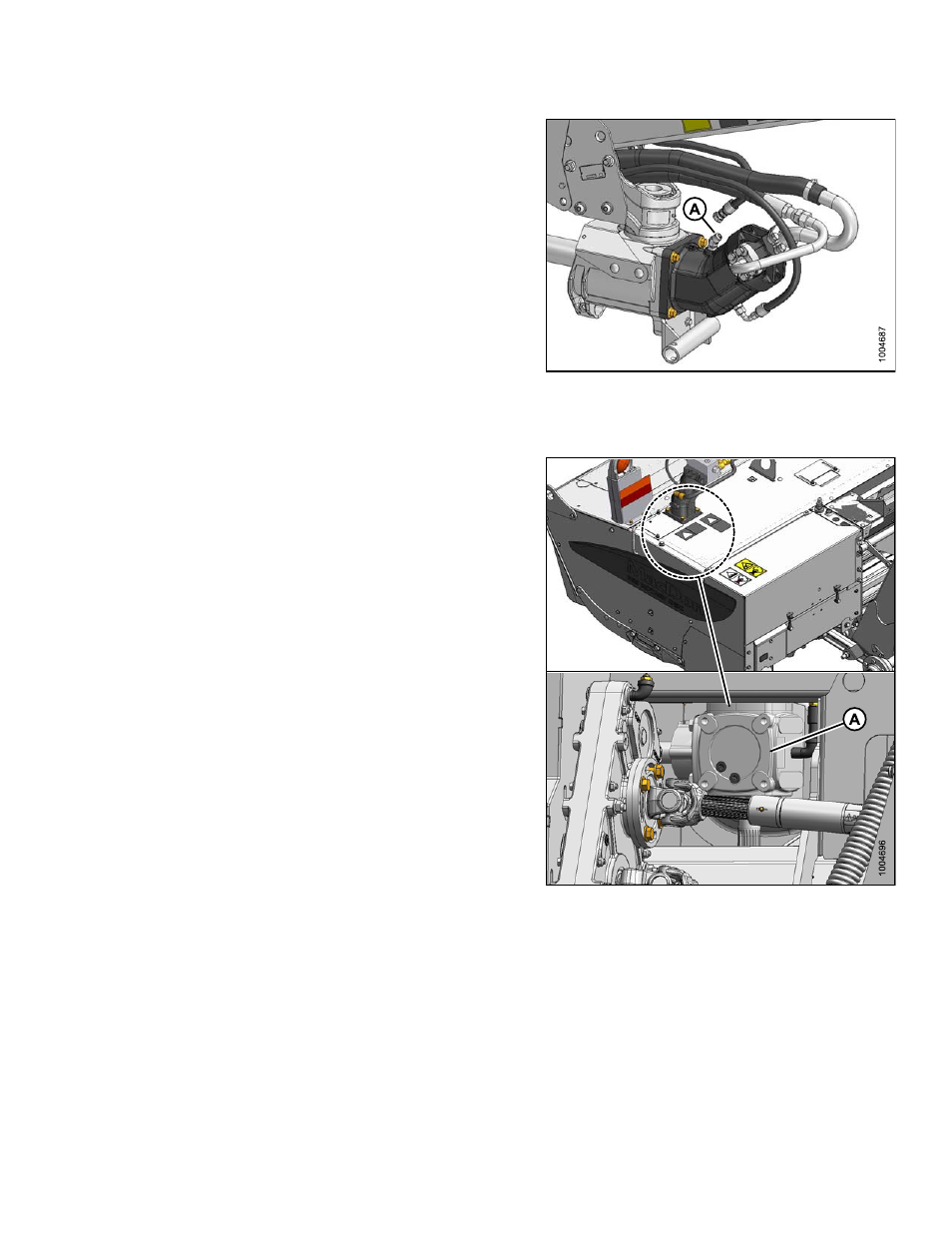

Figure 8.89
8.8.4 Bevel Gearbox
The bevel gearbox (A), which transfers power from
the hydraulic motor to the mower conditioner drives, is
located inside the drive compartment at the left end of the
mower conditioner.
If repairs are required, it should be removed and serviced
at your Dealer. Contact your MacDon Dealer.
The only regular servicing required is maintaining the
lubricant level and changing the lubricant according to
the intervals specified in this manual. See Section
Maintenance Schedule/Record, page 138
.
Figure 8.90
169456
187
Rev. D
