MAINTENANCE AND SERVICING

Replacing the Cutter Blades

Follow these steps to replace the cutter blades:

CAUTION

Cutter blades have two cutting edges. Exercise
caution when working around the blades. Blades
are sharp, and can cause serious injury. Wear
gloves when handling blades.

DANGER

To avoid bodily injury or death from unexpected
start-up or fall of raised machine:

stop

engine, remove key, and engage lift cylinder
lock-out valves before going under machine for
any reason.

1. Raise mower conditioner fully, shut off engine, and

remove key.

2. Engage lift cylinder lock-out valves. See Section

5.3

Lift Cylinder Lock-Out Valves, page 30

.

3. Open cutterbar door(s). Refer to Section

5.5 Cutterbar

Doors, page 34

.

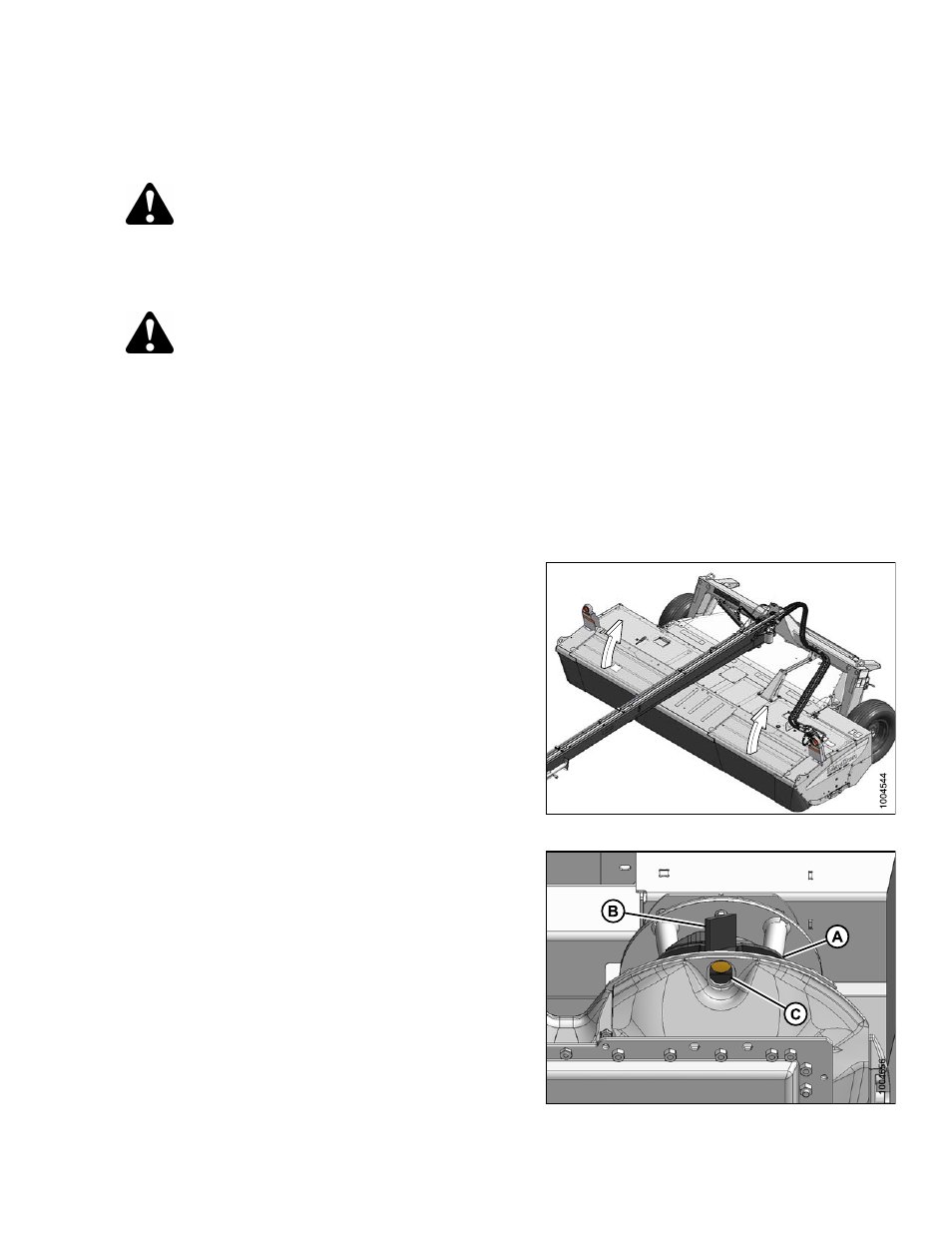

Figure 8.43

4. Rotate disc (A) so that blade (B) faces forward and

lines up with hole (C) in rock guard.

5. Place a block of wood between two discs to prevent

disc rotation while loosening blade bolts.

6. Clean debris from blade attachment area.

Figure 8.44

169456

165

Rev. D
