Hazard lights: replacing the lamp bracket, 2tail/brake lights, Tail/brake lights: replacing bulbs and lenses – MacDon R85 Rotary Disc 16 Foot Pull-Type User Manual
Page 219: Tail/brake lights

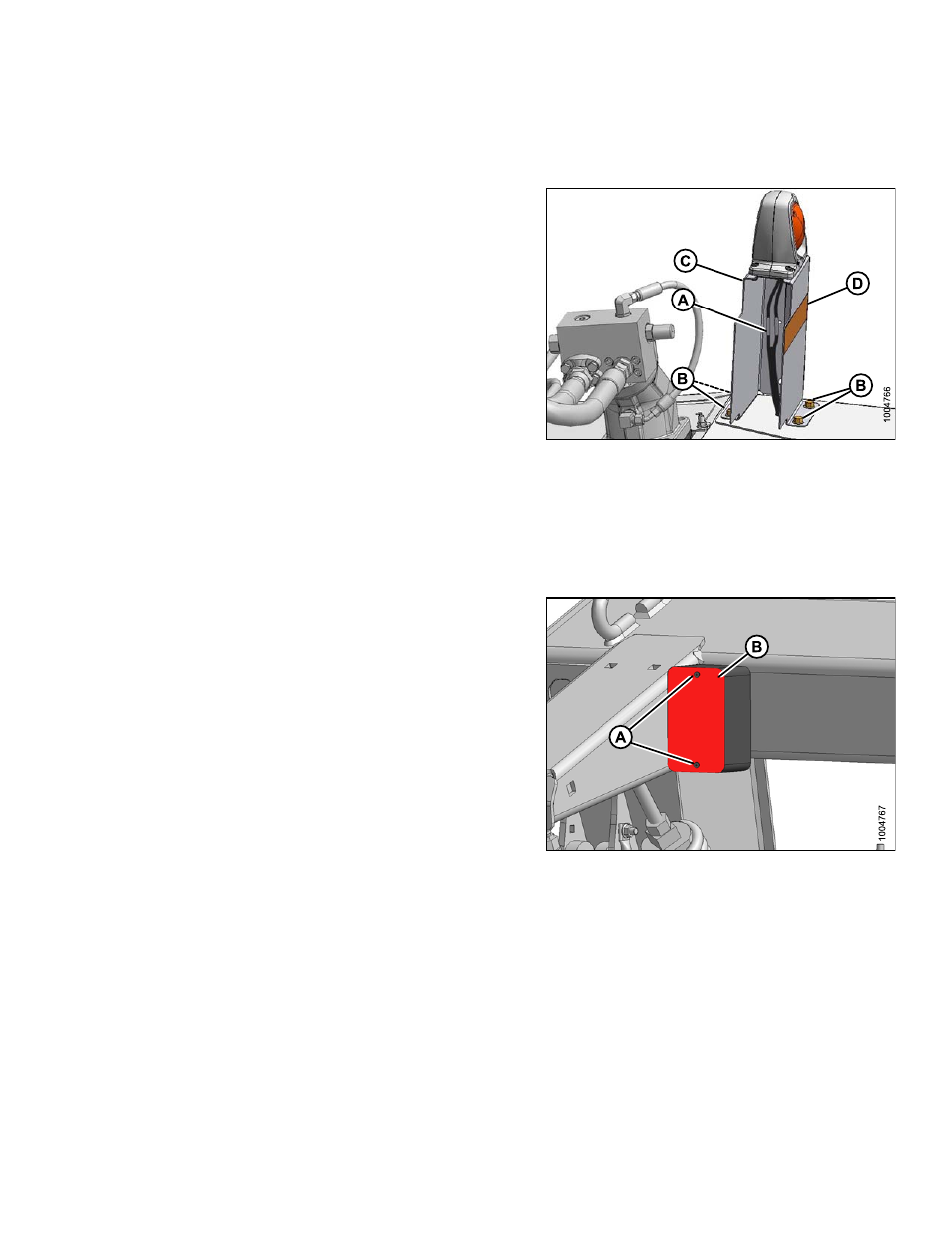

Hazard Lights: Replacing the Lamp Bracket
Follow these steps to replace the lamp bracket:
1. Disconnect lamp wires from wiring harness at
connectors (A).
2. Remove four bolts (B) and remove lamp assembly (C)
from mower conditioner.
3. Place new lamp assembly (C) on mower conditioner
and secure with four bolts (B).
NOTE: Ensure amber reflector (D) faces the front
of the machine.
4. Connect lamp wires to wiring harness (A).
Figure 8.135
8.10.2 Tail/Brake Lights
Tail/Brake Lights: Replacing Bulbs and Lenses
Follow these steps to replace tail/brake light bulbs or lenses:
1. Using a Phillips screwdriver, remove screws (A) from
fixture and remove plastic lens (B).
2. Replace bulb and reinstall plastic lens (B) and
screws (A).
Figure 8.136
169456
209
Rev. D
