MacDon R85 Rotary Disc 16 Foot Pull-Type User Manual
Page 189

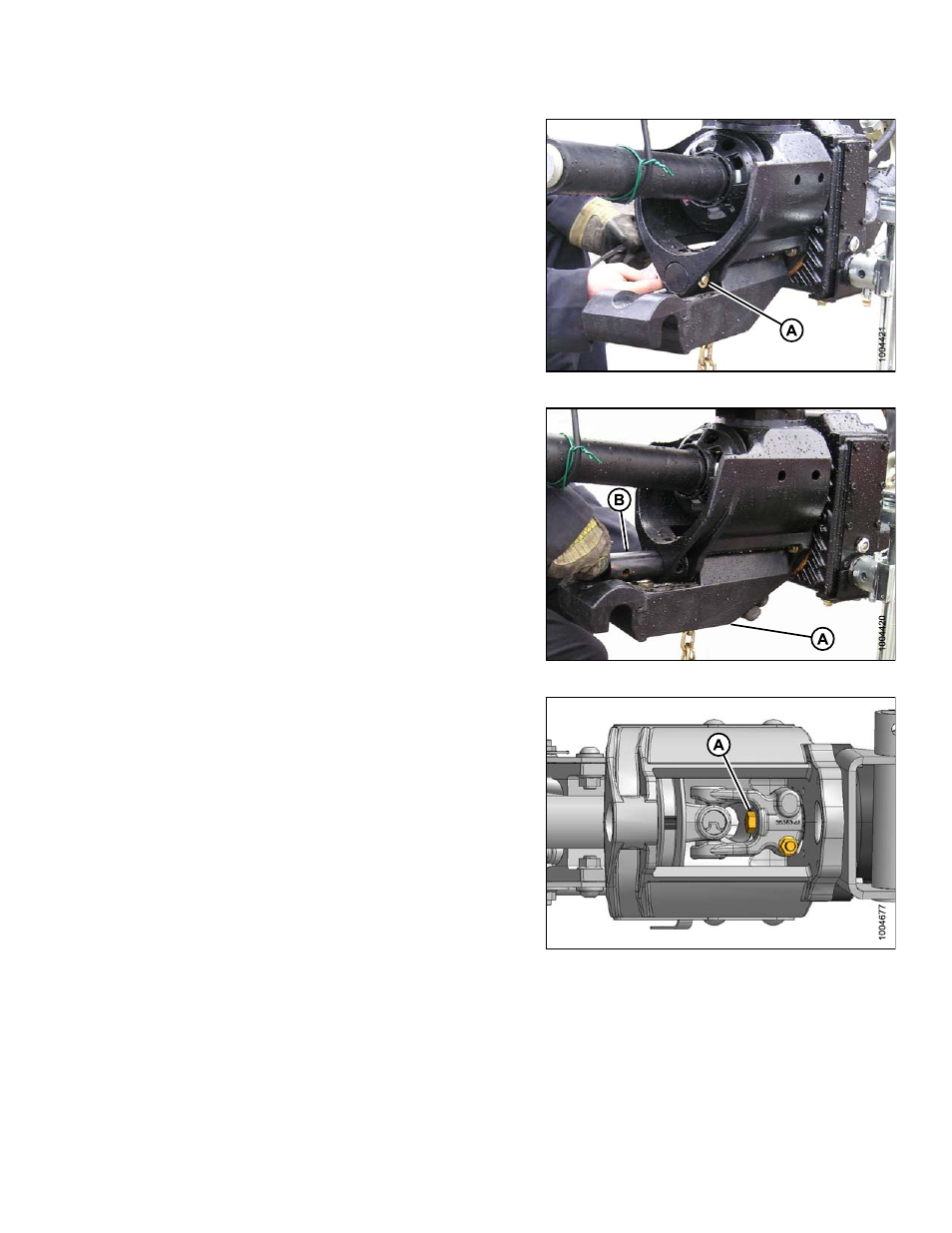

4. Remove cotter pin and washer on clevis pin (A) and
remove clevis pin.
Figure 8.69: Drawbar adaptor shown
5. Hold hitch adapter (A) and remove swivel pin (B).
6. Remove hitch adapter.
Figure 8.70
7. Turn driveline so that bolt (A) is accessible from
underside of casting.
8. Use a large wrench to keep driveline from turning and
remove bolt (A) and washers with a 15/16 in. wrench.
Figure 8.71
169456
179
Rev. D
