Replacing a disc: under driven deflector, Replacing a disc: under driveline deflector – MacDon R85 Rotary Disc 16 Foot Pull-Type User Manual
Page 169

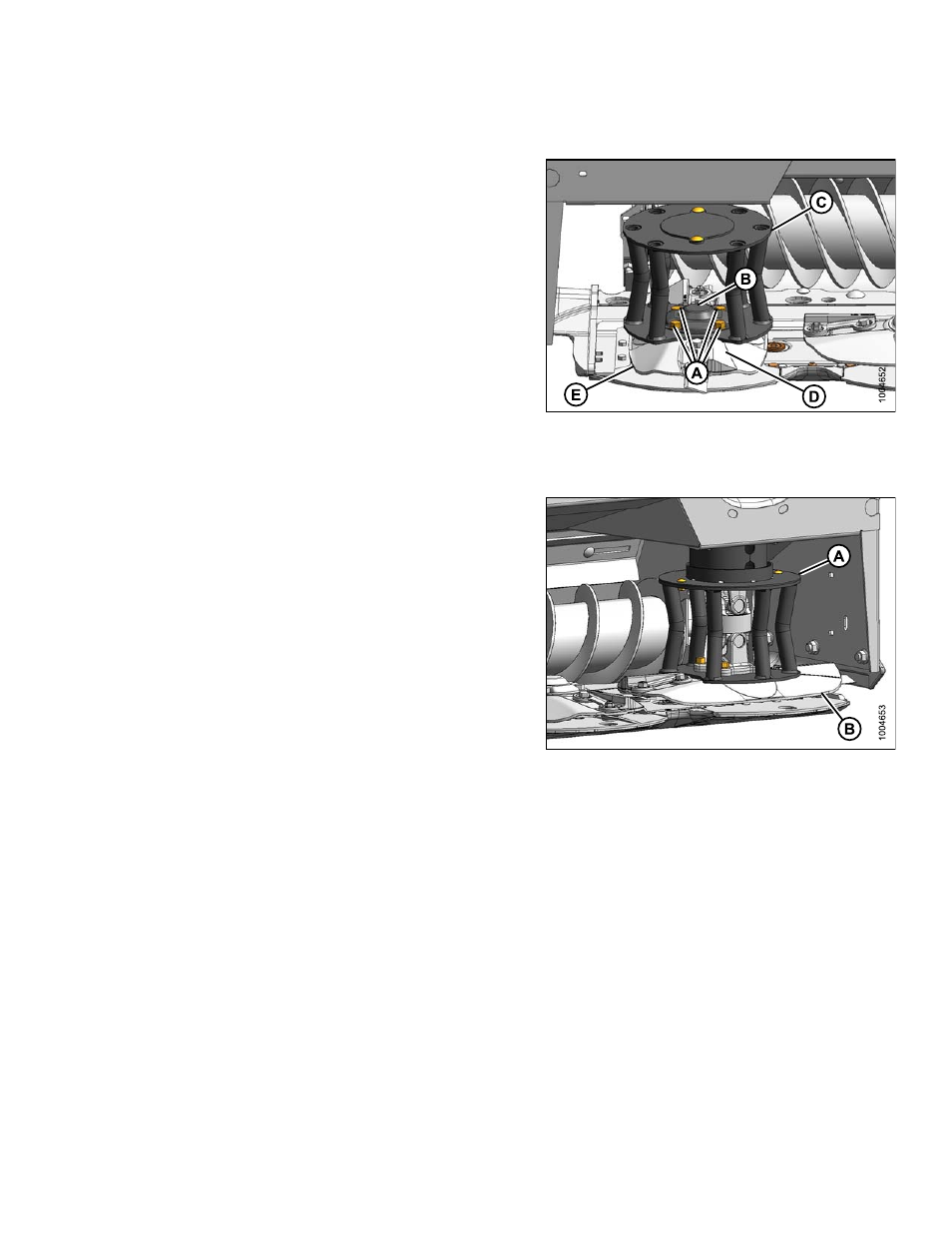

Replacing a Disc: Under Driven Deflector
1. Remove four bolts (A).
2. Remove cover (B), deflector (C), and disc (E).
3. Position new disc (E) on spindle, ensuring it is 90° to
adjacent discs.
4. Position deflector (C) on spindle so that it clears
accelerators (D).
5. Install cover (B) and secure with four bolts (A). Tighten
bolts to 92 ft·lbf (125 N·m).
Figure 8.31
Replacing a Disc: Under Driveline Deflector
Follow these steps to replace a disc (B) under the driveline
deflector (A):
Figure 8.32
169456
159
Rev. D
