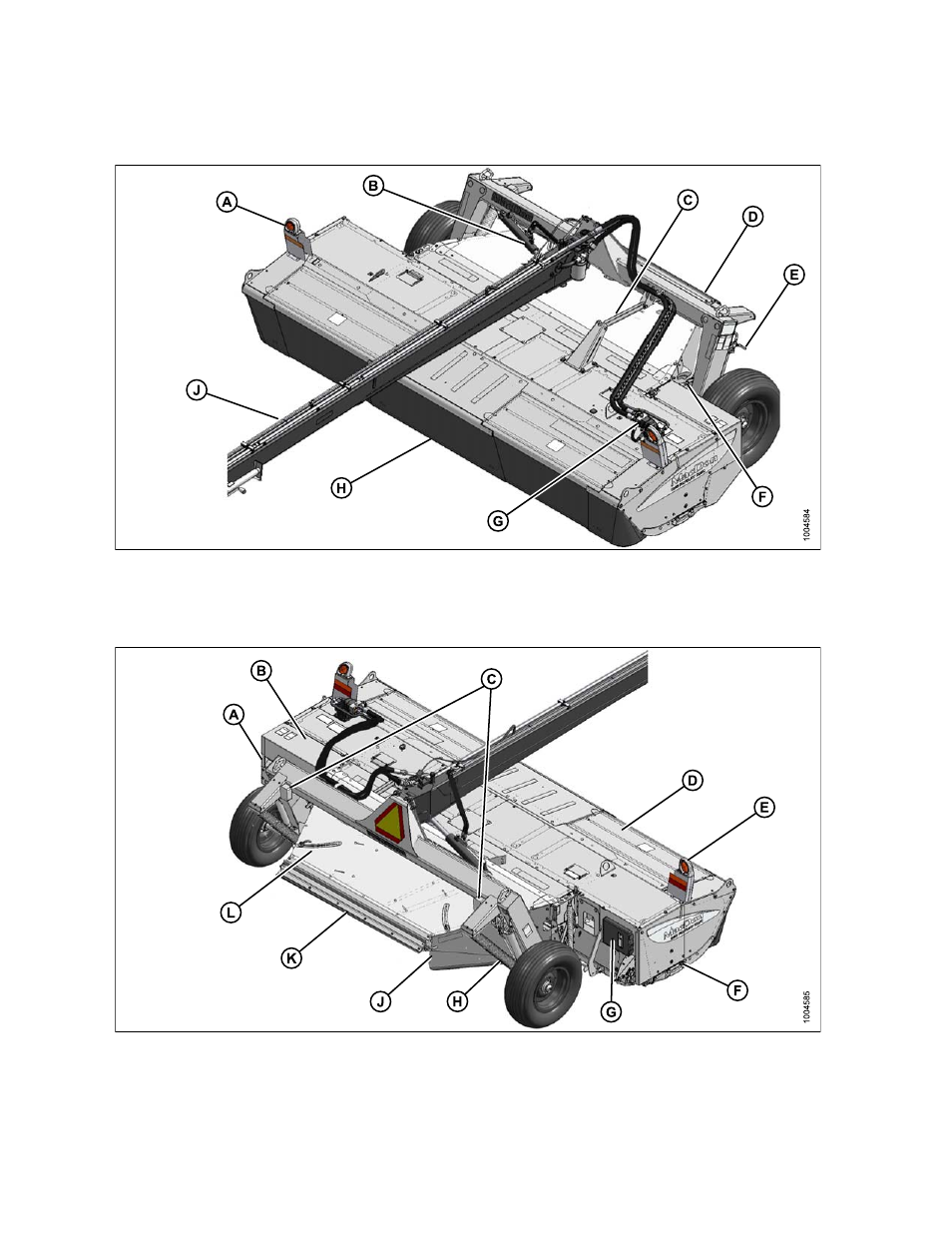

3 Component Identification

Figure 3.1

A - Hazard light

B - Steering cylinder

C - Center-link

D - Carrier frame

E - Lift cylinder lock-out valve

F - Baffle control

G - Drive motor

H - Front curtains

J - Articulated power turn (APT) hitch

Figure 3.2

A - mower conditioner

B - Driveshield

C - Tail lights

D - Door

E - Hazard light

F - Cutterbar

G - Manual case

H - Float spring

J - Side deflector

K - Rear deflector

L - Forming shield

169456

23

Rev. D
