8.8.2 Driveline Guard
Removing the Driveline Guard

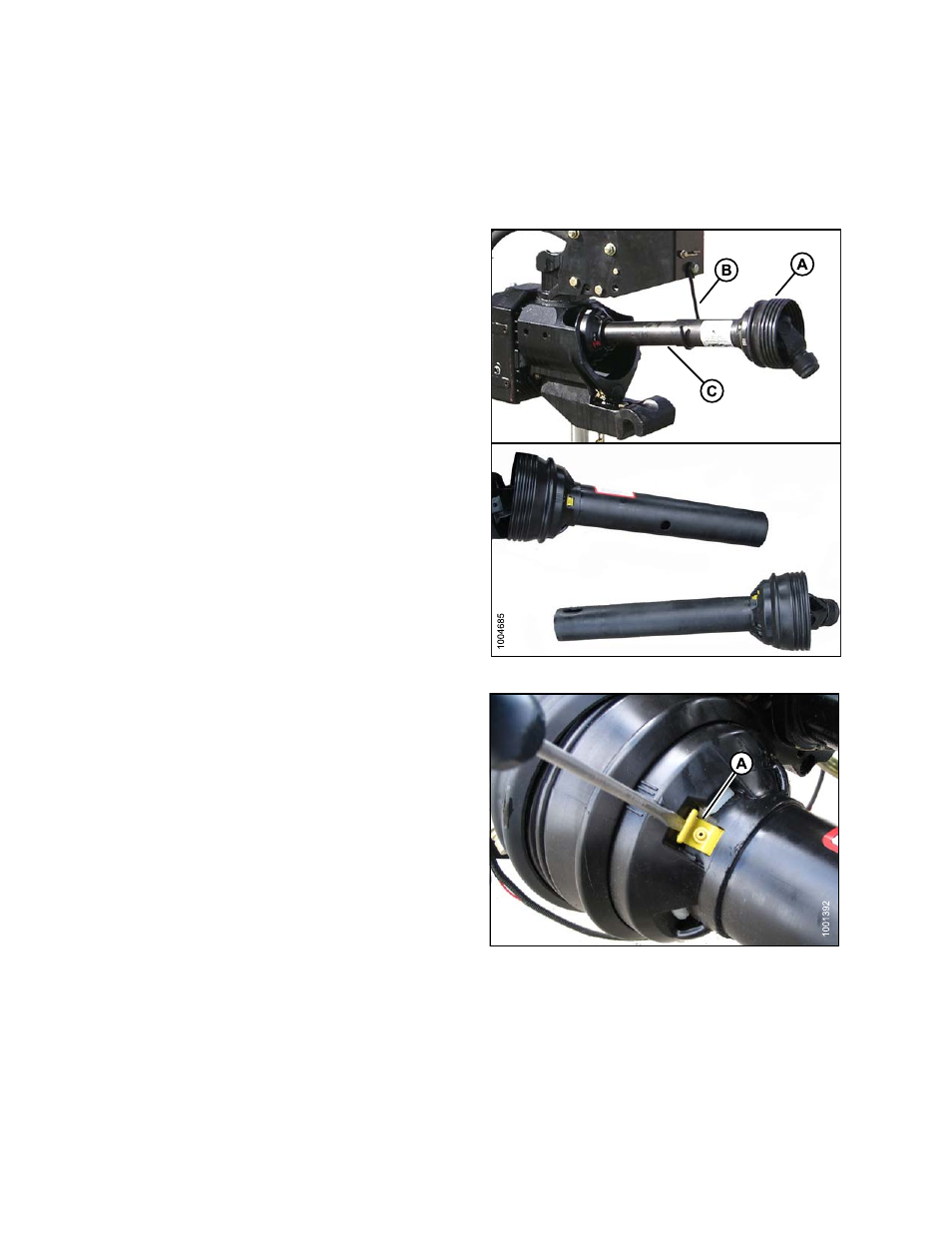

Follow these steps to remove the driveline guard:
1. Lift driveline (A) from hook (B) and extend driveline until
it separates. Hold aft part (C) of driveline to prevent it
from dropping.
Figure 8.77
2. Release grease zerk/lock (A) with a screwdriver.
Figure 8.78
169456
182
Rev. D
