MAINTENANCE AND SERVICING

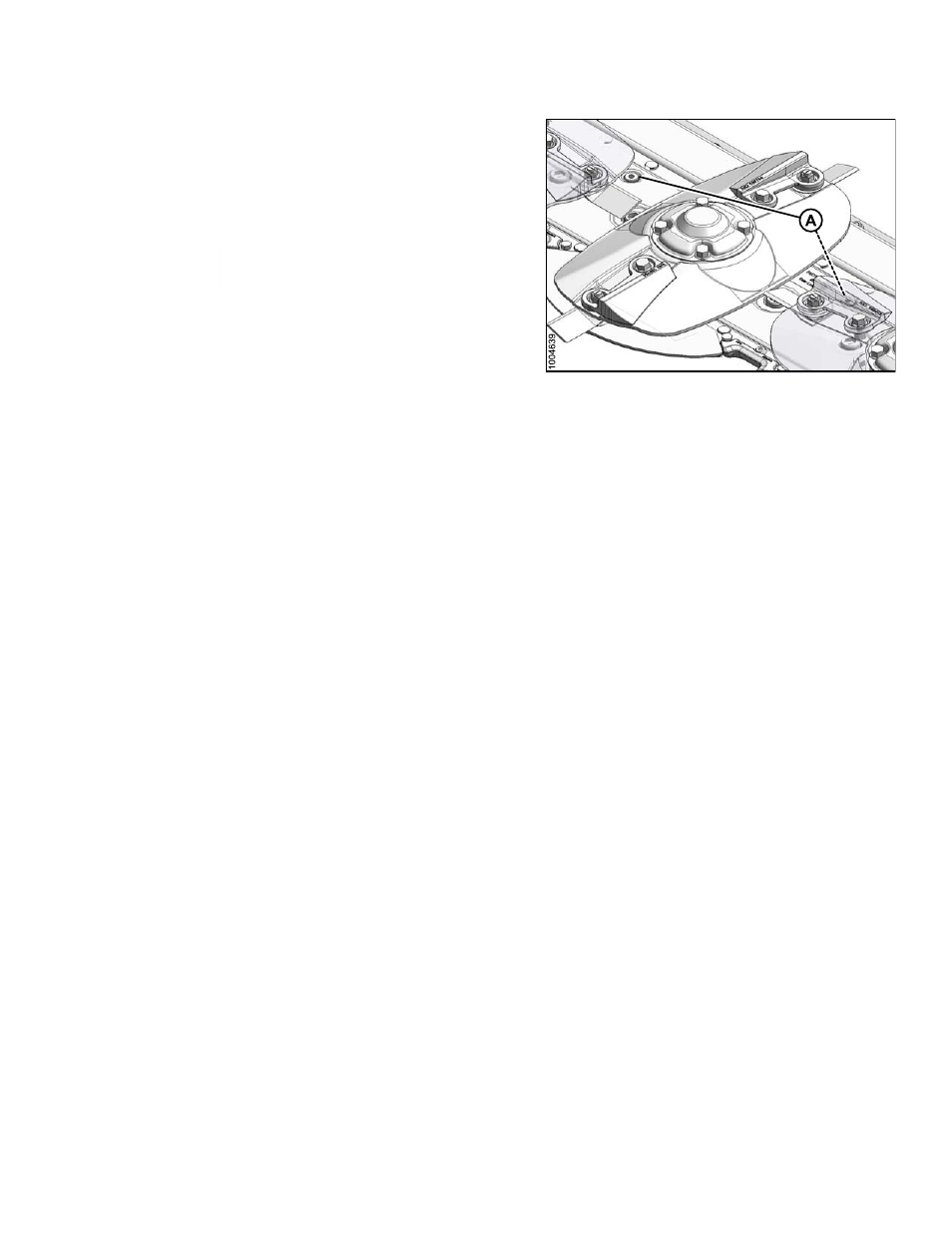

8. Remove filler plug at both locations (A).
9. Add exactly 4.4 quarts US (4.25 liters) of Traxon SAE
80W90 lubricant through filler hole (A) as follows:
NOTE: See figure
8.23: Cutterbar filler plug
locations, page 153 for locations of
filler holes.
IMPORTANT
DO NOT overfill the cutterbar. Overfilling can
cause overheating and damage to or failure of the
cutterbar will occur.
10. Replace filler plug (A).
11. Close cutterbar doors.
12. Start engine and raise mower conditioner off blocks.
13. Back away from blocks and lower mower conditioner.
14. Stop engine and remove key from ignition.
Figure 8.26
