6.17.14.2 Rear Deflector (Fluffer Shield)

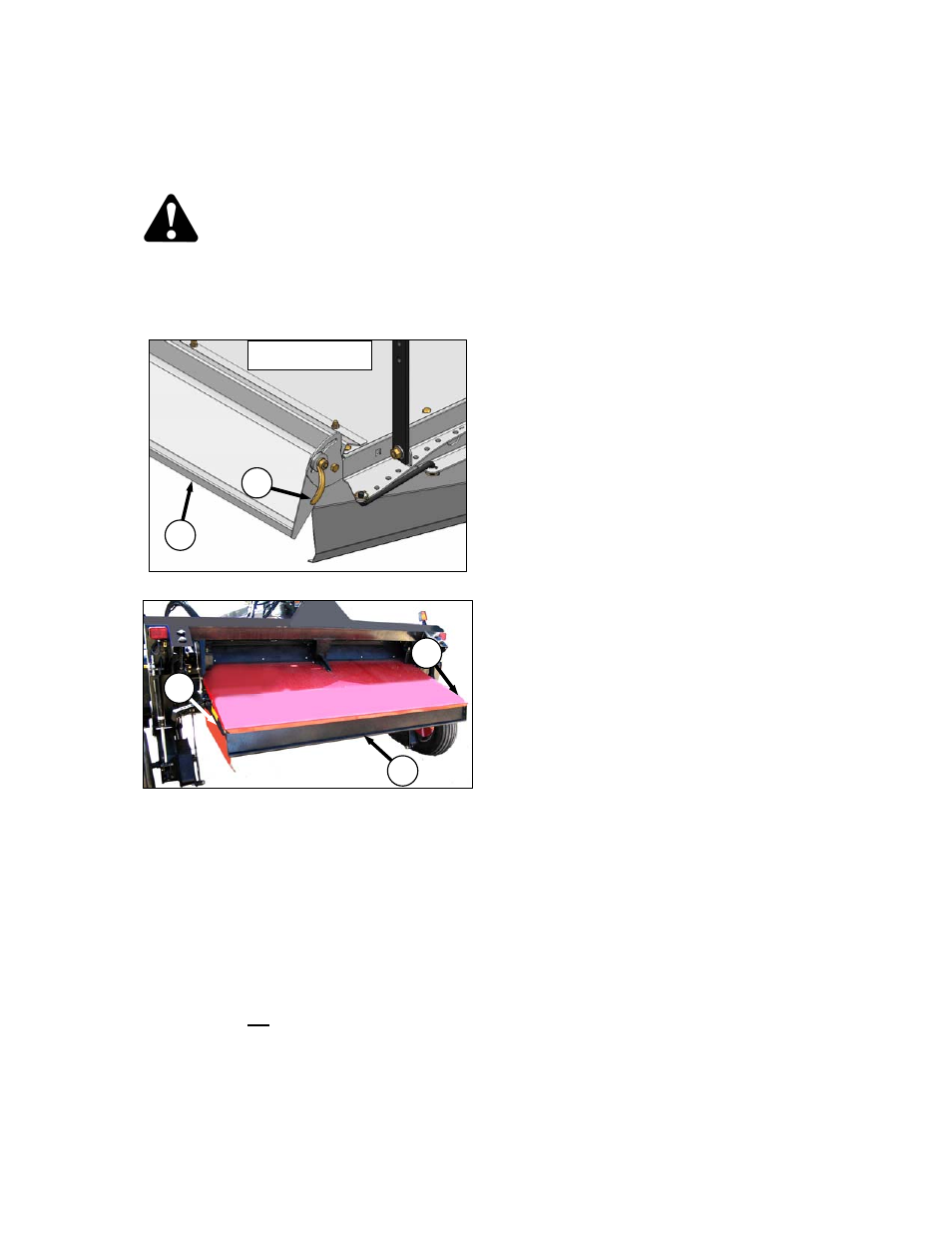

The rear deflector (G) slows the crop exiting the
conditioner rolls, directs the flow downward, and
fluffs the material.
CAUTION
To prevent accidental movement of
windrower, place all controls in NEUTRAL or
in PARK, engage park brake (if applicable),
shut off engine, and remove key.
a. For more crop control in light material, lower the
deflector (G) by pushing down on one side of the
deflector, and then on the other side. Locking
handles (H) are located at either end of
deflector, and may be loosened slightly.
b. For heavier crops, raise the deflector (G) by
pulling up on one side, and then on the other
side.
NOTE
For even windrow formation, be sure the
deflector is not twisted.
PULL-TYPE
H
H
G
SELF-PROPELLED
G
H
BOTH SIDES
