7.4 DRIVESHIELDS

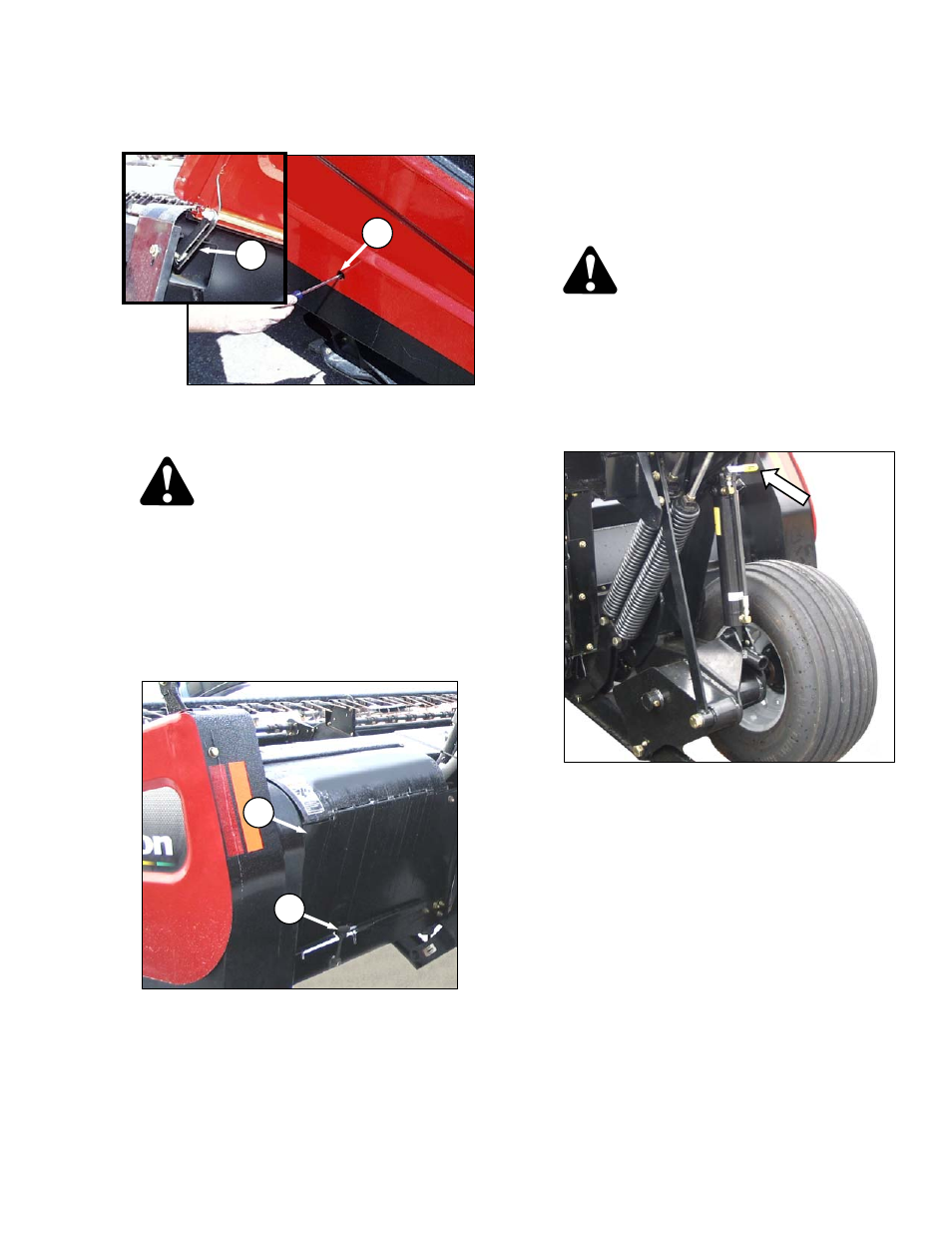

a. To open LH and RH driveshields on header,
press a screwdriver against latch in opening at
(A).
CAUTION
Ensure shield lock engages in the open
position as shown at (B) before letting go of
shield.
b. To close, push shield slightly farther open, and
move lock (B) out of the engagement slot. Lower
shield by hand, and release about 12 in.
(300 mm) from fully closed position. Shield will
self-latch.
c. To open driveline shield, disengage rubber latch
(C), and open shield (D).
d. To close, lower shield (D), and engage rubber
latch (C).
7.5 LIFT CYLINDER LOCK-OUTS
7.5.1 Self-Propelled
Refer to your Windrower Operator’s Manual.
7.5.2 Pull-Type
DANGER
To avoid bodily injury or death from
unexpected start-up or fall of raised
machine; stop engine, remove key and
engage lift cylinder lock-out valves before
going under machine for any reason.
a. Raise header fully, shut off engine, and remove
key.
b. Move handle to horizontal position on both
header lift cylinder lock-out valves.
C
D
A
B
