SECTION 6 OPERATION
169000 / 169040
41
Revision E

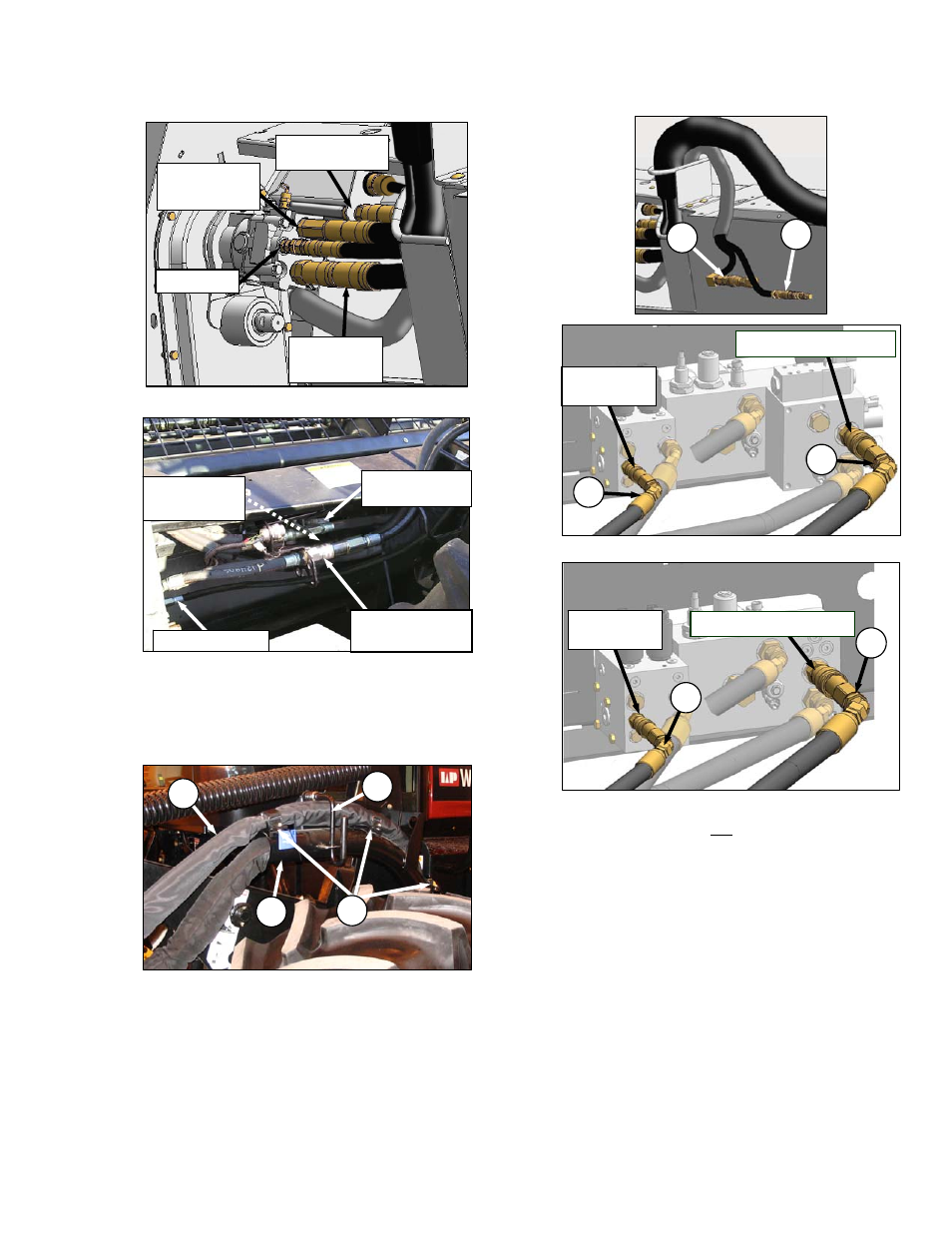

j. Push hose connectors onto mating receptacles
(as shown) until collars on receptacles snap into
lock position.
k. Route auger return and reel pressure hose
bundle (H) from header to windrower, and locate
bundle above existing hose support (K) (as
shown).
l. Secure with three straps (L), and lower lever (D).
m. If valve blocks are not configured as shown
above, install required fittings as described in
A30-S and A40-D Auger Self-Propelled
Windrower Header Unloading and Assembly
Instructions - MD Part #169078 that was
supplied with your A40-D header.
n. Push auger pressure (A) and auger/reel return
(B) hose couplers onto mating receptacles on
valve block until collar on receptacle snaps into
lock position.
o. Proceed to Section 6.6.3 Configure Reverser
Valve Jumper Hose.
M200 - WITHOUT REVERSER VALVE
A
B
AUGER
PRESSURE
AUGER/REEL RETURN
M200 - WITH REVERSER VALVE
A
B
AUGER
PRESSURE
AUGER/REEL RETURN
A B
H
K L
D
STANDARD HEADER
KNIFE and
CONDITIONER
PRESSURE
CASE DRAIN
KNIFE and
CONDITIONER
RETURN
REEL and AUGER
PRESSURE
GRASS SEED HEADER
KNIFE PRESSURE
(FEMALE FITTING
AT HEADER)
KNIFE RETURN
(MALE FITTING
AT HEADER)
CASE DRAIN
AUGER and REEL
PRESSURE
