6.3 TRACTOR SETUP: PULL-TYPE
6.3.1 Tractor Requirements
HEADER
WIDTH
MINIMUM
POWER
HP (KW)
MINIMUM
DRAWBAR
CAPACITY
LBF (N)
MINIMUM
HYDRAULICS
psi (MPA)
14 FT
90
(68)
1400
(6227)
2000
(13.7)
16 FT
110
(83)
1450
(6449)
18 FT
130
(98)
1500
(6672)
NOTE
Tractor must be equipped with a seven
terminal outlet to supply power to the
mower conditioner's warning lights.

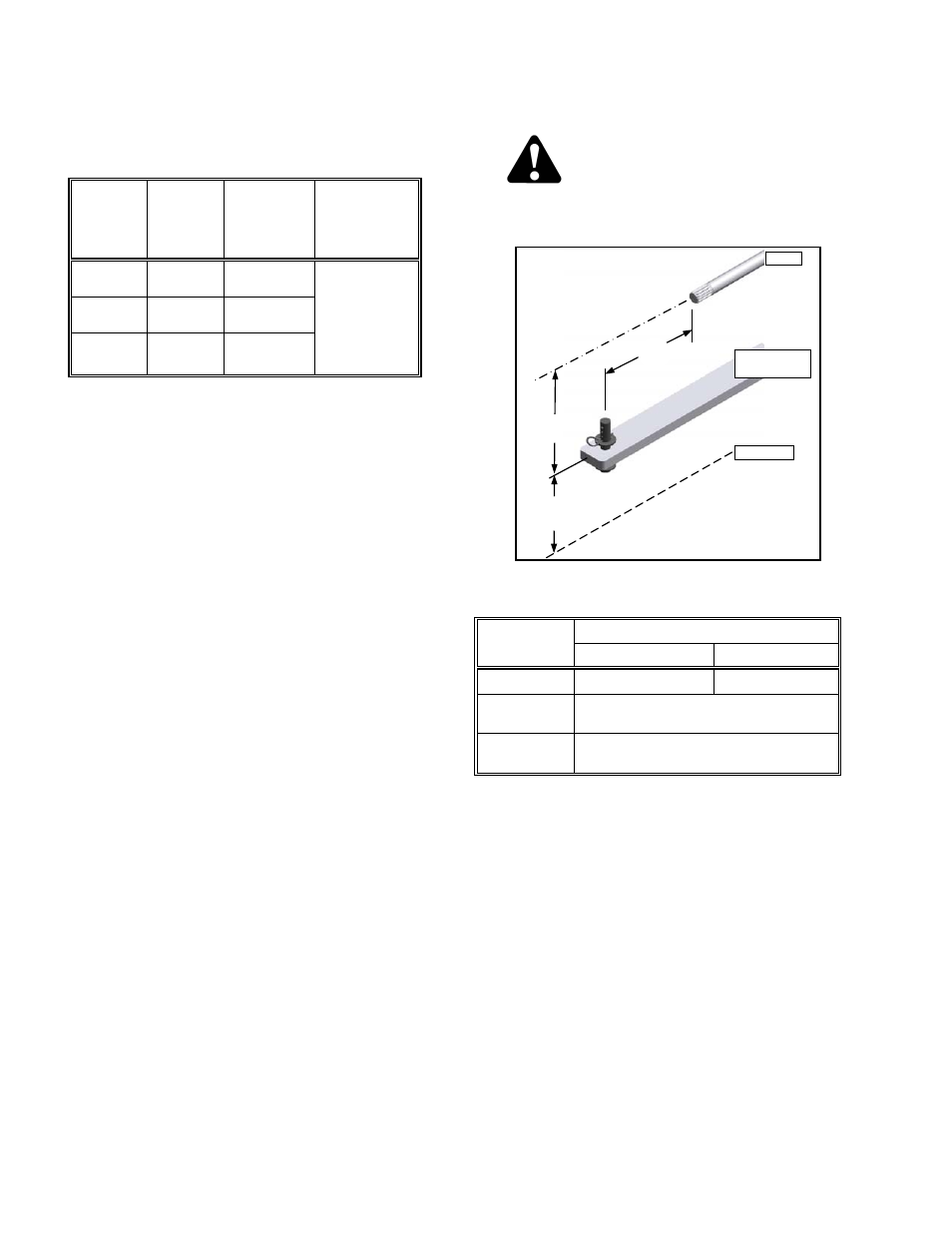

6.3.2 Drawbar Adjustment
CAUTION
Shut off tractor, engage parking brake, and
remove key before working around hitch.
Adjust tractor drawbar to meet ASAE Standard
specifications as listed below:
DIMENSION
1000 RPM PTO
1.37 IN. DIA. 1.75 IN. DIA.
X 16 in. (406 mm) 20 in. (508 mm)
Y
6–12 in. (152–305 mm)
8 in. (203 mm) Recommended
Z
13–17 in. (330–432 mm)
16 in. (406 mm) Recommended
IMPORTANT
Improper drawbar length can cause
vibration and premature pump gearbox
failure.
