MacDon A40-D User Manual
Page 133
SECTION 7 MAINTENANCE AND SERVICING
169000 / 169040
131
Revision E
f.

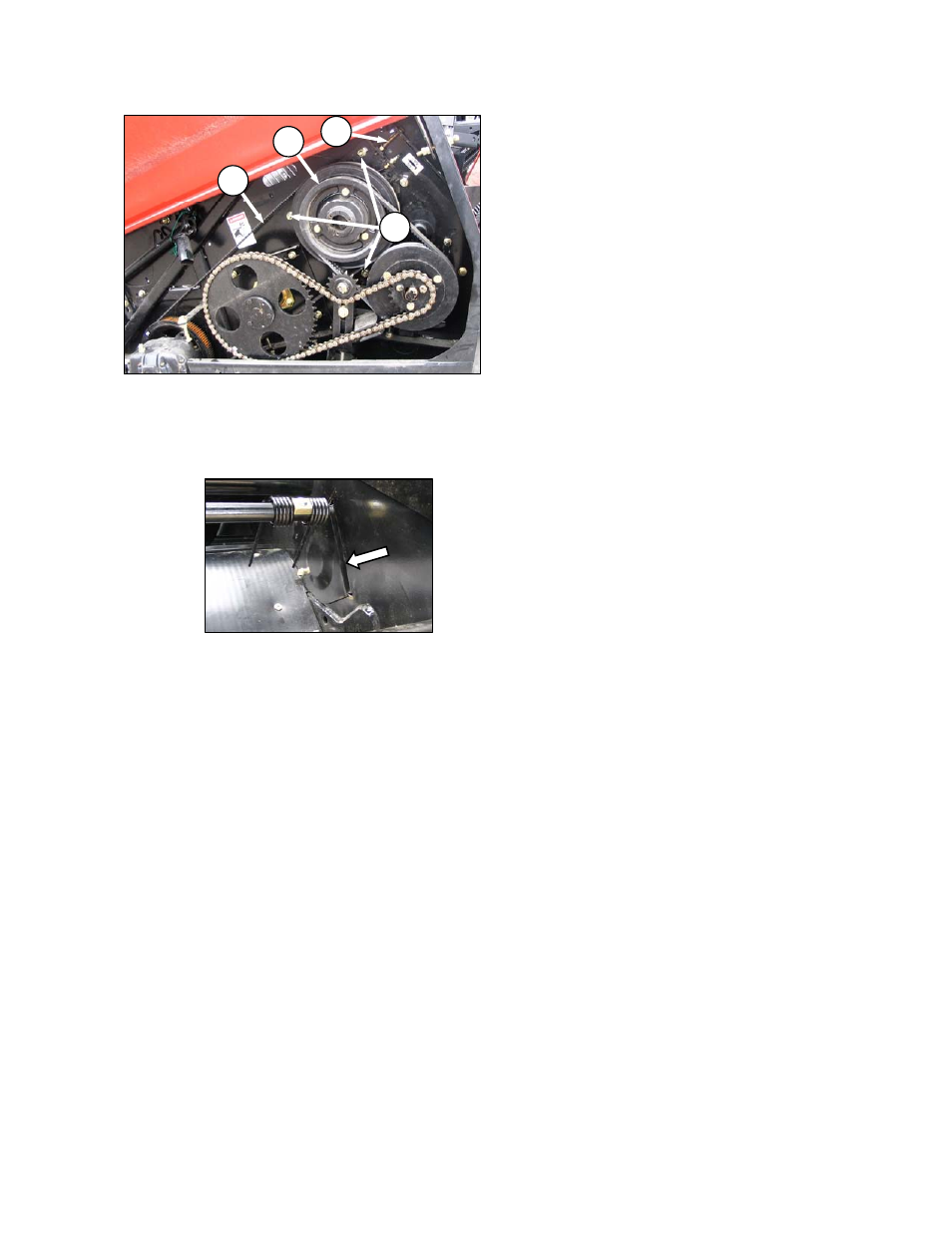

Loosen three nuts (B).
g. Loosen jam nut on adjuster bolt (C), and turn
adjuster bolt (C) so that sickle drive belt (A) can
be slipped off pulley (D).
h. Remove bolt-in plate in LH endsheet at sickle
drive box.
i. Slip belt off sickle drive box pulley, and route
belt through this hole to remove it.
B
C
A
D
