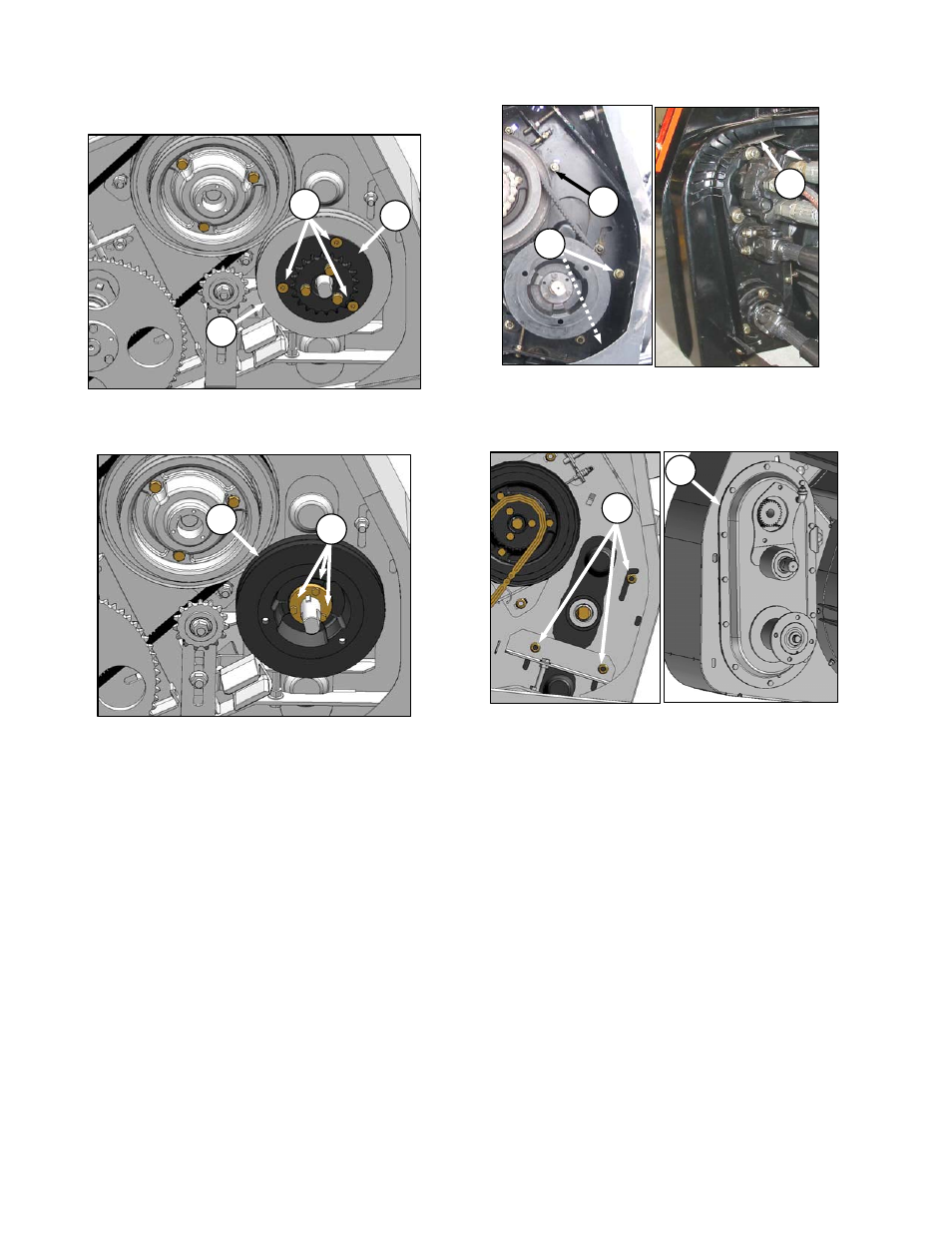

h. Remove auger drive pulley (K) as follows:
1. Remove three bolts (L) from hub (M), and
remove hub and sprocket.
2. Remove three bolts (N) from the tapered
bushing.
3. Install bolts in two threaded holes in
bushing, and tighten to release bushing.
4. Remove pulley (K), bushing, and key.
i. Remove two bolts (O), and nut and bolt (P)
attaching channel (Q) to endsheet, and remove
channel (Q).
j. Remove three flanged lock nuts (R) that secure
gearbox (S) to header endsheet, and remove
gearbox.
