SECTION 6 OPERATION
169000 / 169040
35
Revision E
6.6.2 A40-D
CAUTION
To prevent accidental movement of
windrower, place all controls in NEUTRAL or
in PARK, engage park brake (if applicable),
shut off engine, and remove key.
IMPORTANT
For windrowers with Reverser Kit
#B4656 to prevent draper header reel
damage and improper operation:
If switching between A40 Auger Header
and Draper header, hose plumbing to
reverser valve must be changed to suit the
header type. See Instruction MD Part
#169213 for proper plumbing for each
header type.
6.6.2.1 M100, M105
The M100 and M105 are factory-equipped with
four hoses.

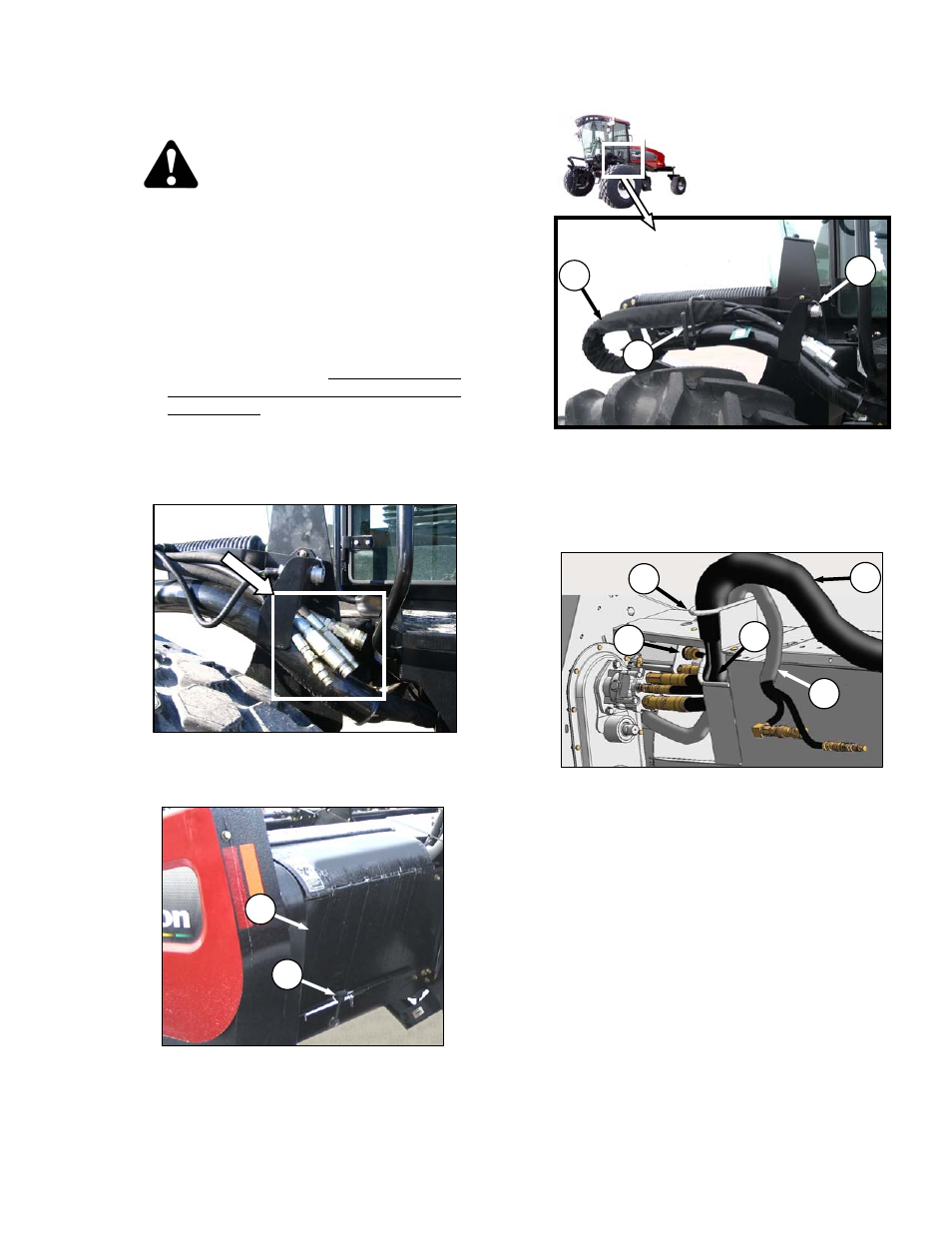

a. Disengage rubber latch (A), and open driveline
shield (B).
b. Remove the cap (C) from electrical connector,
and remove connector from support bracket.
c. Disengage and rotate lever (D) counterclockwise
to fully up position to release the hose bundle
(E).
d. Move hose/electrical bundle (E) to header.
e. Route bundle (E) from windrower through
support (F) and access hole (G) in header frame
alongside existing hose bundle (H) from header.
f. Remove cover on header electrical receptacle
(J).
g. Push connector onto receptacle, and turn collar
on connector to lock it in place.
h. Attach cover to mating cover on windrower
wiring harness.
i. Remove caps from hydraulic couplers, and
clean if necessary.
(continued next page)
G
H
J
E F
A
B
D
C
E
