SECTION 6 OPERATION
169000 / 169040
53
Revision E

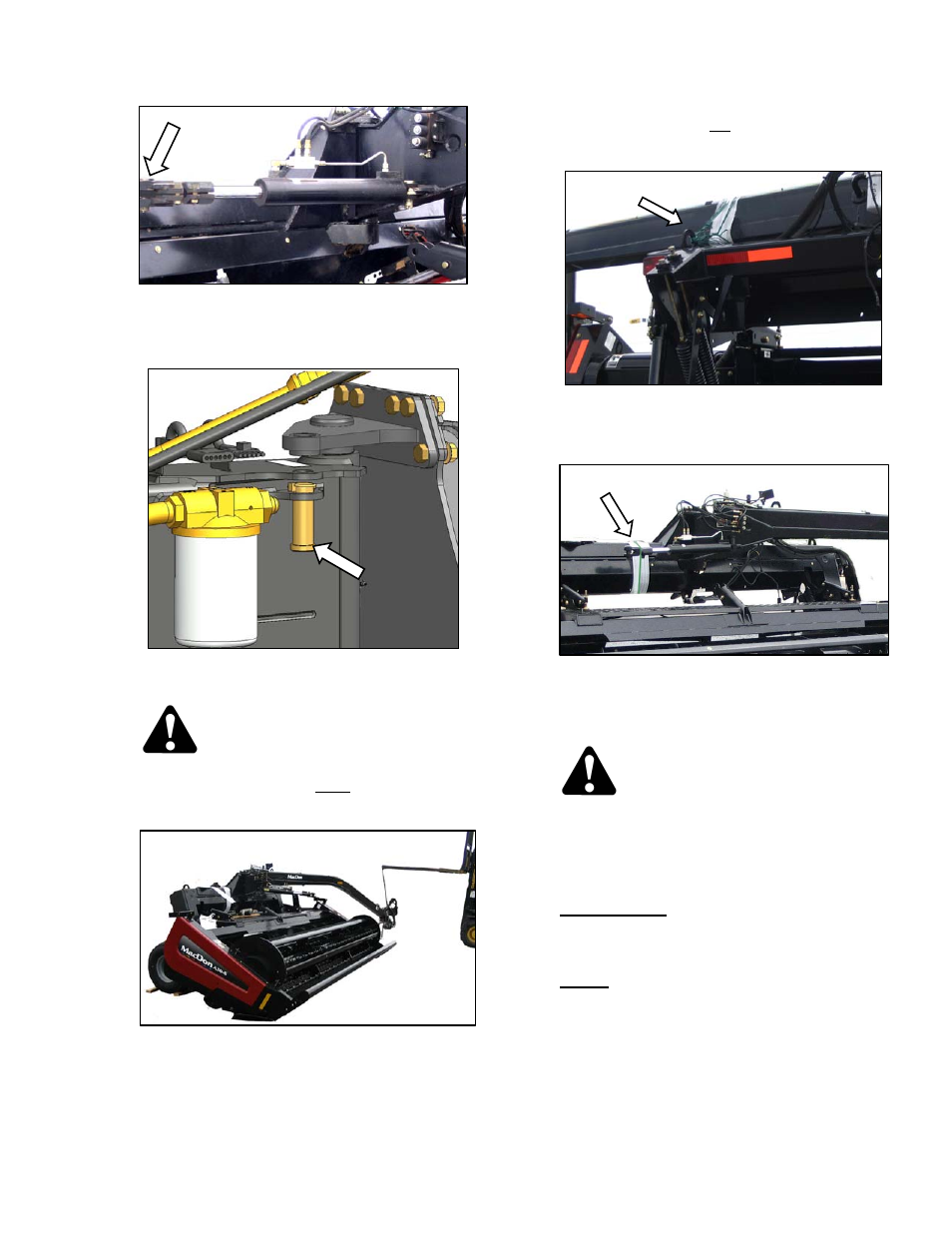

g. Remove pin at rod end of APT steering cylinder,
and move cylinder away from frame. Re-insert
pin in clevis.
h. Ensure temporary transport lock pin is in storage
location.
WARNING
To avoid tipping over, the header must be
resting on the ground prior to swinging the
APT.
i. Swing APT to the left as far as possible without
damaging hydraulic lines.
IMPORTANT
The APT must not widen the shipping
package.
j. Secure APT to frame hook to prevent
movement. Use cardboard or suitable material
under the tie to protect paint.
k. Secure the steering cylinder to the frame with
wire. Wrap tie around clevis, and use cardboard
or suitable material under the tie to protect paint
on the frame.
CAUTION
Equipment used for unloading must meet or
exceed the requirements specified below.
Using inadequate equipment may result in
chain breakage, vehicle tipping or machine
damage.
Lifting Vehicle:
Minimum Lifting Capacity: 8500 lb (3865 kg)
Minimum Lifting Height: 15 ft (4.5 m)
Chain:
Type: Overhead Lifting Quality (1/2 in)
Minimum Working Load: 5000 lb (2270 kg)
(continued next page)
