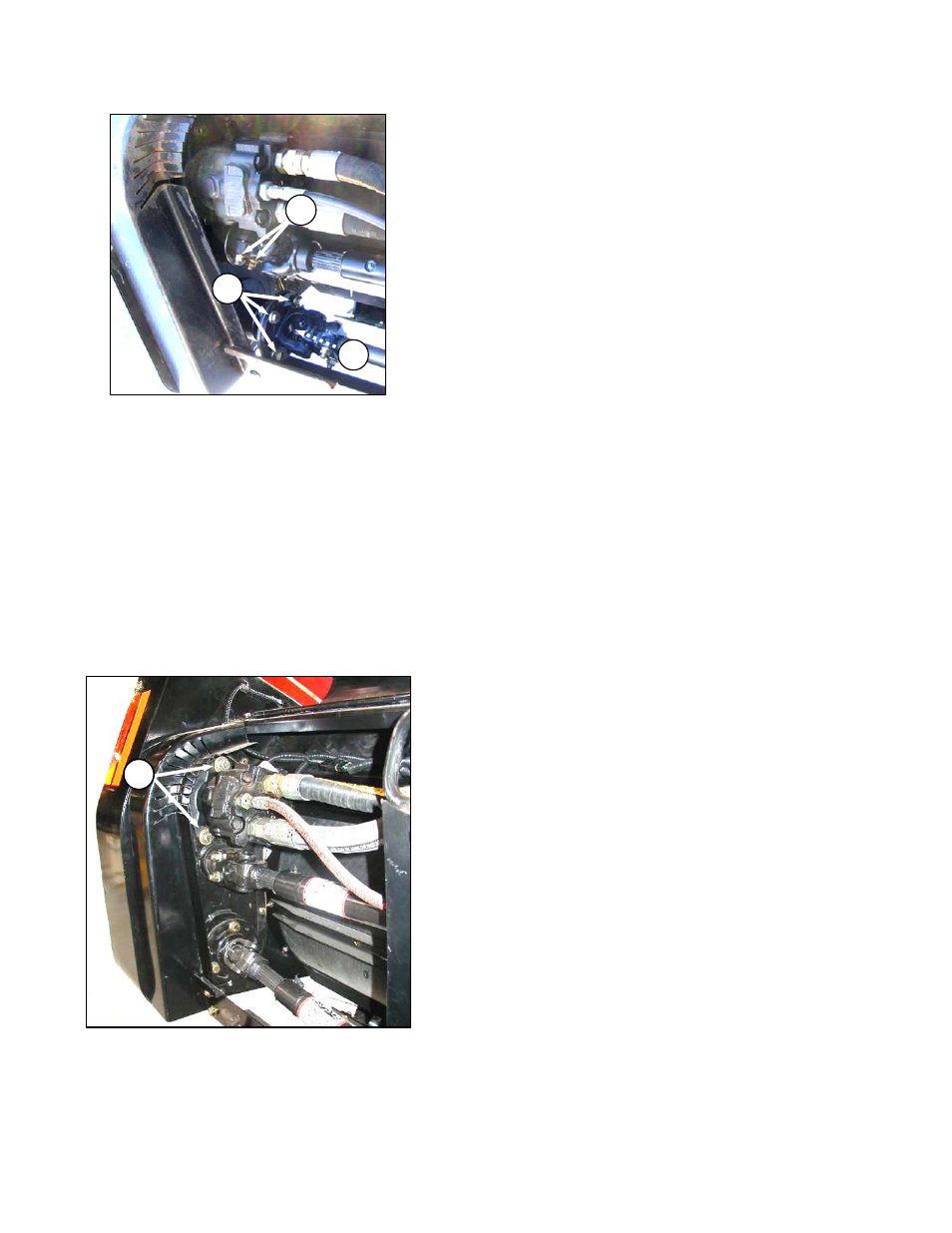

g. Slide upper roll driveline onto gearbox as shown.
Install and tighten two bolts and nuts (O).
Torque to 75 ft·lbf (102 N·m).
h. Attach lower roll driveline flange onto gearbox
flange using four bolts and nuts (P).
i. Adjust roll timing. Refer to Section 6.17.12.2
Roll Timing and Alignment.
j.
Clean off excess sealant from motor flange and
gearbox face.
k. Apply light coat of silicone to motor flange, and
position motor on gearbox as shown until
mounting holes are aligned, and pinion engages
gear in gearbox.
l. Install bolts (Q) and washers, and torque to
75 ft·lbf (102 N·m).
m. Re-connect hoses to motor.
n. Close all shields before engaging header.
P
O
P
Q
