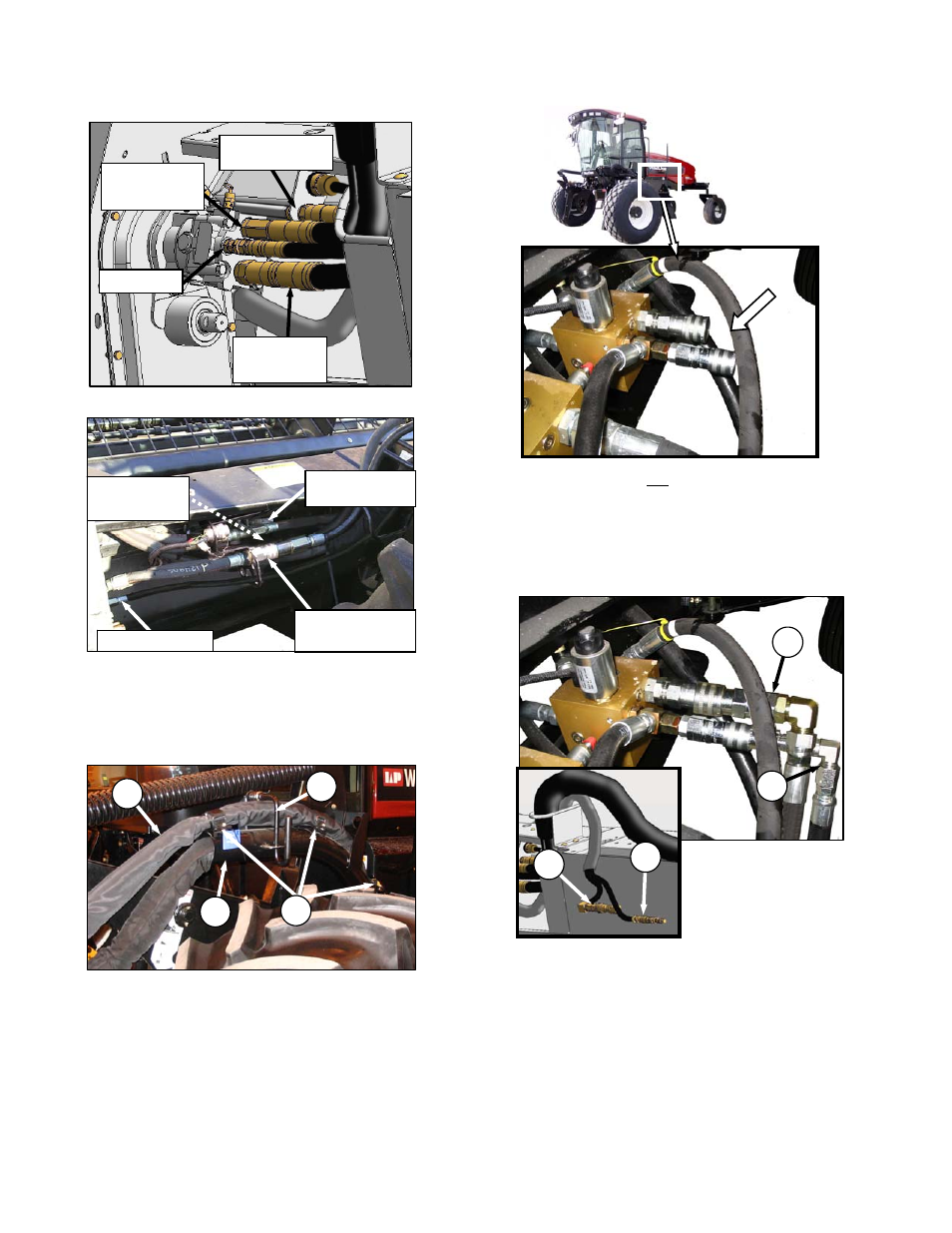

j. Push hose connectors onto mating receptacles
(as shown) until collars on receptacles snap into
lock position.
k. Route auger return and reel pressure hose
bundle (H) from header to windrower, and locate
bundle above existing hose support (K) (as
shown).
l. Secure with three straps (L), and lower lever (D).
m. If valve blocks are not configured (as shown),
install required fittings as described in A30-S
and A40-D Auger Self-Propelled Windrower
Header Unloading and Assembly Instructions –
MD Part #169078 that was supplied with your
A40-D header.
n. Push auger/reel pressure (A) and auger/reel
return (B) hose couplers onto mating
receptacles on valve block, until collar on
receptacle snaps into lock position.
(continued next page)
B
A
B
A
H
K L
D
STANDARD HEADER
KNIFE and
CONDITIONER
PRESSURE
CASE DRAIN
KNIFE and
CONDITIONER
RETURN
REEL and AUGER
PRESSURE
GRASS SEED HEADER
KNIFE PRESSURE
(FEMALE FITTING
AT HEADER)
KNIFE RETURN
(MALE FITTING
AT HEADER)
CASE DRAIN
AUGER and REEL
PRESSURE
