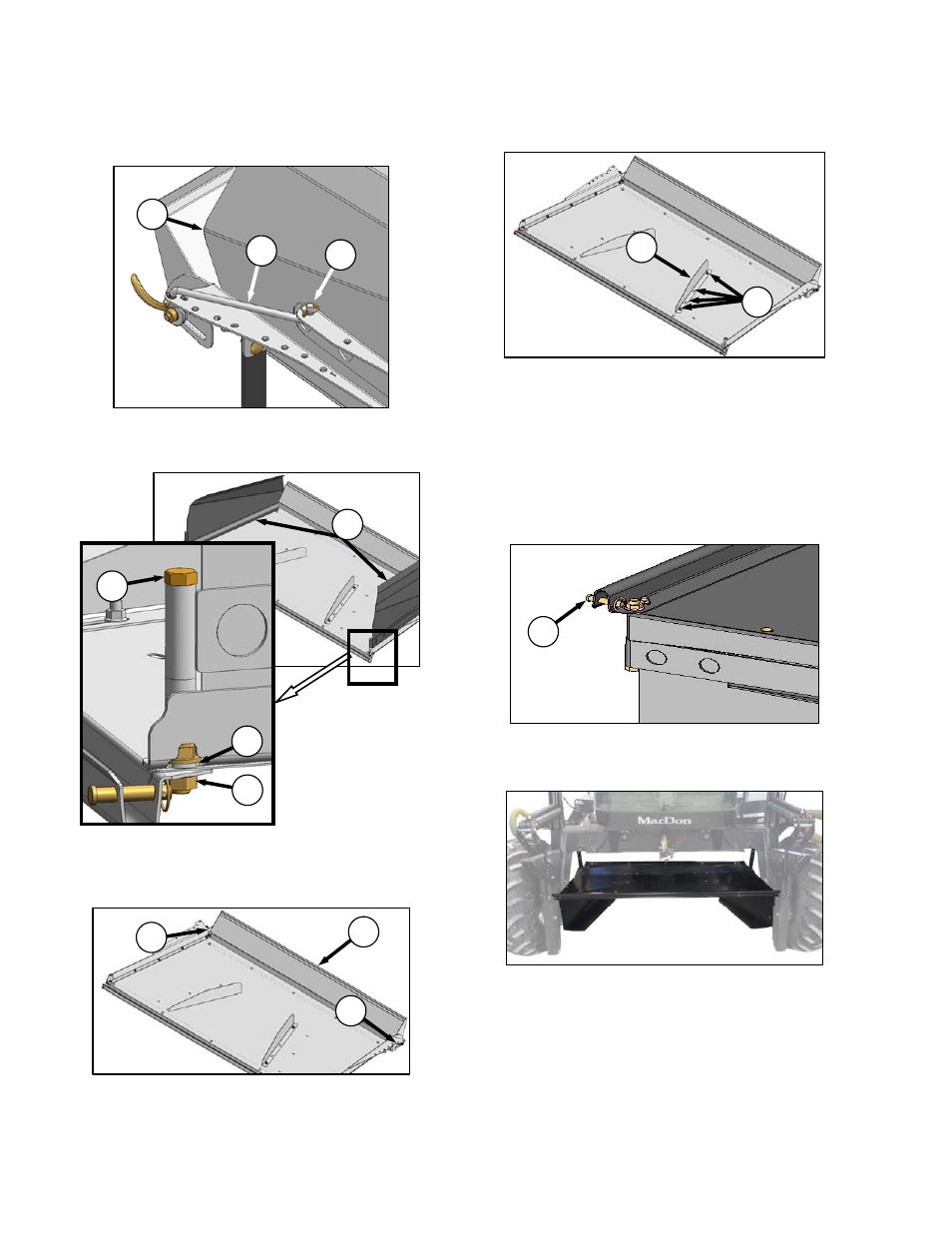

7.13.3 Disassemble Forming Shield
a. Invert forming shield onto top.
b. Remove lynch pin (A) from adjuster rods (B),
and disassemble rods from side deflectors (C).
c. Disassemble nut (D) from bolt (E), and lift
deflector (F) and washer (G) off forming shield.
Repeat for other deflector.
d. Disassemble locking handles (H), and remove
bolts.
e. Disassemble fluffer shield (J) from forming
shield cover.
f. Remove bolts (K) to remove deflector fins (L)
from cover.
7.13.4 Assemble Forming Shield
Reverse the procedure in Section 7.13.3
Disassemble Forming Shield.
7.13.5 Install Forming Shield
a. Remove two clevis pins (M) from forming shield
forward end.
b. Position forming shield under the windrower
frame.
(continued next page)
