SECTION 6 OPERATION
169000 / 169040
45
Revision E

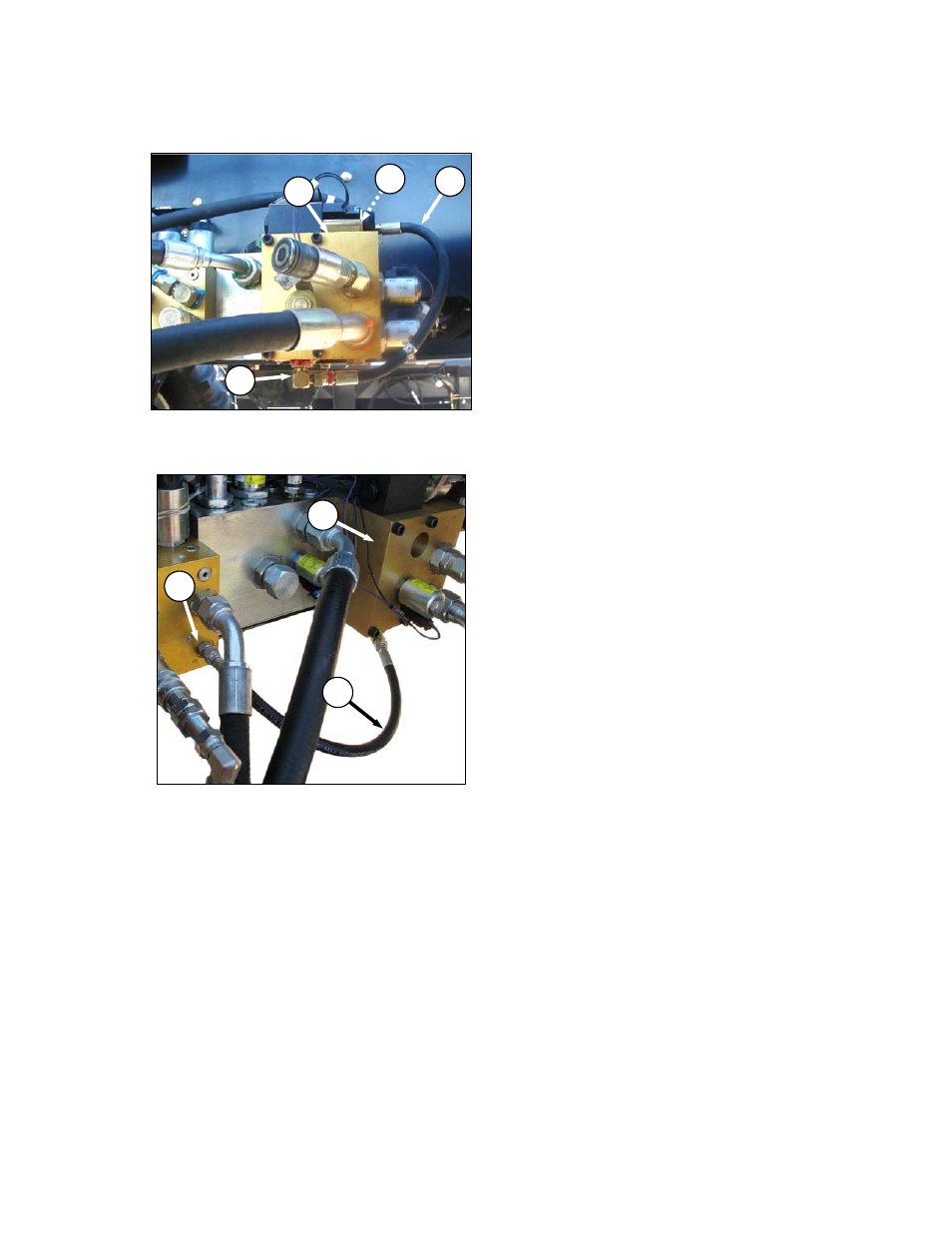

c. To route hose (B) from A30-S position to A40-D
position:
1. Disconnect jumper hose (B) at 90 ° fitting in
port R4.
2. Rotate 90 ° fitting (C) under reverser valve
block (A) so that hose can be routed to port
C2 on header drive valve block.
3. Remove cap from port C2 fitting on header
drive valve block.
4. Connect jumper hose (B) to port C2 fitting
on header drive valve block.
5. Install cap removed in step 3. onto 90 ° fitting
in port R4 on reverser valve block (A).
d. Move LH maintenance platform to normal
operating position.
B R4
A
C
C2
B
A
