SECTION 6 OPERATION
169000 / 169040
46
Revision E
6.7 HEADER DETACHMENT: SELF-
PROPELLED
CAUTION
To prevent accidental movement of
windrower, shut off engine, engage parking
brake, and remove key.

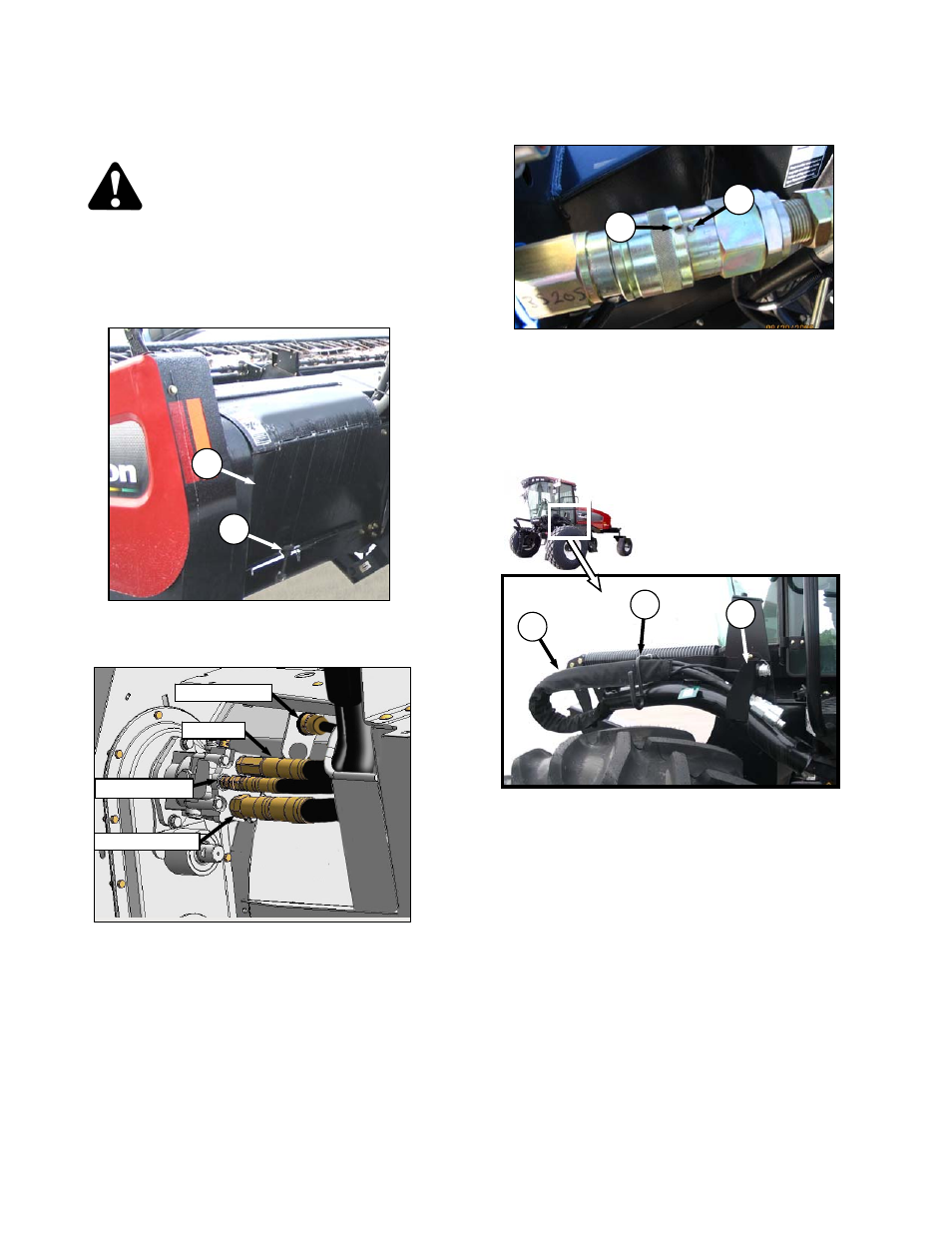

6.7.1 A30-S Detachment
a. Disengage rubber latch (A), and lift driveline
shield (B) to open position.
b. Disconnect electrical connector by turning collar
counterclockwise, and pulling connector to
disengage.
c. Disconnect hoses from hydraulic motor as
follows:
1. Line up slot (C) in collar with pin (D) on
connector.
2. Push collar toward pin, and pull connector to
disengage.
3. Install caps on connectors and hose ends (if
equipped).
d. Move hose bundle (E) from header, and locate
on windrower LH side with hose ends in support
(F) and under lever (G).
e. Rotate lever (G) clockwise, and push to engage
bracket.
f. Locate electrical harness through support (F),
and attach cap to electrical connector.
g. Close header driveline shield, and move
windrower platform to closed position.
h. Check to ensure hoses and electrical harness
clear tire.
i. Detach header from windrower. Refer to your
Self-Propelled Windrower Operator’s Manual for
procedures for mechanically detaching the
header from the self-propelled windrower.
A
B
G
F
E
RETURN
CASE DRAIN
HEADER DRIVE
ELECTRICAL
D
C
