MacDon A40-D User Manual
Page 154
SECTION 7 MAINTENANCE AND SERVICING
169000 / 169040
152
Revision E
7.10.2.4 Tine Replacement: Tine Bar Extension -
Section Z

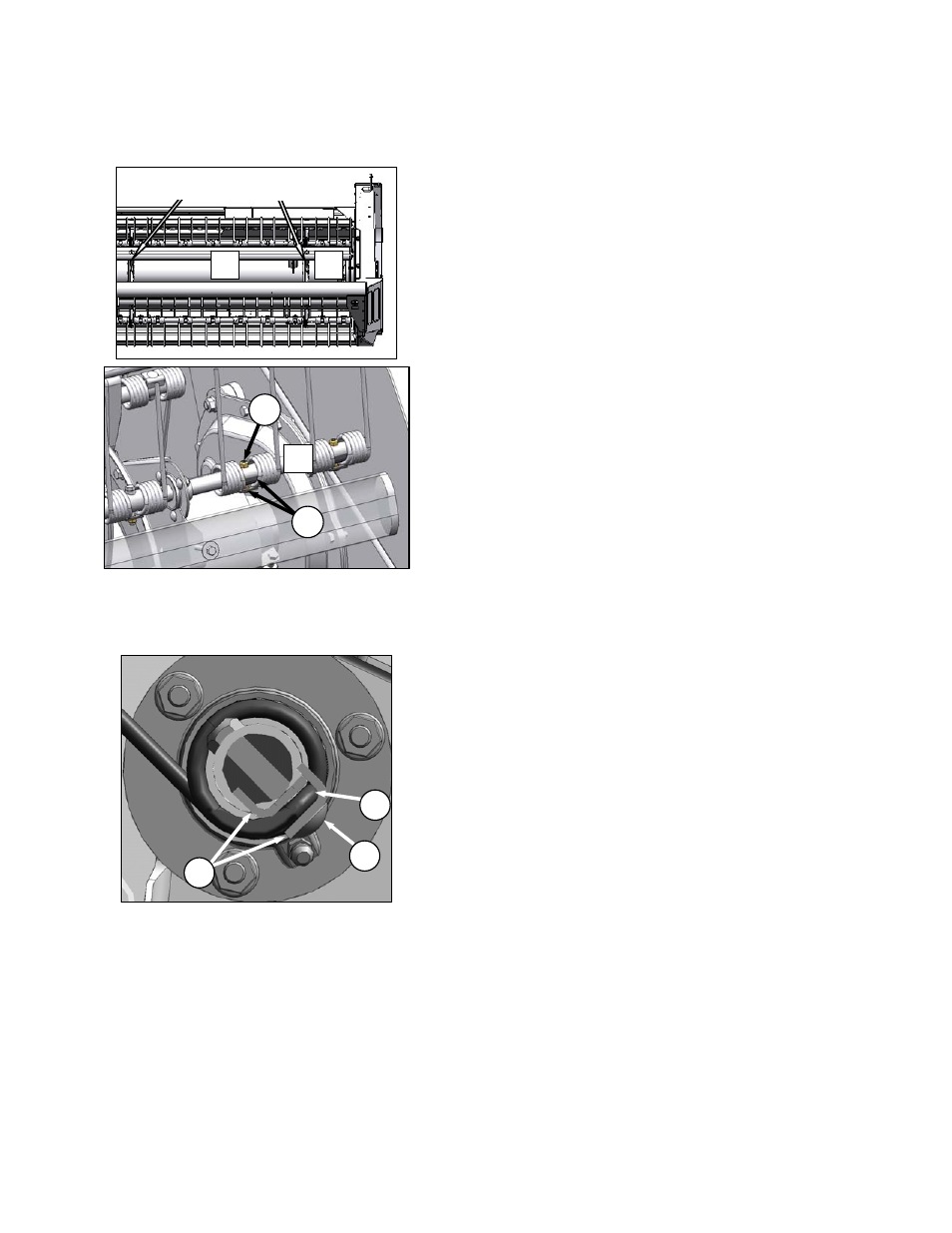

a. Remove bolt (F) and keepers (G) on tine to be
replaced, and slide tines off tine bar.
b. Install tines on tine bar, and secure with bolt (F)
and two keepers (G). Tine (H) must be clamped
between keepers (G). Install nut with flat side
against tine bar extension.
DISC #4
DISC #3
Z
Y
DISC #4
F
G
Z
G
F
H
