SECTION 6 OPERATION
169000 / 169040
74
Revision E

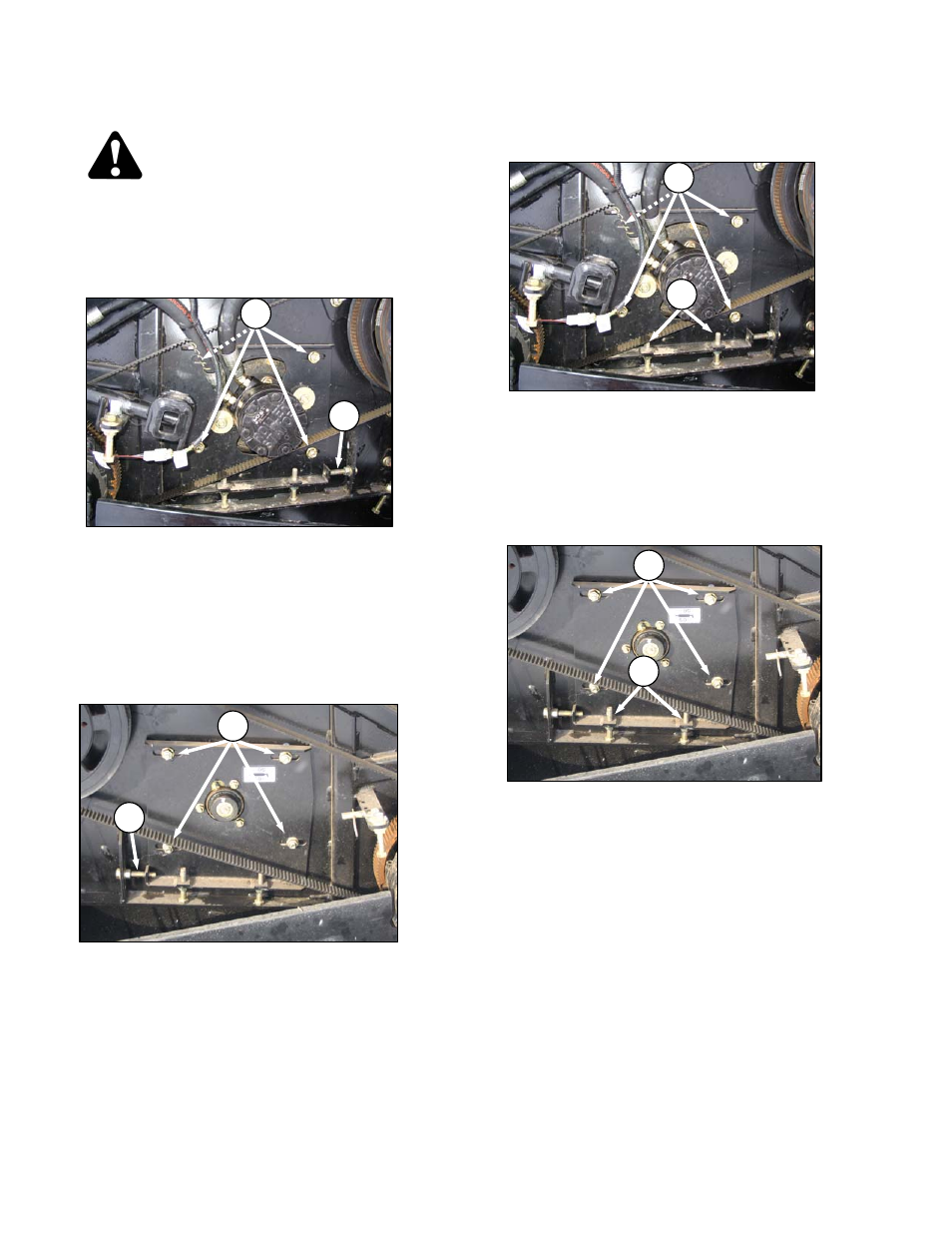

6.17.4.5 Auger Fore-Aft Adjustment: A40-D
CAUTION
To prevent accidental movement of
windrower, place all controls in NEUTRAL or
in PARK, engage park brake (if applicable),
shut off engine, and remove key.
a. Open LH endshield.
b. Loosen four nuts (A).
c. Loosen jam nut on adjuster bolt (B), and turn
bolt (B) to adjust auger fore-aft position.
d. Tighten jam nut.
e. Tighten nuts (A).
f. Open RH endshield.
g. Loosen four nuts (C).
h. Loosen jam nut on adjuster bolt (D), and turn
bolt (D) to adjust auger fore-aft position.
i. Tighten jam nut.
j. Tighten nuts (C).
k. Close shields before engaging header.
6.17.4.6 Auger Vertical Adjustment: A40-D
a. Open LH endshield.
b. Loosen four nuts (E).
c. Loosen jam nuts on adjuster bolts (F), and turn
bolts (F) to adjust auger vertical position.
d. Tighten jam nuts.
e. Tighten nuts (E).
f. Open RH endshield.
g. Loosen four nuts (G).
h. Loosen jam nuts on adjuster bolts (H), and turn
bolts (H) to adjust auger vertical position.
i. Tighten jam nuts.
j. Tighten nuts (G).
k. Close shields before engaging header.
D
C
B
A
E
F
G
H
