FLASHING PROFILES ACCESSORIES
4"
4"
6 5/8"
5 1/4"
2"
100
o
o
160
SNAP-LOC
SCULPTURED GUTTER
(For slopes greater than 1:12 see page 24)
3/8"
7/8"
3/4"
1"
SSR GUTTER
SUPPORT
GUTTER DRIP
Hem
4 1/2"
3"
1 1/2"
Hem METAL INSIDE CLOSURE
EAVE PLATE
STITCH SCREW XL
SELF DRILLER XL
SELF DRILLER N/W
POP RIVET
DOUBLE BEAD TAPE SEALANT
TUBE SEALANT
CONTACT METAL SALES FOR INFORMATION ON
INSTALLING OVER SOLID SUBSTRATE.
In locations where heavy rainfall
or severe ice and snow may occur,
Metal Sales' standard gutters may
not be suitable for use.
CAUTION

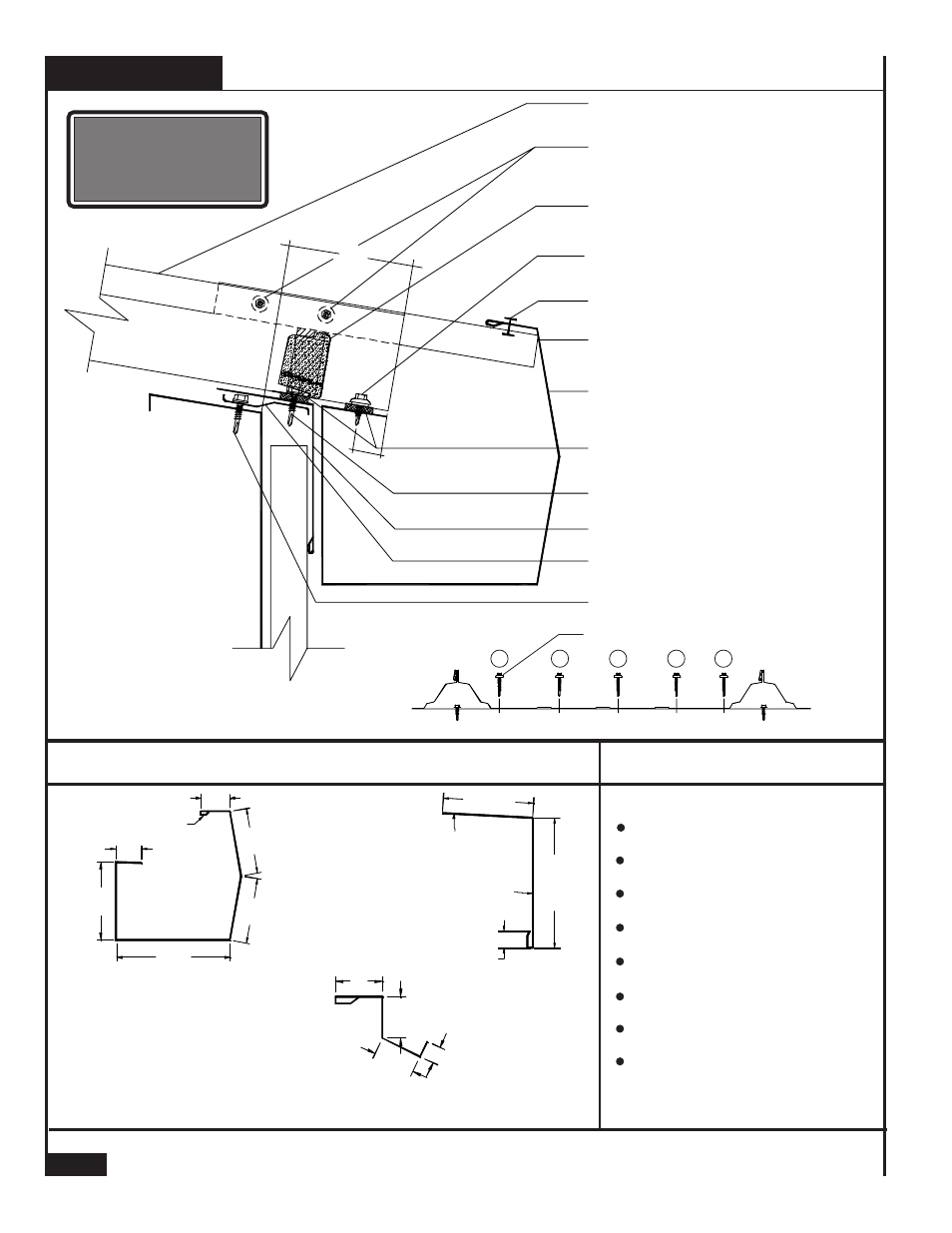

GUTTER WITH GUTTER DRIP DETAIL
SNAP-LOC 24 PANEL
SELF DRILLER N/W (1'-0" o.c.)
METAL INSIDE CLOSURE
SELF DRILLER XL
SSR GUTTER SUPPORT
POP RIVET
SNAP-LOC
SCULPTURED GUTTER
SELF DRILLER N/W
GUTTER DRIP
EAVE PLATE
FASTENING PATTERN SEQUENCE
3 4 5 2 1
SELF DRILLER XL(5 per panel)
DOUBLE BEAD TAPE SEALANT (Around I/S
Closure And Cont. Across Gutter Flashing)
STITCH SCREW XL
(Use Factory Pre-Punched Holes) X
1"
X = Wall Panel + 2.25"
Specify
Angle
Specify
Angle
