INSTALLATION OF RIDGE FLASHING
(CONT.)
4. If two or more SSR Ridge flashings are required, apply a continuous strip of Double Bead Tape
Sealant over the end of the previously installed ridge flashing 1 /
2
" in from the end of the
flashing.
5. Install the next SSR Ridge flashing lapping the previously installed flashing by 2".
6. Place eight (8) #
1 /
4
-14 x 7 /
8
Stitch XL screws where the ridge flashings lap. Fasteners are located
where the Double Bead Tape Sealant is applied.
7. Continue fastening the SSR Ridge flashing to the Metal Outside Closures as before.
3. Attach the SSR Ridge flashing to the Metal Outside Closure with # 1 /
4
-14 X 7 /
8
" Stitch XL screws
spaced 12" o.c.

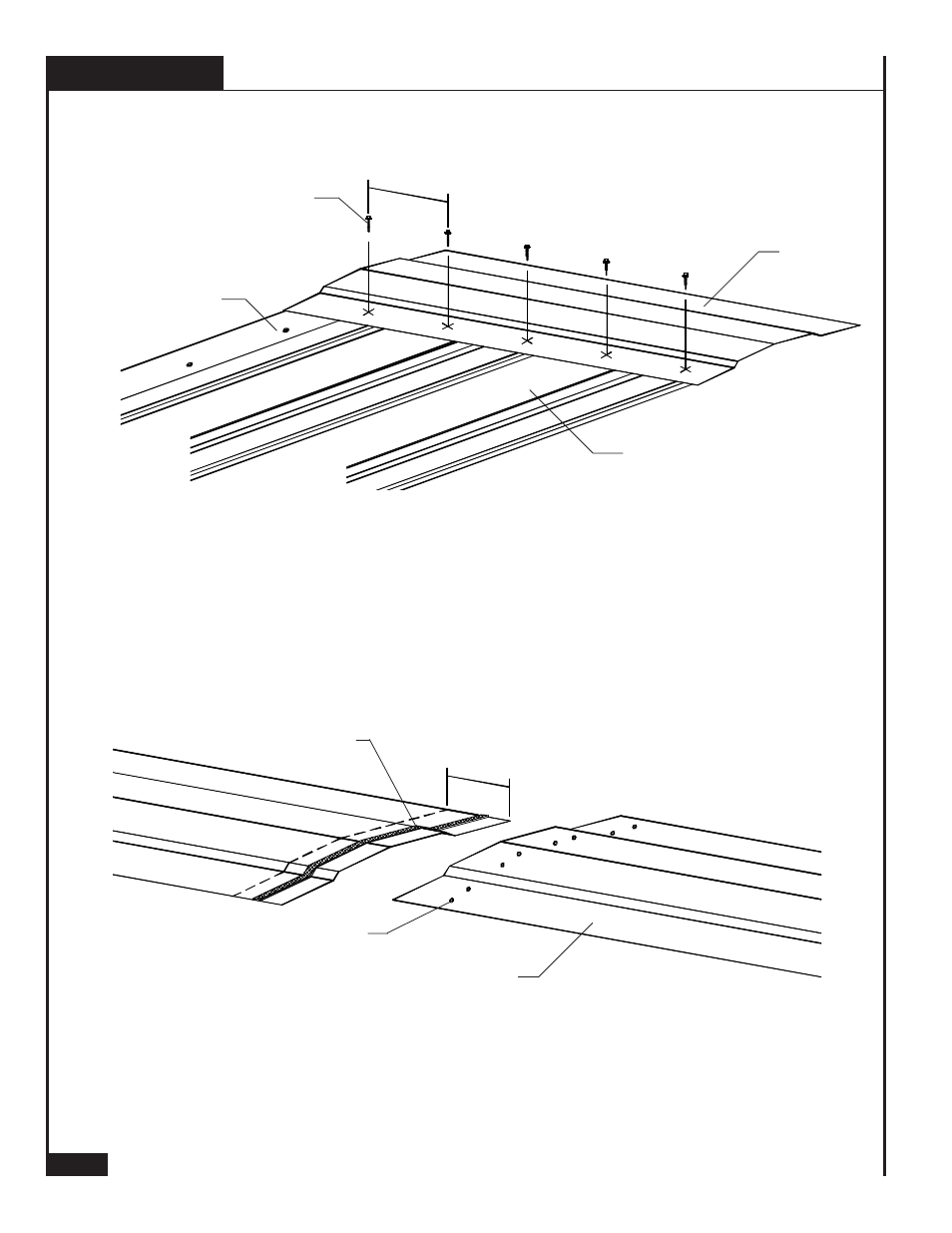

DOUBLE BEAD
TAPE SEALANT
# 1 /
4
- 14 x 7 /
8
" STITCH XL
SSR RIDGE
12"o.c.
# 1 /
4
-14 x 7 /
8
" STITCH XL
SNAP-LOC 24 PANEL
SSR SCULPTURED
RAKE (OFF MODULE)
SSR RIDGE
8. When using a SSR Ridge flashing, the ends of the ridge where the flashing meets the rake must
be closed off. In most cases a closure can be field fabricated from excess material to fit the gap.
2"
