INSTALLATION OF RAKE FLASHING
RAKE FLASHING
SSR SCULPTURED RAKE (OFF MODULE) SSR SCULPTURED RAKE
STEPS
1. The SSR Sculptured Rake (Off Module) flashing requires the use of a SSR Rake Cleat flashing.
For installation of the SSR Rake Cleat, run a continuous strip of Double Bead Tape Sealant along
the top edge of the female leg on the starting panel and along the top edge of the field formed leg
of the terminating panel.
2. Position a SSR Rake Cleat over the Double Bead Tape Sealant and install #12-14 Self Driller XL
screws 12" O.C. through the Rake Cleat, Sealant, roof panel, and the vertical leg of the Floating
Rake Angle.
3. Once the SSR Rake Cleat is installed, apply a continuous strip of Double Bead Tape Sealant
along the top of the SSR Rake Cleat.

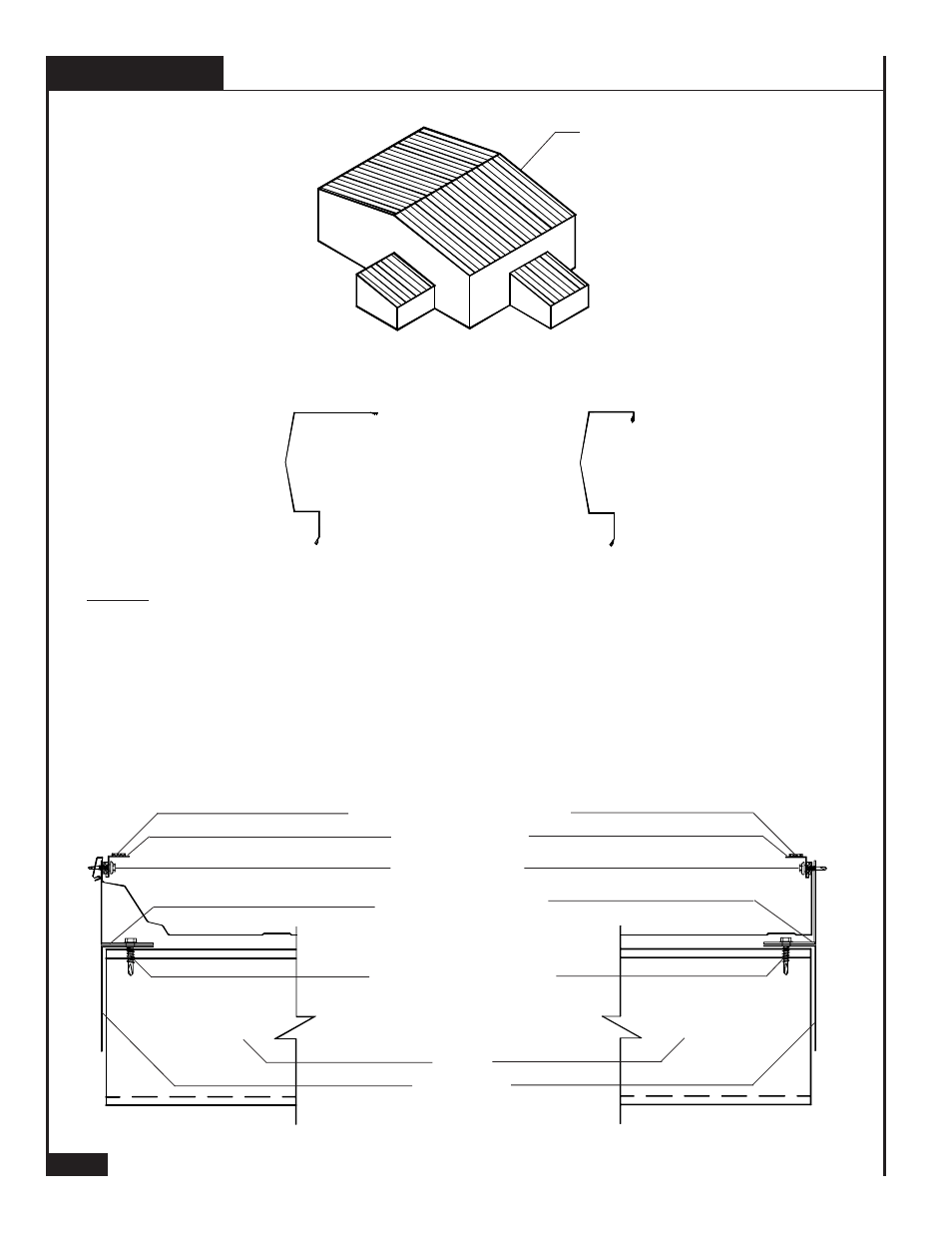

SHOULDER SELF DRILLER
RAKE ANGLE
PURLIN
DOUBLE BEAD TAPE SEALANT
SSR RAKE CLEAT
SELF DRILLER XL
FLOATING RAKE ANGLE
ON MODULE OFF MODULE
The rake flashing should not be installed until the endwall panels have been installed.
The following procedures are based on installing the SSR Sculptured Rake (Off Module)
flashing.
