SNAP-LOC 24 INSTALLATION OF PANEL
(CONT.)

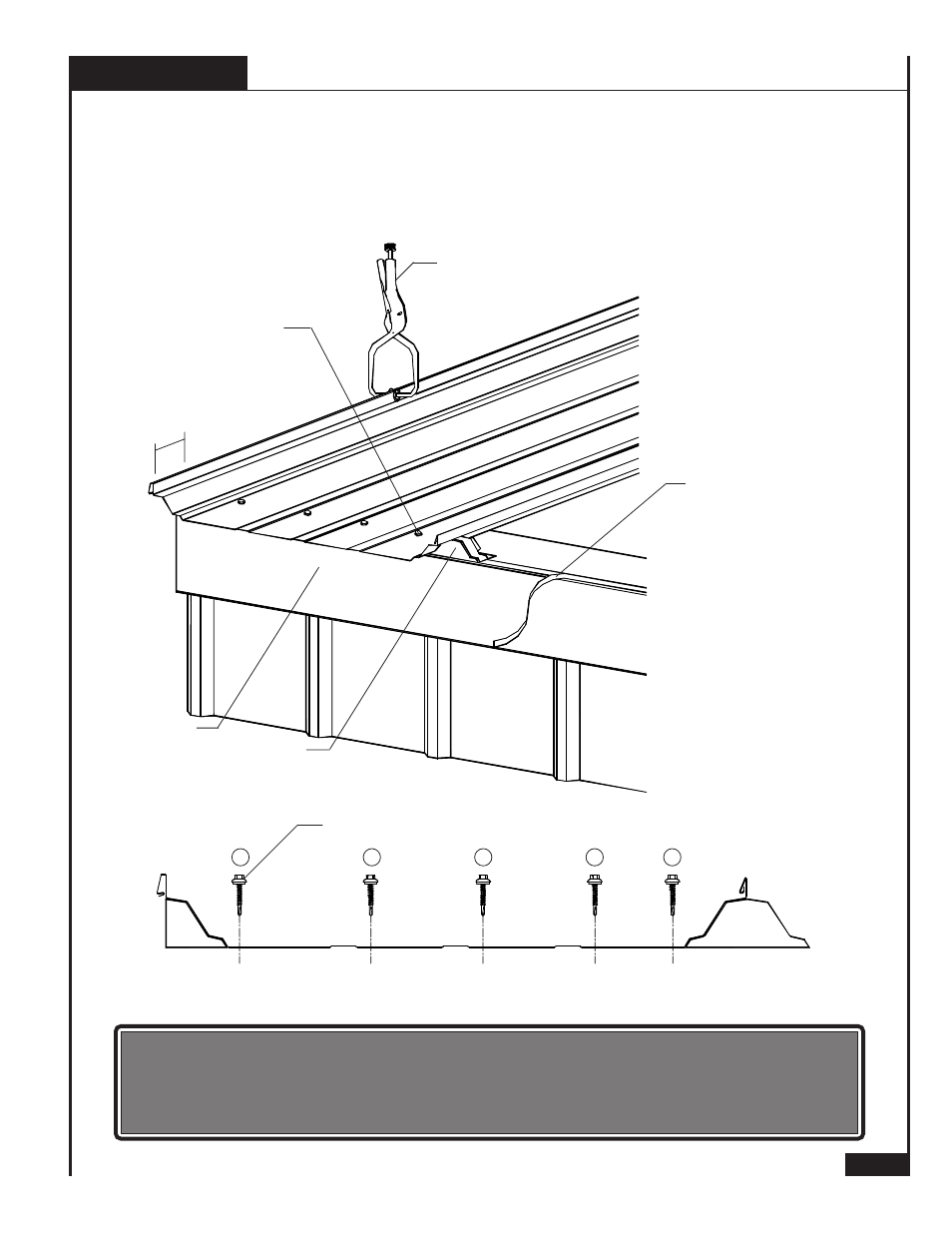

4. Use a "C" vice grip to clamp the panel against the vertical leg of the Floating Rake Angle.
5. Recheck the panel overhang dimension at eave, peak, and endlap (if required), and adjust if
necessary.
6. Fasten panel to the Gutter Drip flashing and Metal Inside Closure using six (5) #12-14 Self Driller
XL screws. Fasteners must penetrate the Eave Plate below the Gutter Drip and the Metal Inside
Closure.
2 5 3 4 1
#12-14 SELF DRILLER XL
FASTENING PATTERN SEQUENCE
GUTTER DRIP
"C" VICE GRIPS
#12-14 SELF DRILLER XL
PEEL BACK DOUBLE BEAD
TAPE SEALANT PAPER
CAUTION
Do not attach the Snap-Loc 24 panel at both the eave and peak ends. This will restrict the
thermal movement of the panel. Panel runs with endlaps must be fastened to the
substructure at the eave.
3"
METAL INSIDE CLOSURE
